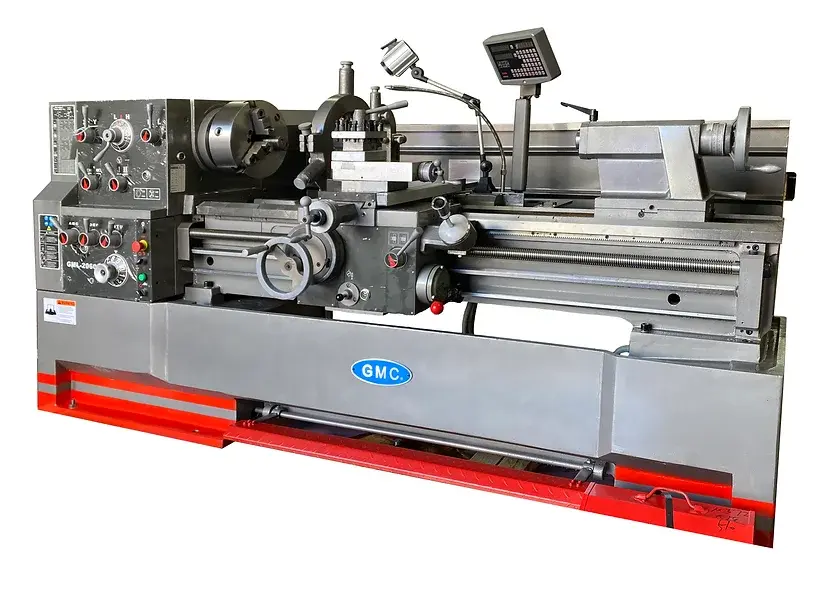

20″ x 80″ Bed Gap Metal Lathe | 3-1/8″ Bore | 2-Axis DRO

Bed Gap Metal Lathe with a big spindle bore 3-1/8″. Precise, robust, and fully equipped with a 29 swing in gap. Whether you’re in a machine shop or looking to replace your old workhorse in your home garage, this metal lathe is for you. It comes standard with a fully assembled metal stand with two cabinets on each side to keep your tooling and accessories stored.
Product description

Max. swing over bed: 20″
Max. length of workpiece: 80″
Max. swing over cross slide: 12 1/2″
Max. Swing in gap: 29-1/8″
Width of Bed: 12″
Effective length in gap to spindle: 6″
Effective length in gap to chuck jaws: 3 1/2″
Spindle bore: 3 1/8″ | D1-8
Taper of spindle center: M.T. #7
Spindle speeds: 25-1,800 rpm / 12 steps
Longitudinal feeds: 0.0011-0.063 IPR, 42 kinds
Cross feeds: 0.0003-0.018 IPR, 42 kinds
Inch threads: 2-112 TPI, 60 kinds
Metric threads: 0.1-14 mm , 41 kinds
Diametral Pitch threads: 4-112DP , 50 kinds
Module threads: 0.1-7mm, 34 kinds
Max. travel of top slide: 5″
Max. travel of cross slide: 11 1/4″
Spindle length w/o chuck
Leadscrew length X TPI: 17-1/2″
1 1/4″ x 4 TPI
Diameter of tailstock quill: 2-3/8”
Max. travel of tailstock quill: 5-1/8”
Taper of tailstock quill center: MT4
Main motor: 10 HP 3 Ph.
Prewired: 220VAC / 35A
Optional: 440VAC / 20A
Coolant pump: 1/8 HP 3 Ph.
Prewired: 220VAC
Optional: 440VAC
Net weight: 6,350 lbs.
Overall dimensions, LxWxH: 128″ x 43″ x 59″
