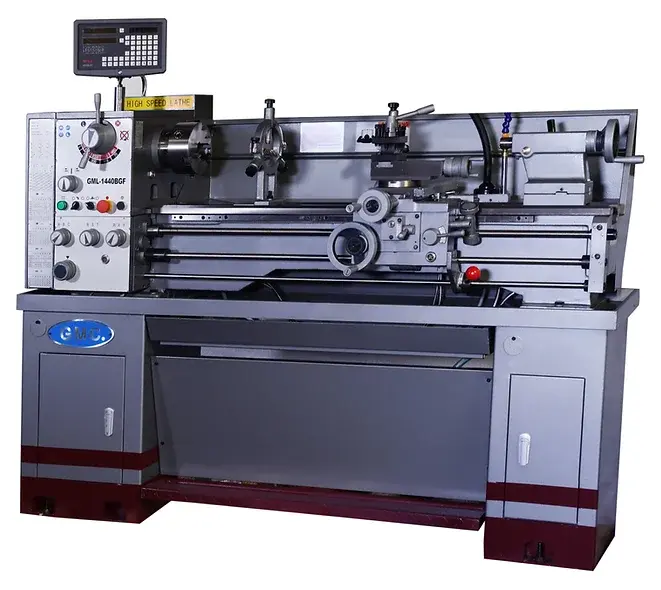

14″ x 40″ High Speed Geared Head Precision Toolroom Metal Lathe

Our 14″x40″ bench lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. Our lathes are robust, reliable, easy to use, convenient to repair, precise, quiet, and have no vibration.
Product description

L A T H E C A P A C I T Y: L A T H E C A P A C I T Y
Max. Swing Over Bed: 14”
Max. length of workpiece: 40”
Max. length of cutting: 34”
Max. Swing Over Cross Slide: 8.25”
Center Height: 7”
Distance between centers: 40”
Bed Width: 7.5”
S P I N D L E: S P I N D L E
Spindle Nose: D1-4 Camlock
Spindle Bore: 1.5”
Spindle Taper Nose: MT5 (Morse Taper #5)
Spindle Taper Sleeve: MT3 (Morse Taper #3)
Range of Spindle Speeds: 70-2,000 RPM
Low Spindle Speeds: 70/115/190/300 RPM
High Spindle Speeds: 460/755/1255/2000 RPM
Steps of Spindle Speed: 8 steps
F E E D: F E E D
Range of Longitudinal Feeds: 0.00168” – 0.11750”/rev.
IPR, 24 kinds
Range of Cross feeds: 0.00046” – 0.03231” /rev.
IPR, 24 kinds
T H R E A D I N G: T H R E A D I N G
Imperial Threads QTY. / Speed: 56 / 4-112 TPI
Metric Threads QTY. / Speed: 44 / 0.1-7.0 mm
Diametral Pitch threads QTY. / Speed: 32 / 16-112 DP
Module threads: 34 / 0.1 – 1.75 mm
T A I L S T O C K: T A I L S T O C K
Tailstock Quill Diameter: 1.5”
Tailstock Quill Taper: MT3 (Morse Taper #3)
Tailstock Quill Travel: 4”
A P R O N: A P R O N
Compound Slide Travel: 4.25”
Cross Slide Travel: 7.25”
Cross Feed QTY. / Speed: 0.014 – 0.380mm / rev
Leadscrew Diameter: 7/8”
Feed Rod Diameter: 3/4″
Max. Cutting Tool – 4 Way Tool Post: 5/8”
M O T O R S & E L E C T R I C A L: M O T O R S & E L E C T R I C A L
Main motor: 3 HP Three Phase
Power (prewired voltage): 220VAC
Full-Load Current Rating: 12 Amps.
Minimum Circuit Size: 15 Amps.
Connection Type: Pig Tail; hardwire or add plug
Coolant pump: 1/16HP, 220V, Single Phase
F L U I D C A P A C I T I E S: F L U I D C A P A C I T I E S
Headstock Capacity | Type: 4 Gal. | ISO 32 (eg. Texaco Regal R&O 32 or Mobil DTE Oil Light)
Gearbox Capacity | Type: 1.4 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)
Apron Capacity | Type: 1.2 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)
M A C H I N E D I M S.: M A C H I N E D I M S.
Net Weight (approx.): 1,730 LBS
Overall Dimensions: 70”L x 35”W x 59”H
Shipping Type: Wood Slat Crate
