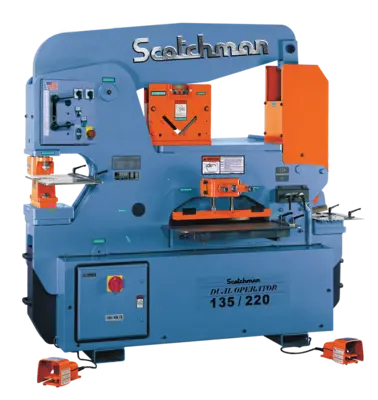

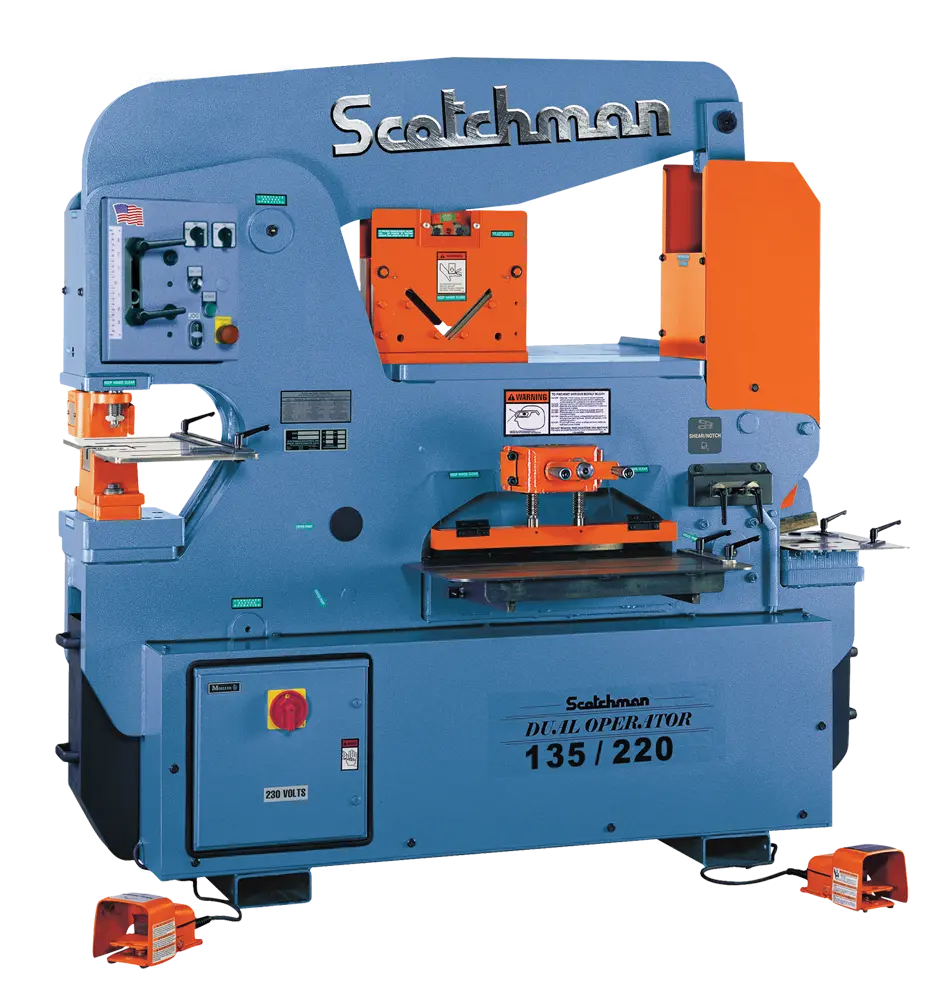

135 Ton Ironworker DO135/220-24M

Dual Operator
Product description
Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
135 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2″ die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4″
Jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Angle shear
Rectangle notcher with table, scale and guides
Flat bar shear with sabre blade
Shear table with miter fence
Tool table work area
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Punching Capacity: 122 mt
42 mm in 25 mm
Special Tooling: 102 mm Max. Dia.
Throat Depth: 305 mm
Flat Bar Shear
(Sabre Blade – Standard): 610 mm
25 mm x 305 mm
19 mm x 508 mm
12 mm x 610 mm
Angle Shear 90 degree: 152 x 152 x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear: 76 mm x 76 mm x 10 mm
102 mm x 102 mm x 12 mm
Brake 12″: 81.6 mt
Brake 24″: 63.5 mt
Open End Brake: 6 mm x 127 mm
Rectangle Notcher: 76 mm x 146 mm x 12 mm
90 degree V-Notcher: 152 mm x 152 mm x 8 mm
76 mm x 76 mm x 12 mm
Notching in Leg of Channel: 152 mm to 254 mm
Channel Shear: 51 mm to 152 mm adj.
Rod Shear
Round (max.)
Square (max.): 6 mm to 32 mm
6 mm to 25 mm
Square Tube Shear: 12 mm to 51 mm
0.105″ / 2.7 mm
Picket Tool: 12 mm, 19 mm, 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 mm x 10 mm
Offset Die Holder: Max. 36 mt
Strokes per minute in light material: 1/4″ stroke
Strokes per minute in heavy material: 3/4″ stroke
Hydraulics: 241/241 bar
Motor Standard: 7.46 kW
Motor Optional: 7.46 kW
Dimensions: L: 211 cm
W: 98 cm
H: 194.5 cm
Shipping Weight (may vary): 2,814 kg
