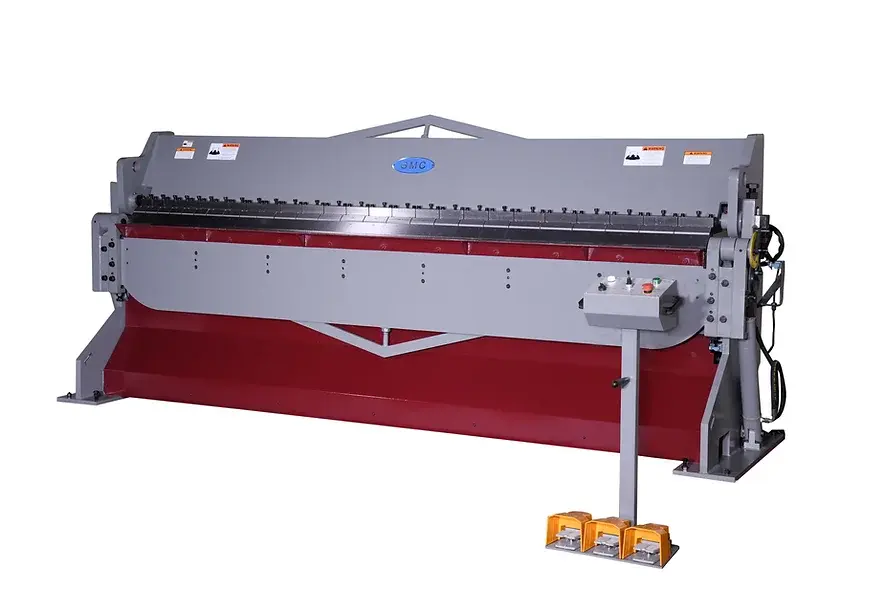

12′ x 14 Ga. Hydraulic Box and Pan Brake

Standard Features
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:

HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Product description

Max Bending Length: 12′
Capacity:
Mild Steel: 14Ga.
Stainless Steel: 16Ga.
Bend Degree: 135
Max. Box & Pan Depth: 6″
Large Beam Opening: 3″
Oil Tank Gal.
Hydraulic oil recomended:: 32 Gal
Shell #68 or equivalent
Main Motor: 10 HP 3 Phase
Prewired: 220VAC 35A
Optional: 440VAC 20A
Machine Weight:
Shipping Weight:: 8,950 lbs.
9,150 lbs.
Overall Dimensions: (LxWxH)
Shipping Dimensions:: 166″ x 46″ x 66″
179″ x 41″ x 67″
