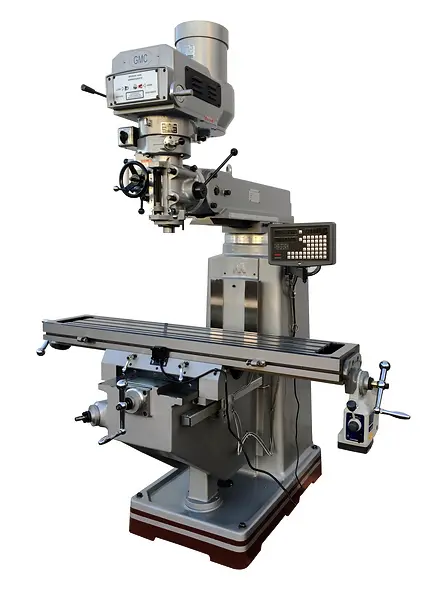

10″ x 54″ Vertical Mill | Metal Milling Machine with 2-Axis DRO

Our 10″ x 54″ metal milling machine aka vertical milling machines come fully equipped with a SINO digital readout and power feed. Our mill machines are rigid, made of “Meehanite” casting; hardened and grounded dovetail guideways. If you’re looking to add a long lasting piece of equipment to your machine shop, this is it. These vertical mills are made to last and we provide parts and service to reduce or eliminate downtime.
Product description

Table Size
Table Load Capacity: 10″ x 54″
750 lbs.
X Axis Travel
X Travel with Power Feed
Y Axis Travel
Z Axis Travel
Spindle Taper Type
AC Spindle Motor
Variable Spindle Speeds: 36 1/2″
33 1/2″
16″
16″
R8
3 HP, 220V/10A – 440V/5A
70-4,300 RPM
Quill (spindle) Diameter: 3 3/8″
Quill (spindle) Travel: 5″
Ram Travel
Table T-Slot Size
Head Swivel, R/H, L/H: 18″
5/8″ x 3 slots
90 degree
Net Weight: 3,250 lbs.
