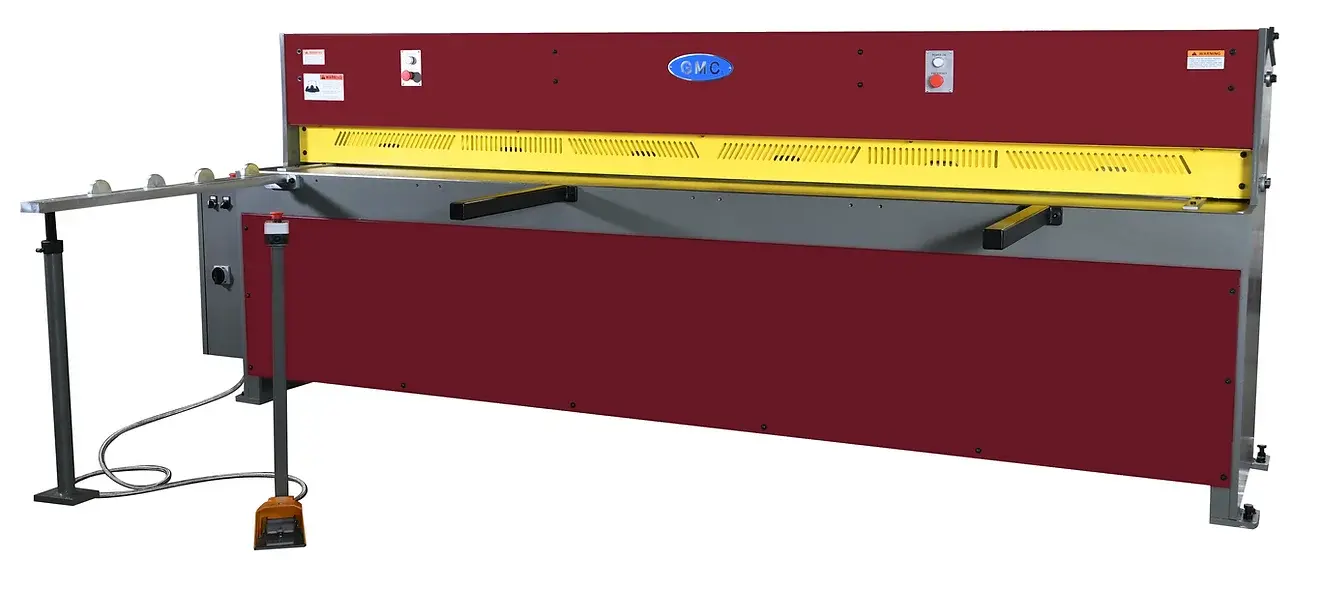

Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
Mechanical Shear Standard Equipment
26” manual back gauge with one side operated handwheel.
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
Product description
Cutting Capacity
Mild Steel
Stainless Steel: 10′ x 14Ga.
10′ x 18Ga.
Blade Lenght: 10’1″
Strokes per minute: 26
Worktable height: 30-1/2″
Front support arm: 24″
Back gauge: 26″ Manual Back gauge
Blade Rake Angle: 2.0 Degree
Main Motor: 7 1/2 HP, 220V/25A – 440V/15A, 3 Phase
Machine weight: 7,280 LBS
Machine dimensions: 147″ x 57″ x 53″
