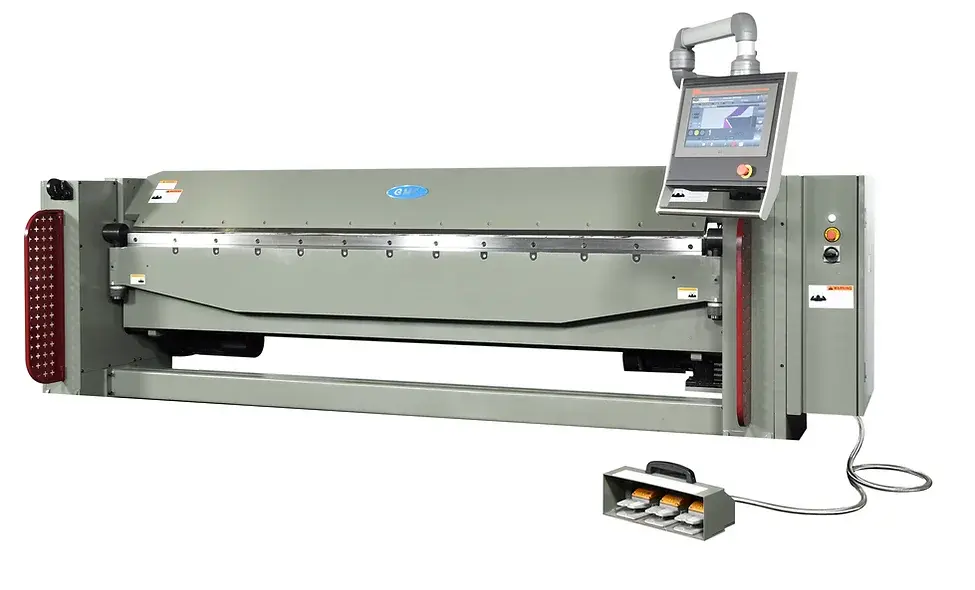

CNC folding machine with an Italian ESA CNC control. 11″ touch screen straight brake. 2000 jobs memory capacity.
Product description
Capacity:
Mild Steel: 14 Ga.
Stainless Steel: 18 Ga.
Close hemming: 22 Ga.
Open hemming: 22 Ga.
Bending Length Capacity: 10’1″
Bend Angle Degree, programmable: 0-135 degree
Hemming capacity, mild steel: 20 Ga.
Hemming capacity, stainless steel: 24 Ga.
Large Beam Opening/clamping opening: 4-7/8″
Min. Reverse Bend: 1/2″
Max, Table Back Gauge Distance: 48-3/8″
Min. Table Back Gauge Distance: 1/2″
Back Gauge Repeatability: 0.0039″
Back Gauge Table Height: 35-3/4″
Motor for Bending Leaf: 4 HP 3 Phase 35A
Prewired: 220VAC
Servo motor for back gauge: 2 HP 3 Phase
220VAC
Clamping Motor: 1 1/2 HP 3 Phase
Prewired: 220VAC
Machine Weight:
Shipping Weight:: 9,850 LBS
10,150 LBS
Machine Size (LxWxH)
Shipping Dimensions:: 168″ x 79″ x 64″
174″ x 80″ x 71″
