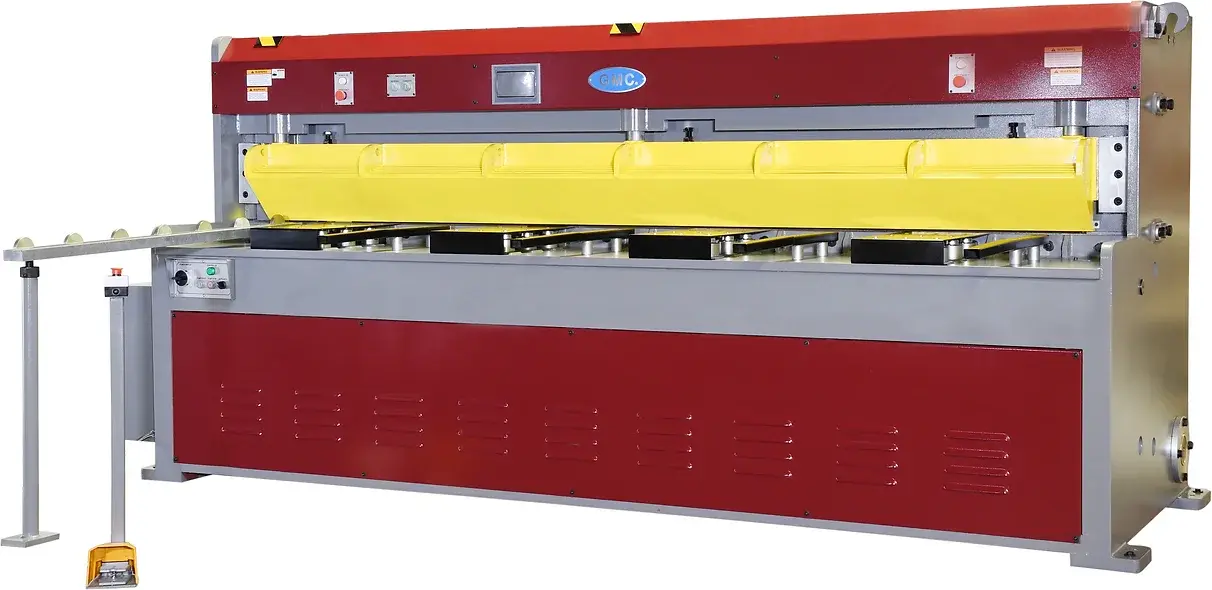

10′ x 1/4″ Hydraulic Metal Shear

This 120″ wide hydraulic shear can handle up to a 1/4″ mild steel. This heavy duty machine will trim 10 foot sheets with ease!
36” go to NC back gauge w/ touch screen
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
4 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
Product description

Cutting capacity:
Mild steel
Stainless steel: 10’ x ¼”
10’ x 10 Ga.
Blade length: 10’2″ = 122″
Strokes per minute: 10-12
Throat depth: 18″
Worktable height: 34 1/2″
Front support arm: 24″
NC Back Gauge: 36″ go to NC powered back gauge with touch screen
Blade rake angle: 2 degree
Oil tank cap.: 53 Gal.
Main Motor

NC Back Gauge: 20 HP, 220V/70A, 3 Phase
440V/35A, 3 Phase (OPTIONAL)

1 HP, 220V, 3 Phase
Machine weight: 13,850 LBS
Machine dimmensions: 181″ x 117″ x 65″ (with back gauge and squaring arm)
