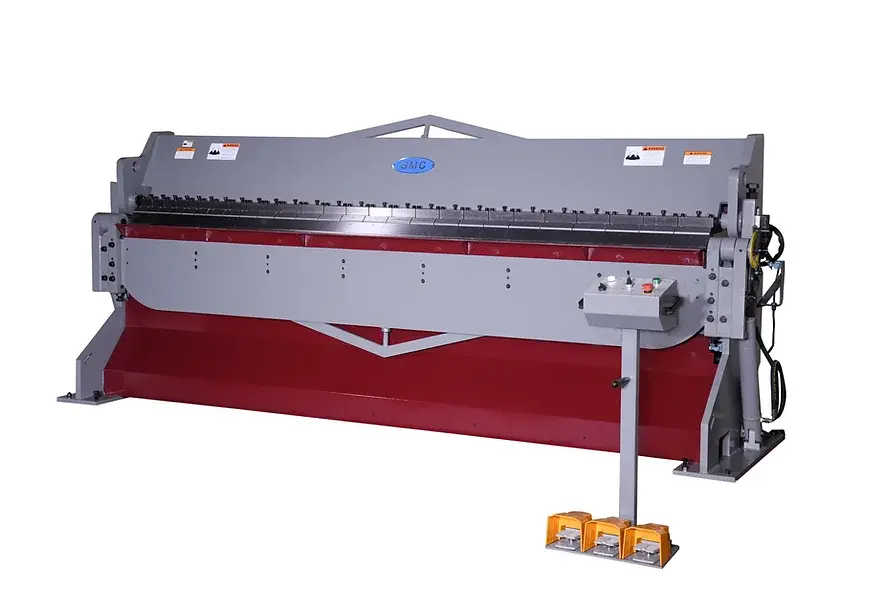

10 ft Sheet Metal Brake, 14 Gauge Mild Steel

10′ x 14Ga. Hydraulic Box and Pan Brake with free angle set-up control 5 HP, 220V/440V, 3PH
Product description

Max Bending Length:: 10′
Bending Capacity:
Mild Steel
Stainless Steel: 14 Ga.
16 Ga.
Hemming max thickness:: 28 Ga.
Bend Degree:: 135
Max. Box Depth:: 6″
Large Beam Opening:: 3″
Manual Back Gauge:: 26”
Oil Tank Gal.: 17 Gal
Hydraulic Oil:: Shell #68 or equivalent
Main Motor: 5 HP 3 Phase
Prewired: 220VAC 20A
Optional: 440VAC 10A
Weight: 6,850 lbs.
Shipping Weight:: 6,950 lbs.
Overall Dimensions: 142″ x 46″ x 66″
Shipping Dimensions:: 153” x 41” x 67”
