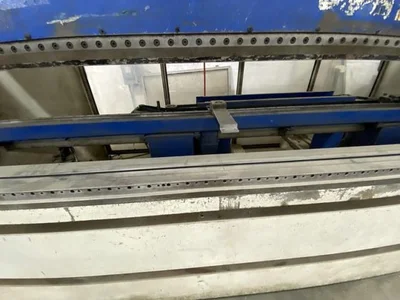

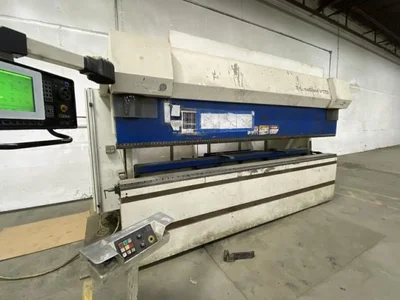

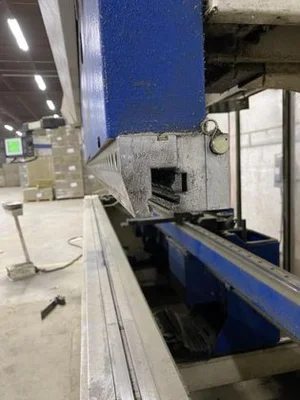

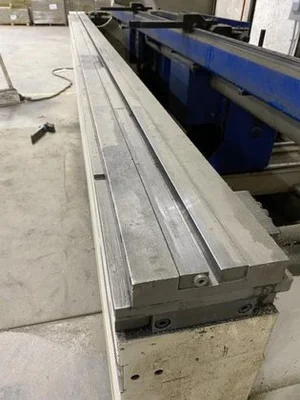

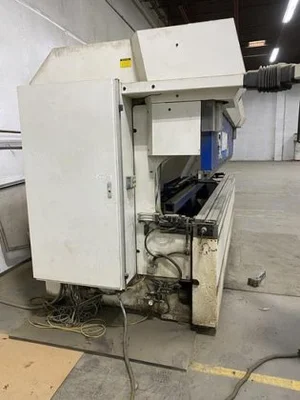

USED TRUMPF PRESS BRAKES TRUMPF TRUMABEND V170

Trumpf Trumabend V170 CNC Press Brake, Delem 4-Axis Control, 187 ton x 160″, Crowning

Equipped With;

– Delem 4-Axis CNC Control

– Crowning
Manufacturer: Trumpf press brakes

Model: Trumpf Trumabend V170

Location: Worcester, MA, USA

Stroke: 14.37″

Capacity: 187 Tons x 160″
Specifications

Condition: used

Year: 1998

Serial number: 887089

Stock number: 4218

Capacity: 187 Tons x 160″

Maximum bending length: 13′ 4″

Distance between housings: 145″

Stroke (adjustable): 14.37″

Distance – floor to bed: 41″

Open height: 21.6″

Closed height: 7.2″

Throat depth: 16″

Advance speed: 472 IPM

Pressing speed: 2 – 24 IPM

Return speed: 320 IPM

Approximate dimensions: 180″ x 84″ x 119″

Approximate weight: 37,000 lbs.
