MODEL -FSG618-SP
PN# A5866003
Age-2002
Equipped with Permanent magnetic chuck
Lube system
Sony D.R.O

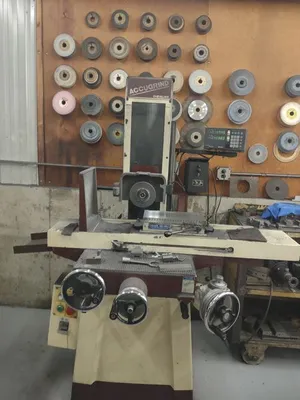

SPARE GRINDING HOLDERS AND MISCELLANEOUS GRINDING WHEELS AS PICTURED
Year Built – 2002

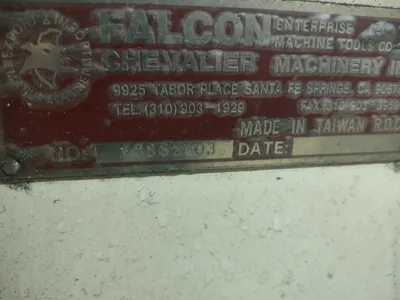

Serial No. A4859002
SPECIFICATIONS:
Table Size…………6″ x 18″
Grinding Length Longitudinal – Maximum…………18″
Grinding Width Crosswise – Maximum…………6″
Grinding Wheel Diameter – Maximum…………8″
Distance from Table Surface to Spindle Centerline – Maximum…………20″
Longitudinal Travel…………19 3/4″
Cross Feed Travel – Maximum…………7″
Cross Feed Travel – Handwheel per Revolution…………0.001″
Vertical Infeed – Handwheel per Revolution…………0.05″
Elevating Handwheel Graduation…………0.0001″
Table Speed (Infinitely Variable)…………16 – 82 FPM
Grinding Wheel Size…………8″ x 1/2″ x 1-1/4″ Bore
Grinding Spindle Speed…………3,450 RPM
Spindle Rated Power…………2 HP
Dimensions – Approximate…………65″ L x 47″ W x 83″ H
Weight – Approximate…………1,800 Lbs.
Chevalier FSG 618 EQUIPPED WITH:
Chevalier Elevating Micro-Feed Device (Increments of 0.000050″)
Sony LH31A-2 Two-Axis DRO
Table traverses on linear ball bearings and hardened and ground guideways
Saddle travels on Turcite-B Coated and hand-scraped double v guideways
Permanently lubricated and sealed cartridge type spindle
2HP dynamically balanced spindle motor
6″ x 18″ Walker Cermax Permanent Magnetic Chuck
Automatic Lubrication System
Halogen Work Light
