The compact design and heavy duty construction makes this our most popular HVAC Duct Coil Line systems. The Programmable Feed handles materials 26 to 18 gauge, 60” wide. We have a wide range of Drives, Controls, and applications. This assures you will get the dependability and accuracy you expect from a quality System.
Product description

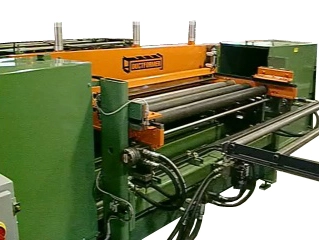

All of our Straighteners have one (1) set of Pinch Rolls, five (5) Straightener Rolls, and a Pinch Bead Roll. Hence, the same Straightener can be configured for either an overfeed or underfeed payoff application. To point out, the Straightener features an All Gear Drive (no Chain). It also has Heavy Duty Spindles running off heavy duty Anti-Friction Roller Bearing.
The Pinch Rolls are gear driven top to bottom with Pneumatic Clamping. The Pneumatic Clamping allows you to disengage the Pinch Rolls to re-align the strip when feeding in a new coil. It also eliminates tracking problems for backing the strip out of the Straightener. The upper Straightener Rolls are adjustable from a Handwheel setting with a Micrometer readout for the various materials to run. The Straightener Roll settings are also a Direct Gear Drive eliminating the problem associated with other Roller Chain and Sprocket Applications. The Bead Rolls are larger than most Systems which would eliminate the Center Bead Washout found on other Systems.
The Model CR6018 is our most popular Duct Coil Line systems to bead, notch & shear Ductwork for HVAC Applications from 5’ wide coils of 18 gauge. We offer Systems up to 72” wide with gauge ranges from 26 to 12 gauge capacity.
The quality compact design and heavy duty construction of the Ductformer Cut To Length System assures you will get years of dependable service and accuracy unsurpassed on any HVAC Coil Line to date. All Feed Controls use the latest State of the Art Technology in Programmable Microprocessors & Feed Control Drives. In general, this System eliminates all the mechanical shifting, clutches, brakes, etc. found in other Systems.
