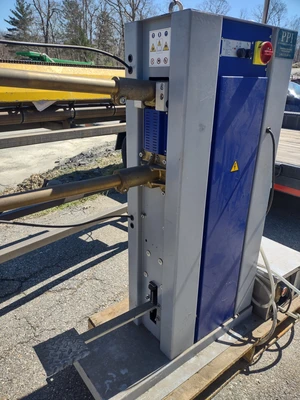

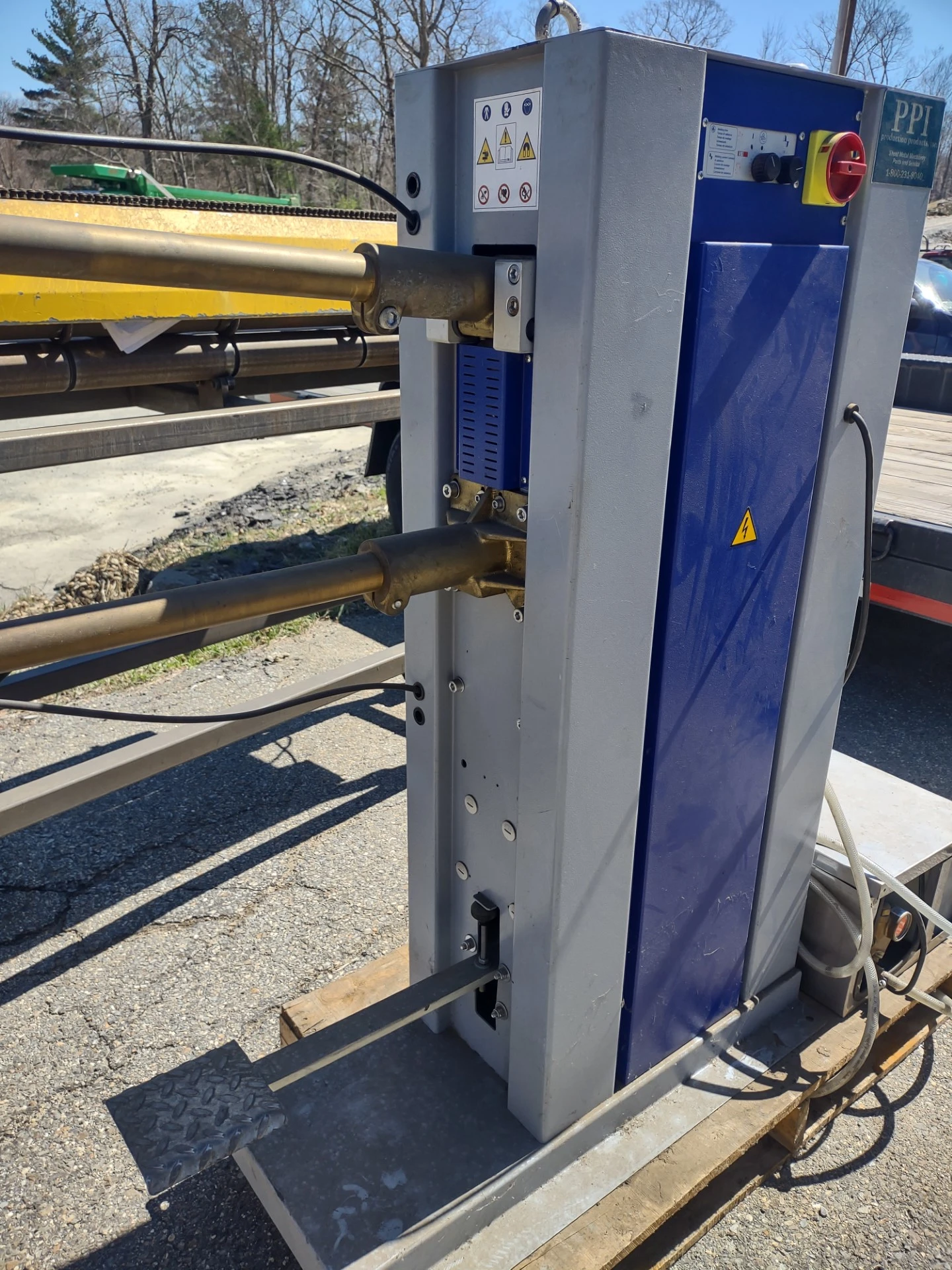

PEI Spot Welder

Pro-Fab Manual Foot Rocker 25 KVA Spot Welder
BSM 226 RFS12WITH (S2 Controller for only Weld Time and Current)
Adjustable arms from 15” to 29”
Water cooled transformer, arms and tip holders
Lower arm has arm and tip holder assembly for Small Diameter Parts 2” and Larger
Upper arm has 12” tip holder
Both holders can be put a 90- or 45-Degree Angle

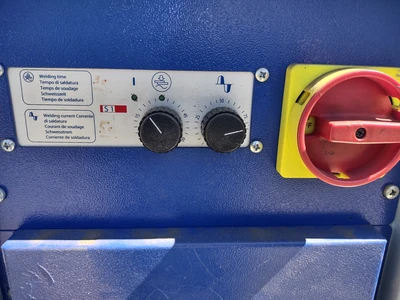

S2 Controller for Adjusting Weld Time and Current Only
Voltage 220volt, single phase, 80-amp or 440-Volt Single Phase 40 amp Service
Manual Foot Operation for closing Arms for Welding
Capable of welding 2 pcs. 14ga. Galv. , Stainless and Cold Rolled Steel
Unit includes Chiller

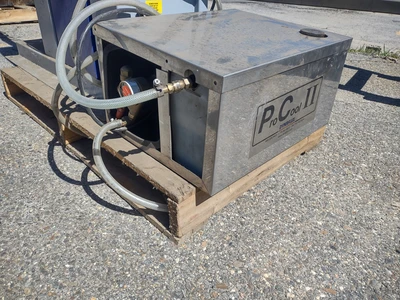

Pro Cool II Coolant Re-circulator
3 gallon system (1.5 gallon coolant and 1.5 gallon water)
110-volt self contained W/ 1gal. “Defense” Coolant (includes hoses and fittings
