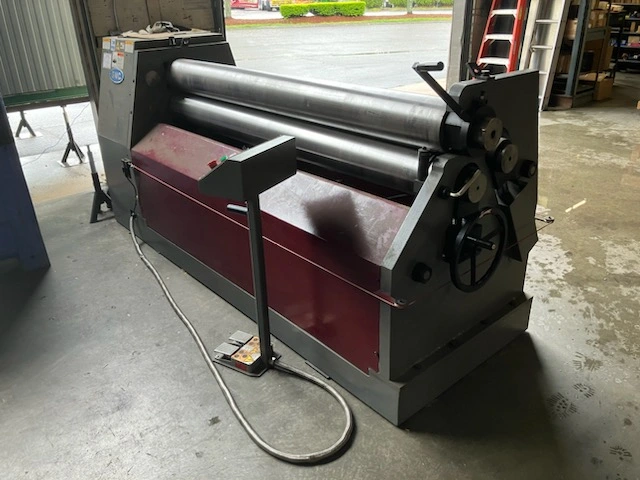

Machine Model- GM HBR-0625
Machine was new Feb 2023
1 owner 6ftx.25″ plate roll
Equipped with standard features:
ISO 9001 certified
Taiwan Machines
All three rollers are driven
All three rollers are hardened, up to 50-52 HRC
Easy swing –out top roller
Standard cone attachment installed
1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, (Option 460 V , 3 phase)
One year industrial warranty for parts
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Cone attachment ( to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
Product description
Machine was new Feb 2023
Plate Rolls Specifications
Roll Capacity:
Mild Steel
6′ x 1/4″
Stainless Steel: 6′ x 3/16″
Min. Roll dia: 8 1/2″
Rolls Length: 6′ 8″
Rolls Dia: 7 1/2″
Pre-bend: 0.18″
Rolls speed: 5 RPM
Rolls Opening: 3/4″
Oil Tank Cap: 45L= 12 Gal
Main Motor: 5 1/2 HP
Weight: 7,650 lbs.
Dimensions: 118″ x 38″ x 58″
