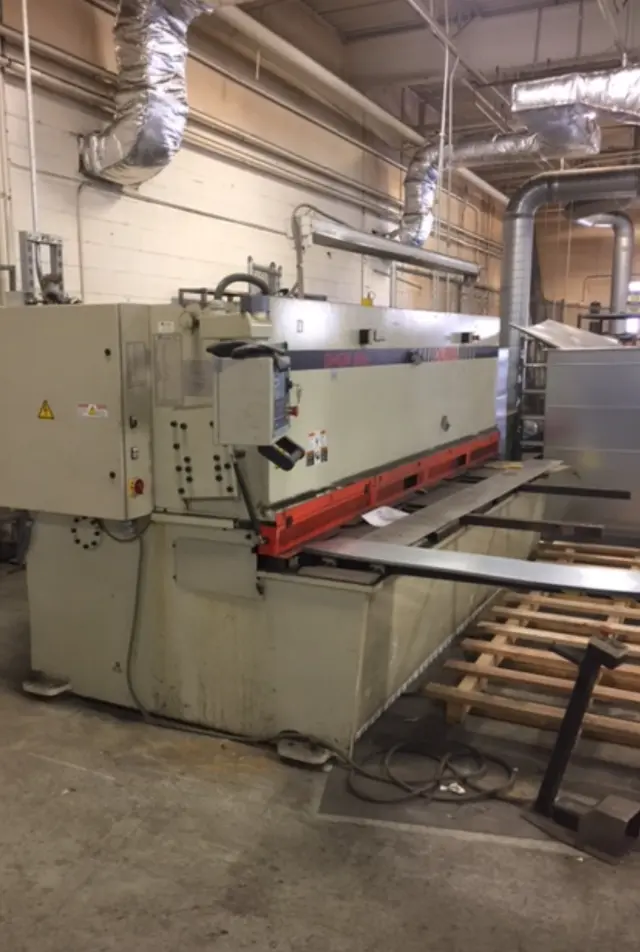

Durma 10ftx.25″ Power Shear DHGM- 3006

¼” X 10’ Hydraulic Shear with Durma CADR-1 Programmable Backgauge, Squaring Arm, Front

Material Support Arm, Power Length of Stroke, Quciset Blade Clearance Setting, Ball Transfer Table

and Foot Pedal

GENERAL SPECIFICATIONS

• Overall Cutting Length: 10’

• Shearing Capacity: 1/4″

• Rake Angle: 1° 30’

• Backgauge Range: 24”

• No. of Holddowns: 14

• Throat Depth: 13.7”

• Full Stroke: 15

• Short Stroke: 30

• Dimensions: 150” X 80” X 80”H

• Weight: 17,000 LBS

INCLUDES: Durma CADR-1 Programmable Backgauge, Squaring Arm, Front Material Support Arm,

Power Length of Stroke, Quciset Blade Clearance Setting, Ball Transfer Table and Foot Pedal
