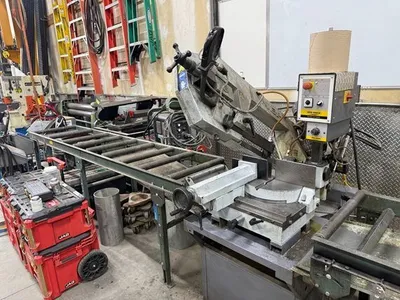

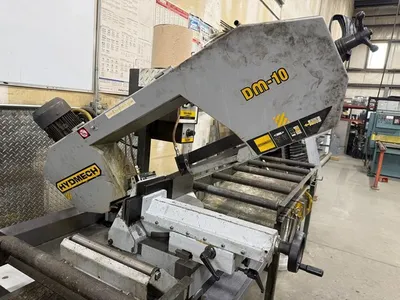

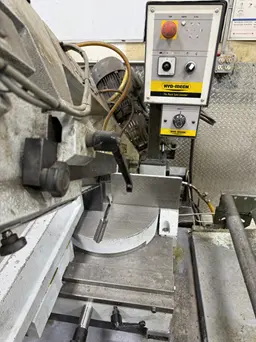

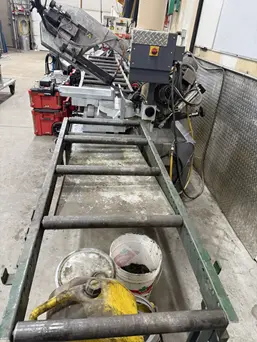

USED HYD-MECH DM-10

Specifications (subject to buyer verification):
Capacity:
Rectangular:
90°: 9 1/2″ x 11″
45° Left: 6 1/4″ x 4 1/2″
30° Right: 5″ x 4 1/2″
45° Right: 8 1/4″ x 7″
Round:
90°: 10″
45° Left: 5 3/4″
30° Right: 4″
45° Right: 7 1/4″
Square:
90°: 9″
45° Left: 4 1/2″
30° Right: 5″
45° Right: 7″
Blade Size: 9′ 8″ x 1″
Blade Speed: (2) 118 – 236 SFM
Coolant Tank Capacity: 3.5 Gallons
Table Height: 34″
Motor: 2 HP, 2.4 HP

Equipped with (subject to buyer verification):
Manually operated, double miter, easy swing, and cast saw head
Quick release cast-iron material vise with dovetail ways
Rotating table with cut slot that moves in tandem with sawing head
Band tension indicator
Infinitely adjustable, gravity feeding, sawing head
Replaceable blade brush
Small footprint
Robust steel base
Easy-to-read angle scale
Adjustable guide arm
Pre-set, replaceable carbide guide inserts
True-direct drive — no belts or pulleys
Mechanical blade tensioning
Safety door interlocks
Flood coolant
Adjustable work-stop
Dimensions: 35 1/2″ x 68″ x 65″ H
Weight: approx. 970 lbs.
