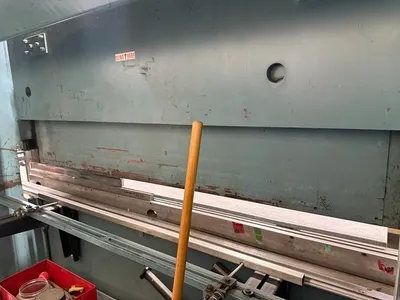

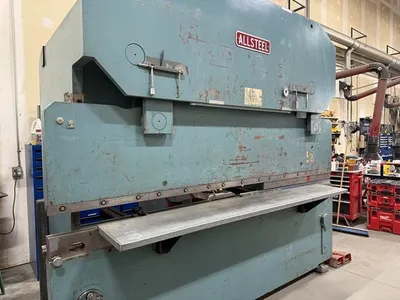

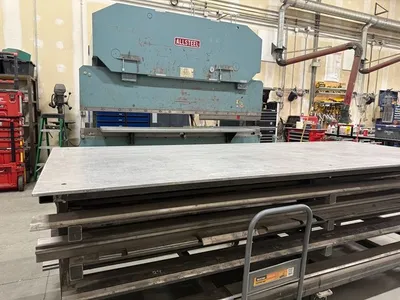

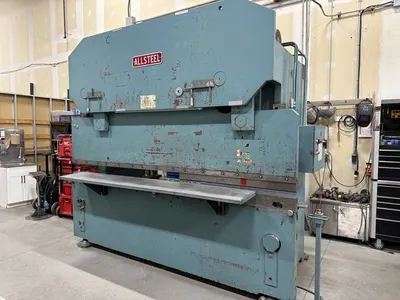

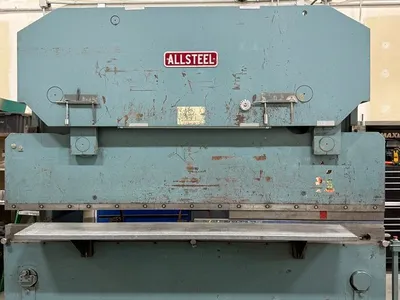

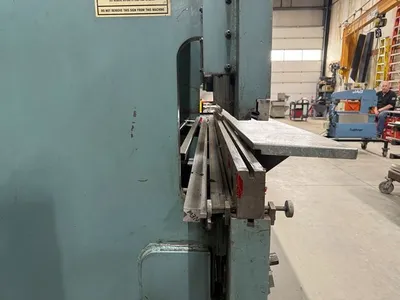

For sale: Allsteel 135T-10 Press Brake. This used hydraulic model offers 135-ton capacity, 10' overall bending length, and 8" stroke. Features manual back gauge, 20 HP motor, and more. Includes 1 punch and 1 die tooling. 600V 3-phase power.
| Tonnage | 135 T | 122.47 t |
| Type | HYD | HYD |
| OA Length | 10' | 3 m |
| OA (Overall) Length | 120" | 3,048 mm |
| Between Housings | 102" | 2.6 m |
| Between Housings | 102" | 2,590.8 mm |
| Stroke | 8" | 203.2 mm |
| Weight | 21000 | 21000 |
Specifications (subject to buyer verification):
Capacity: 135 Tons
Overall Bending Length: 10 Feet (120")
Distance Between Uprights: 102"
Stroke: 0 - 8" Variable
Open Height: 17"
Bed Height: 34"
Speeds: Approach 190"/min, Return 190"/min, Pressing 12"-35"/min
Manual Back gauge
Motor: 20 HP
Approx. Weight: 21,000 lbs
1 punch and 1 die tooling included
All other tooling and table available for extra
Under power
600 volt 3 phase power
