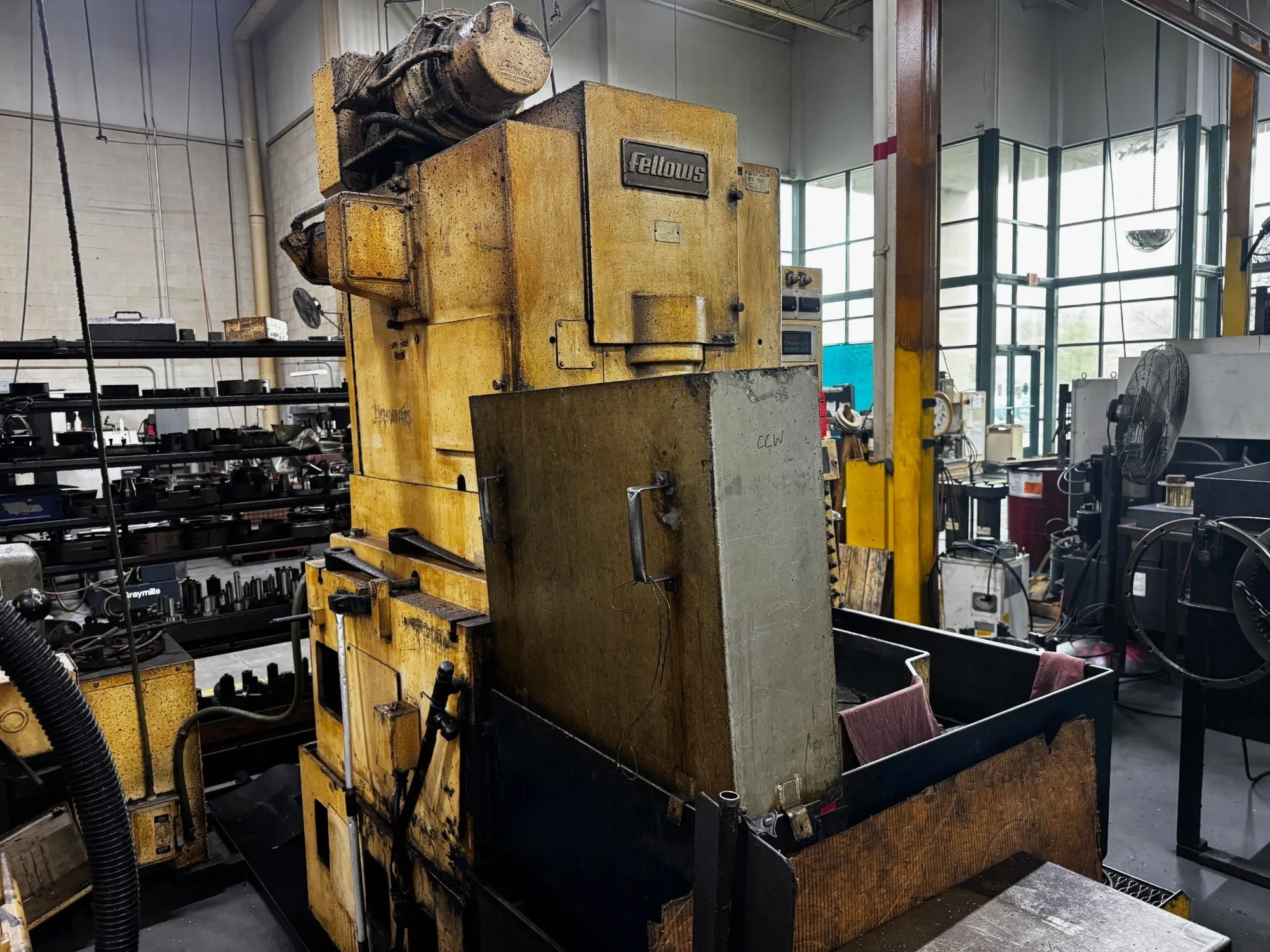

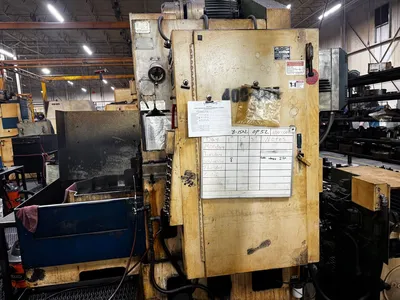

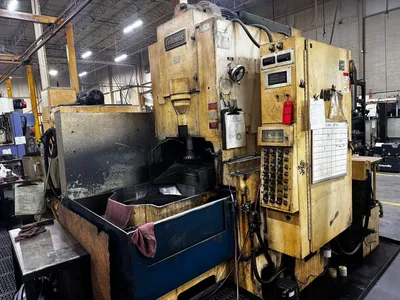

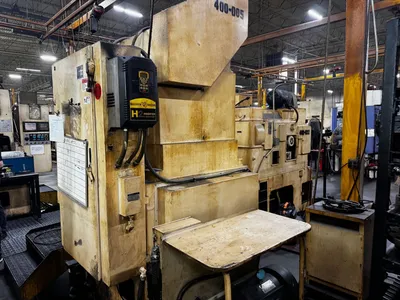

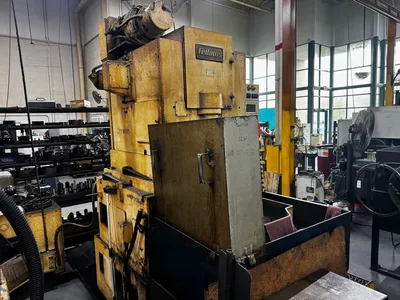

USED FELLOWS 20-4
Overview
The Fellows 20-4 is a heavy-duty vertical gear shaping machine. It is primarily designed to cut internal and external spur gears, helical gears, and other custom profiles.
Specs
Max pitch diameter (External) 20"
Max pitch diameter (Internal) 20"
Max face width, external & internal 4"
Max diametrical pitch spur 4 DP
Max diametrical pitch helical 5 DP
Bore through work spindle 9.055"
Cutter spindle diameter 3.543"
Max helix angle with special guides 45 deg.
Distance between work table & cutter spindle w/no riser 12"
Dimensions (L x H x W) 126"x 117"x 70"
Machine net weight, approx 18,000 lbs.
Equipped With
Spur Guide
Coolant System
Cutter Adapter
20" Table
