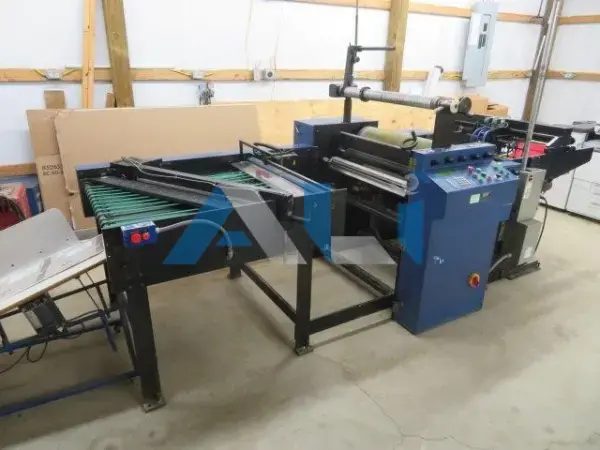

#106334 D&K 3215 High Speed Laminator - Angled-Knife Separator

#106334 D&K 3215 High Speed Laminator - with angled knife separator
D&K make an industry tough Laminator, here is another great offering from Asset Liquidity's offset and bindery equipment.

Model: 3215 with Angeled Knife Separator
Manufacturer: D&K

Dimensions

Floor Space 5'6" W x 16' L x 6'6" H
Clearnace 3' non operator side 5' all other sides

Sheet Size Spec

Min Sheet Length 16"
Max Sheet Length 40"
Min Sheet Width 9"
Max Sheet Width 31.5"
Min Sheet thickness .004"
Max Sheet thickness .018"
Max Pile height 28" (working pile height 25")

Film Spec

Film Type Polyester (PET), polypropylene (OPP), Nylon (Curl Free)
Min film thickness 1 mil
Max film thickness 3 mil (OPP), 1.5mil (PET and Curl Free)
Max roll weight 150lbs
Max roll diameter 18"
Max roll width 32"
Film load times 3 - 5 minutes

Performance Spec

Sheet loading times 10 - 15 minutes
Machine Warm up Time 10oF / minute
Heated roller type 10" damter NT, Duralon coated
Embossing Chrome coated
Slitting To Core -- 16" max from one end
Temperature Range 70o - 360o F
Running Temperature 230o - 260o F
Speed 0 - 200 fpm
Sheets / HR Estimated

11x17 = 125 fpm (5200)
17x22 = 150 fpm (4900)
20x26 = 175 fpm (4800)
28x30 = 200 fpm (4600)
