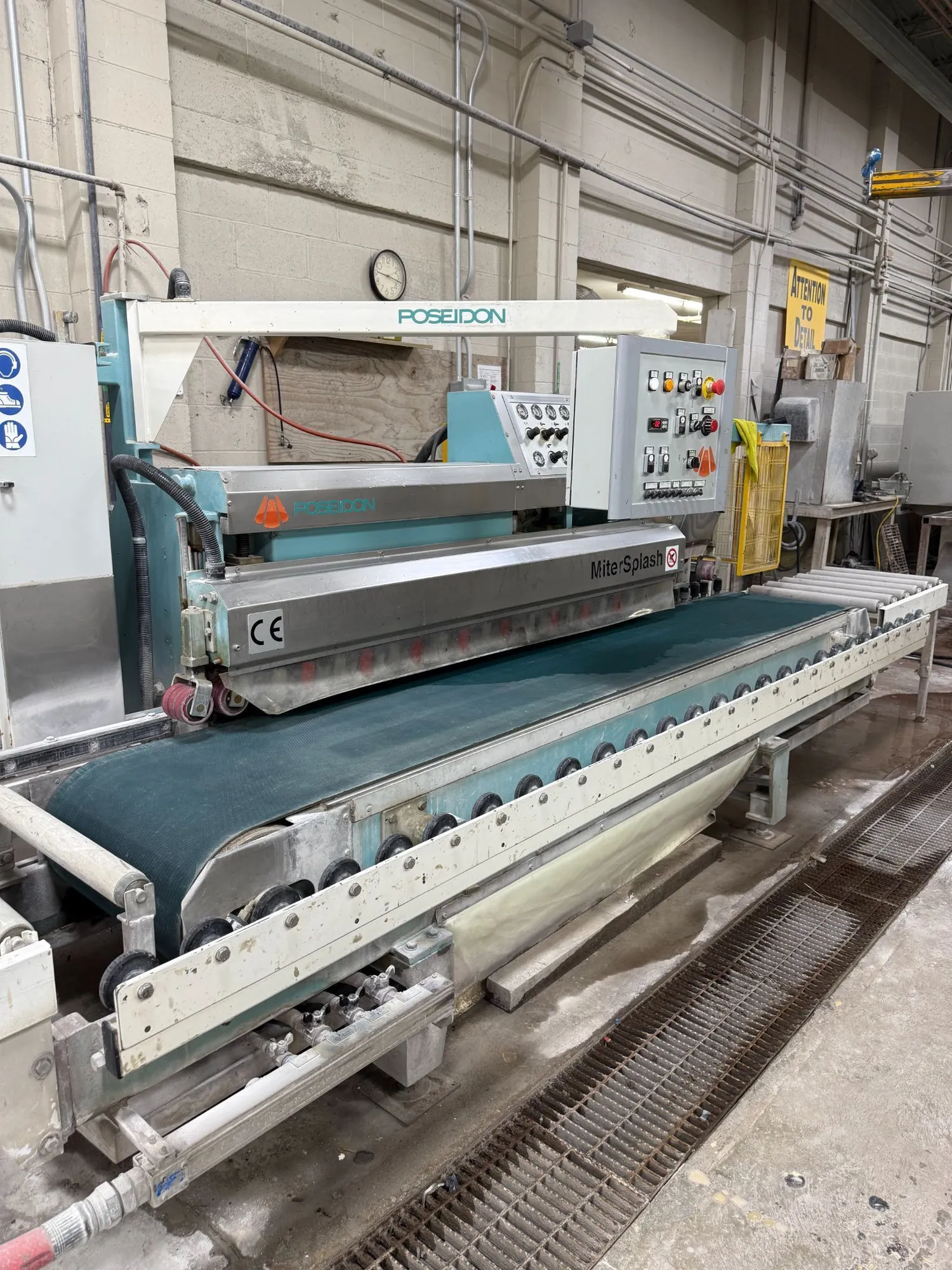

USED 2014 POSEIDON Mitre Splash

2014 Mitre Splash machine, unit has been disconnected from power and is at the seller facility in Michigan. Video of machine in operation is in the listing pictures above.

One of a kind
The MiterSplash edger is a 1-of-a-kind flat edge polisher and perfect miter seam cutting machine-in-1. It is designed to be able to polish 4″ backsplash and large countertop pieces up to 100″ wide which vertical backsplash polishers can not do

Perfect Precision
The MiterSplash also cuts at a 45 degree angle with polish faces down on the belt thus ensuring precise seam positioning when doing miters

The standard MiterSplash comes equipped with 5 polishing motor heads, 2 chamfering motors, and 1 miter cutting unit at the end

Maximum Output
Handles up to 3″ thick material, delivering 2–3 linear feet per minute polishing speed on flat 3cm edges and 12–18 inches per minute miter cutting speed. The V-Groove model adds a second miter cutting motor, enabling strip cutting and precision grooves directly into the mitered surface.

Footprint: 13.5 Ft Long by 7 Ft wide by 6 Ft high

Motor: 5 Spindles for Flat Polish, 2 Chamfer motors, 1 Miter Cutting Motor

Polished Profiles: Flat Polish on BackSplash pieces and Any Size Countertop

Blade: 12" Cutting Blade

Air: Continuous 125 psi, 10 cfm

Water: 25 Gal/Min

Machine Weight: 5200 lbs

Electrical Power: 230 Volt 3 Phase 60 Amp
