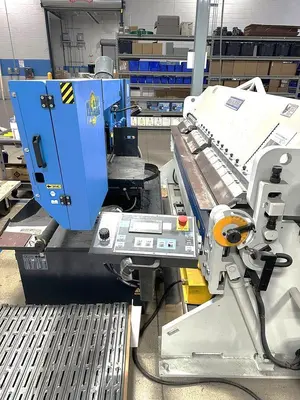

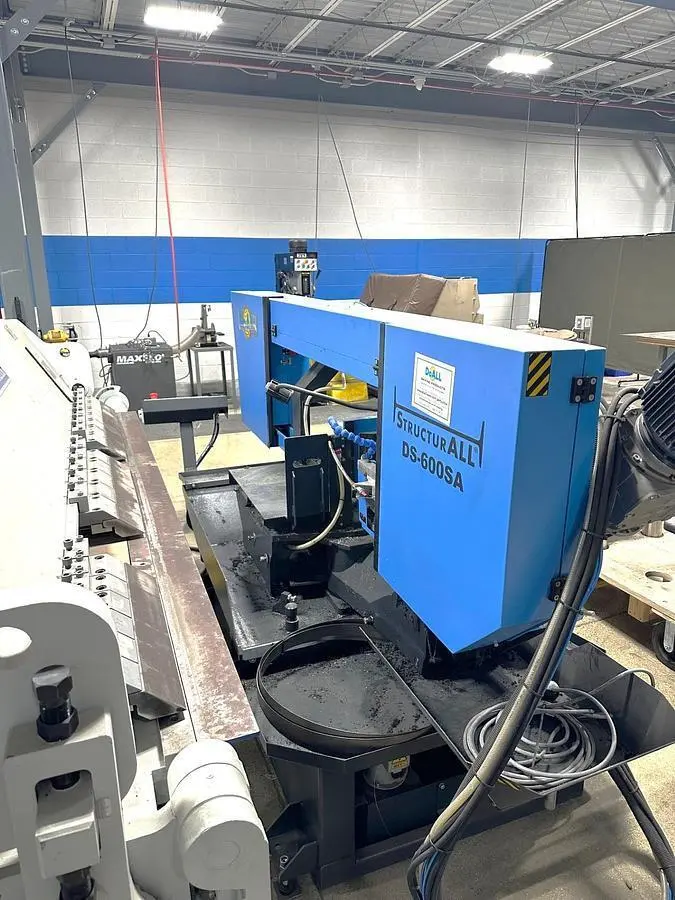

NEW 2023 DOALL DS-600SA

2023 DOALL Model DS-600 SA Bandsaw, Semi-Automatic with Dual Mitering-60 degrees L & R
Standard Features: Dual-Swivel Head To 60 Degrees (L&R), Digital Touch Screen Controls, Hydraulic Variable Vise Pressure and Mist Lubrication
DS-600SA is semi-automatic, dual-miter metal-cutting band saw is designed for straight and angled cuts. Miter angle cuts are possible up to 60° left and right. A Mitsubishi digital controller comes standard, loaded with proprietary DoALL operating software and makes it easy to verify exact cutting angles and streamline the production of parts.
Direct-driven band drive: The drive features an electric variable frequency drive (VFD) motor that transfers power through a gear reduction unit directly to the drive wheel, eliminating belt slippage and giving positive torque to the blade.
Semi-automatic cycle: The programmable cycle maximizes productivity with the ability to control hydraulic on-off, saw head movement after the cut, head raise limit through programmable set point, band drive on-off, and vise clamp-unclamp after the cut.
Automatic overload feed protection: The BRP function monitors band drive motor amperage, stopping head fall when the operator-set parameter is reached, signaling overfeed or a dull saw band.
Band wheels: Cast steel wheels ensure band tracking and long life.
Hydraulic clamping vise: The full-stroke hydraulic vise can be positioned on either side of the band, allowing maximum clamping close to the cut line and eliminating material movement and tooth strippage.
Hydraulic blade tension: An illuminated indicator prevents the possible error of over- or under-tightening the band for maximum cutting rates and band life.
Band brush: A motor-driven band brush removes the chips from the blade gullets, allowing the blade to attain maximum cutting rates and life span.
Counterbalance spring: The counterbalance springs maintain constant head weight throughout the cut, keeping the blade tooth load equal while aiding in maximum blade life.
Head turn table: The saw head's manual position is accomplished by releasing the lock mechanism and rotating it to the desired angle monitored on the digital display. The machine is equipped with a spring-loaded detent for zero position, allowing for decreased setup time.
Dual-Miter Metal-Cutting Bandsaw Applications

Manufacturer DoAll
Model DS-600SA Dual-Miter Semi-Automatic Horizontal Band Saw
Year 2023
Condition Used
Location Michigan
Cutting Capacity - Round Solid 15.75"
Cutting Capacity - Round Tube 18"
Cutting Capacity - Rectangle 23.5" x 18"
Capacity at 45 Degrees: Round / Rectangle 18" / 18.5" x 9.5"
Capacity at 60 Degrees: Round / Rectangle 12.6" / 13" x 7"
Material Pass Line Height 31.5"
Nesting Capacity (Minimum to Maximum) 0.20" to 23.6" x 9.8"
Blade Size 1.5" x 212"
Saw Blade Speed 65 - 328 FPM (variable speed)
Blade Motor 5 HP
Hydraulic Pump Motor 1 HP
Machine Dimensions 136" x 45" x 65"
Machine Weight 2,646 lbs.
Miter Cutting Angle Max. 60 Degrees Left and 60 Degrees Right

6.5' In-Feed Roller Table
Dual Miter Design for Straight and Angled Cuts
Digital Readout
Semi-Automatic
Worklight
Coolant System
Wired 460V / 3 Phase Electrics
All Available Manuals
