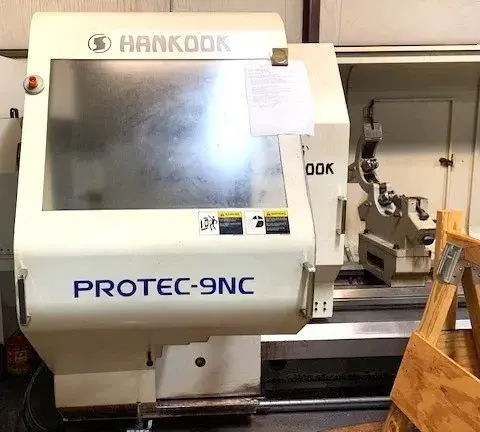

NEW HANKOOK PROTEC 9NC
Overview

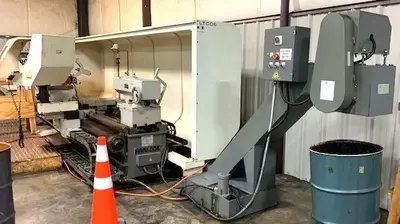

HANKOOK PROTEC 9NC HOLLOW SPINDLE LATHE
The Hankook Protec 9NC is a heavy-duty hollow spindle CNC lathe produced by South Korean manufacturer Hankook Machine Tools Co., Ltd., established in 1969. Known for its high-torque gearbox and large 10-inch spindle bore, the ProTek 9NC is widely used in the oil and gas industry for threading large tubular components. The machine is recognized for reliability, featuring a one-piece cast iron bed and Fanuc controls.
Company Origins: Founded in 1969 in Pusan, Korea, with ties to Dainichi Kinzoku Kogyo Co., Ltd. of Japan.
Specs
Hankook Protec 9NC Heavy Duty Universal Turning Center
Main Specifications:
Maximum Swing Over Bed .......................... 37.40"
Maximum Swing Over Slide ........................ 24.80"
Distance Between Centers ........................ 118.11"
Speed:........................................... 2 ~ 630 RPM range
Motor............................................ 35 HP
Turret:..4-station manual (H4) and 8-station automatic (V8).

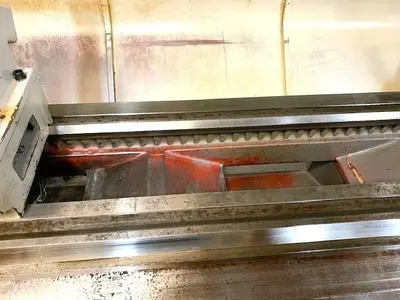

Bed Design:.. Hardened and ground bedways designed for heavy loads with 630mm width.
Maximum Workpiece Weight ........................ 11,000 Lbs
Spindle Speeds, 3 Ranges ........................ 2-1000 RPM
Spindle Drive Motor ............................. 24 HP/29 HP
Spindle Bore:.....................................9.75"
Rapid traverse rates:.............................x / z 157.6 IPM / 236 IPM
Tailstock quill travel:...........................quill diameter 9.85″ / MT #6
Main Motor:.......................................35 hp 2 Speed
Dimensions:...................................... 255″ x 87″ x 73″
Weight:.......................................... 20,200 lbs
Equipped With
Equipped with:
Fanuc 21iTB CNC Control

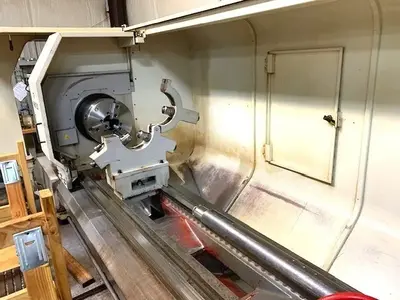

21" 3-Jaw Power Chuck Installed

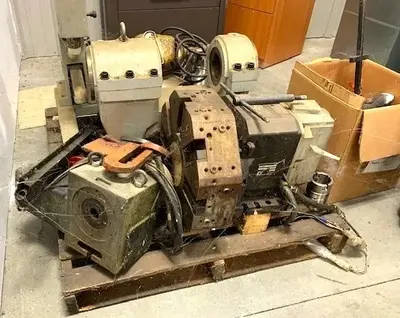

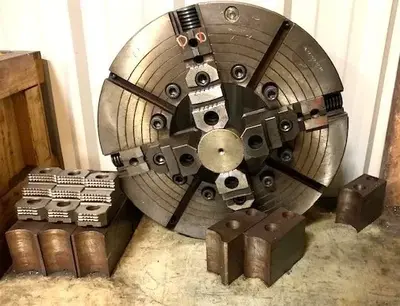

21" 4-Jaw Chuck Stock on Skid
Square Automatic Turret Installed
Drum Type 8 Station Bolt on Turret w/ Indexing
Heavy Tailstock
