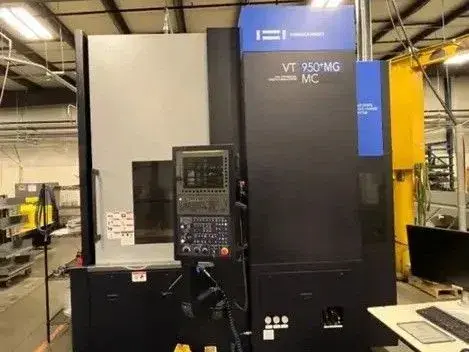

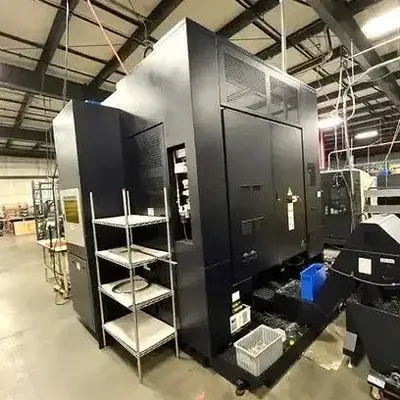

NEW 2022 HWACHEON VT-950MC

2022 Hwacheon VT-950+MC CNC Live Tool Vertical Turning Center
The Hwacheon VT-950+MC is a high-rigidity CNC Vertical Turning Center (VTL) with milling capabilities (MC), designed for large parts up to $\varnothing 950mm (37.4") cutting diameter. It features a standard 32-inch chuck, a geared spindle with high torque, and a 12-station turret, making it suitable for heavy-duty cutting in aerospace and automotive industries.

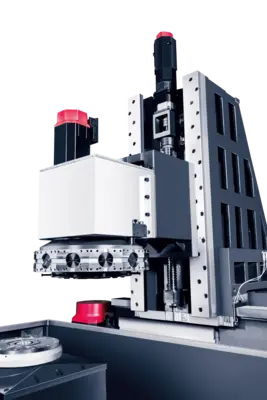

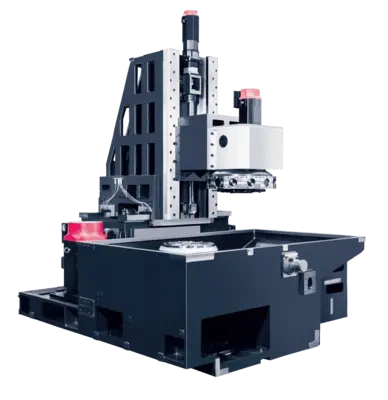

FLAT GUIDES
Excellent Damping Properties: Box or flat guides effectively absorb vibrations from the machining process by transferring them into the machine bed due to their large contact surface. Hand-fitted and scraped by experienced staff, these guides ensure precision. Central oil lubrication provides continuous lubrication with bedway oil, while the Turcite coating on the sliding surface offers excellent emergency running properties. Machines with flat guides are more durable and can handle higher chip volumes. Thanks to these unique features, they are considered particularly powerful and reliable.

2022 Hwacheon VT-950+ MC CNC Live Tool Turning Center
Fanuc 31iTB CNC Control

Main Specifications:
Max. Turning Diameter 37.4”
Max. Turning Length 33.5”
Max. Swing 43.3”
Chuck Size 32”
Spindle Speed 800 RPM
Spindle Power 60HP
Turret 12 Station
Tool shank BMT 85/BH
X Axis Travel 19.88
Z Axis Travel 33.4”
Coolant Tank Volume 266 liters
Weight 34,000 Lbs.

EQUIPPED WITH:
Fanuc 0iTF Control *Optional Manual Guide i
32” Hydraulic 3-Jaw Chuck
Full C Axis Milling & Drilling

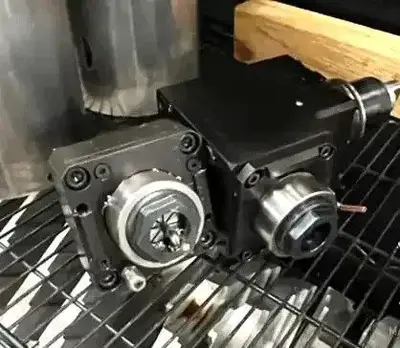

(1) Radial Straight Rotary Tool
(1) Axial Right Angle Rotary Tool
(1) Quick Auto Tool Pre-setter
Tool Life Management
Chip Conveyor
