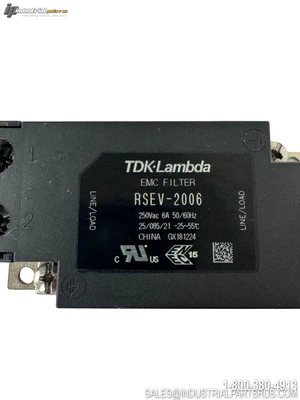

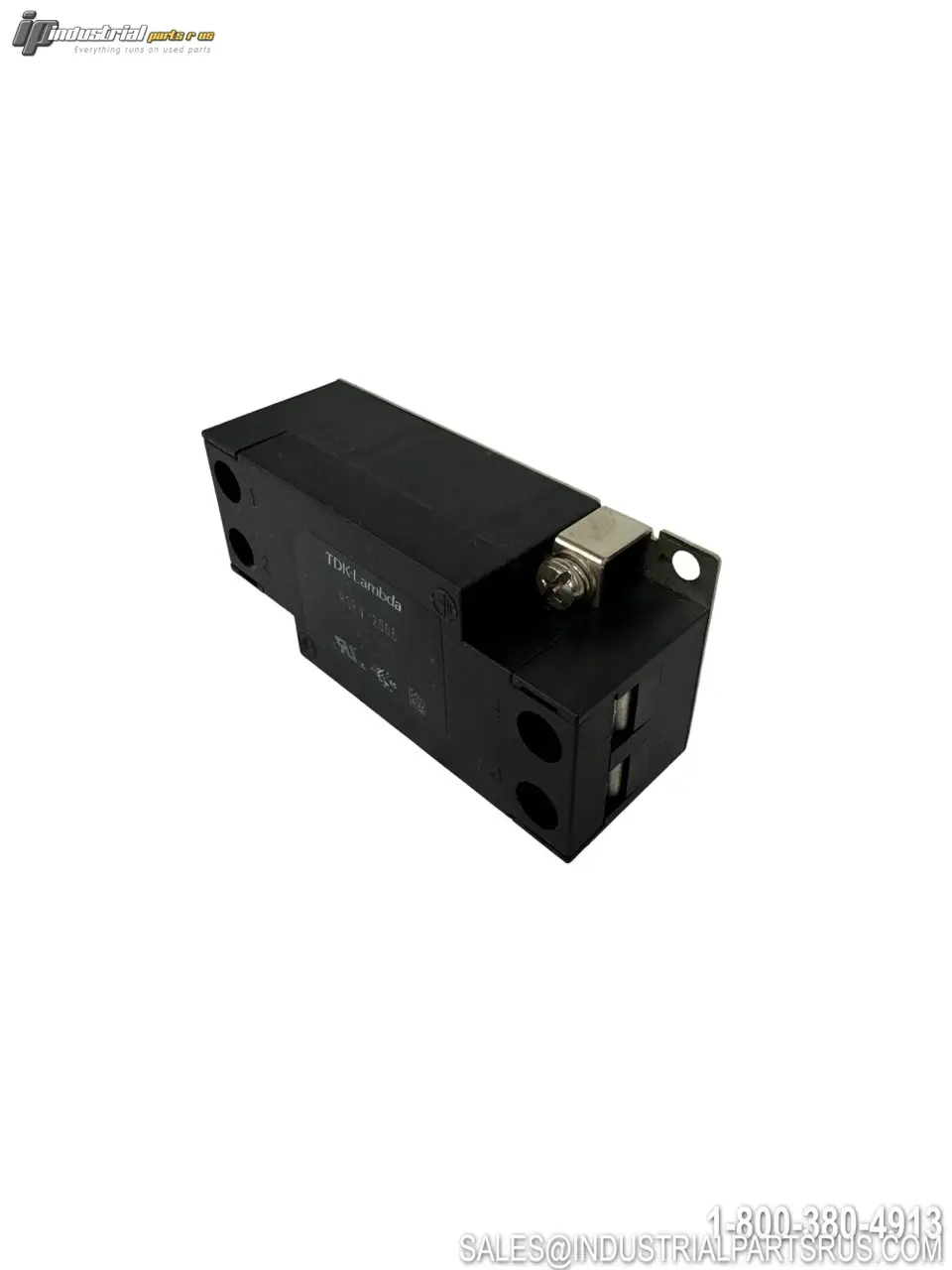

USED TDK-LAMBDA RSEV-2006

The TDK-Lambda RSEV-2006 is a single-phase EMC (electromagnetic compatibility) power line filter designed for industrial, telecommunications, and test equipment applications. This compact filter features an integrated terminal block with recessed, captive screws that prevent hardware from being dropped or lost inside system enclosures, while providing effective noise suppression and EMI filtering.
Specification
Value
Brand
TDK-Lambda
Model/Part Number
RSEV-2006
Product Type
Power Line Filter
Filter Type
EMC Power Line Filter
Voltage Rating
250VAC/VDC
Current Rating
6A
Phase
Single Phase
Terminal Type
Screw Terminal
Terminal Design
Integrated Terminal Block with Captive Screws
SCCR Rating
14 kA
HV Pulse Protection
No
Maximum Pulse
110
DC Resistance Common Mode
0.1 to 30 mΩ
DC Resistance Differential Mode
0.2 to 30 mΩ
Attenuation Frequency Range
0.1 to 30 MHz at 25dB
Dimensions (L x W x H)
85 x 39 x 30 mm
Operating Temperature
-25°C to +85°C
Earth Leakage Current
1 mA max at 250VAC 60Hz
Mounting Options
Chassis Mount or DIN Rail (with optional kit)
Safety Certifications
UL 1283, CSA C22.2 No.8, EN 60939-3
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
