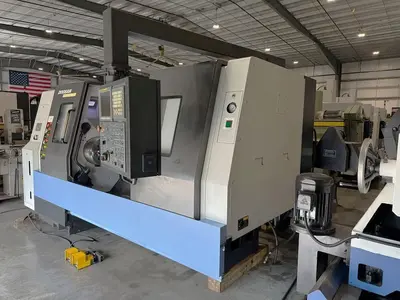

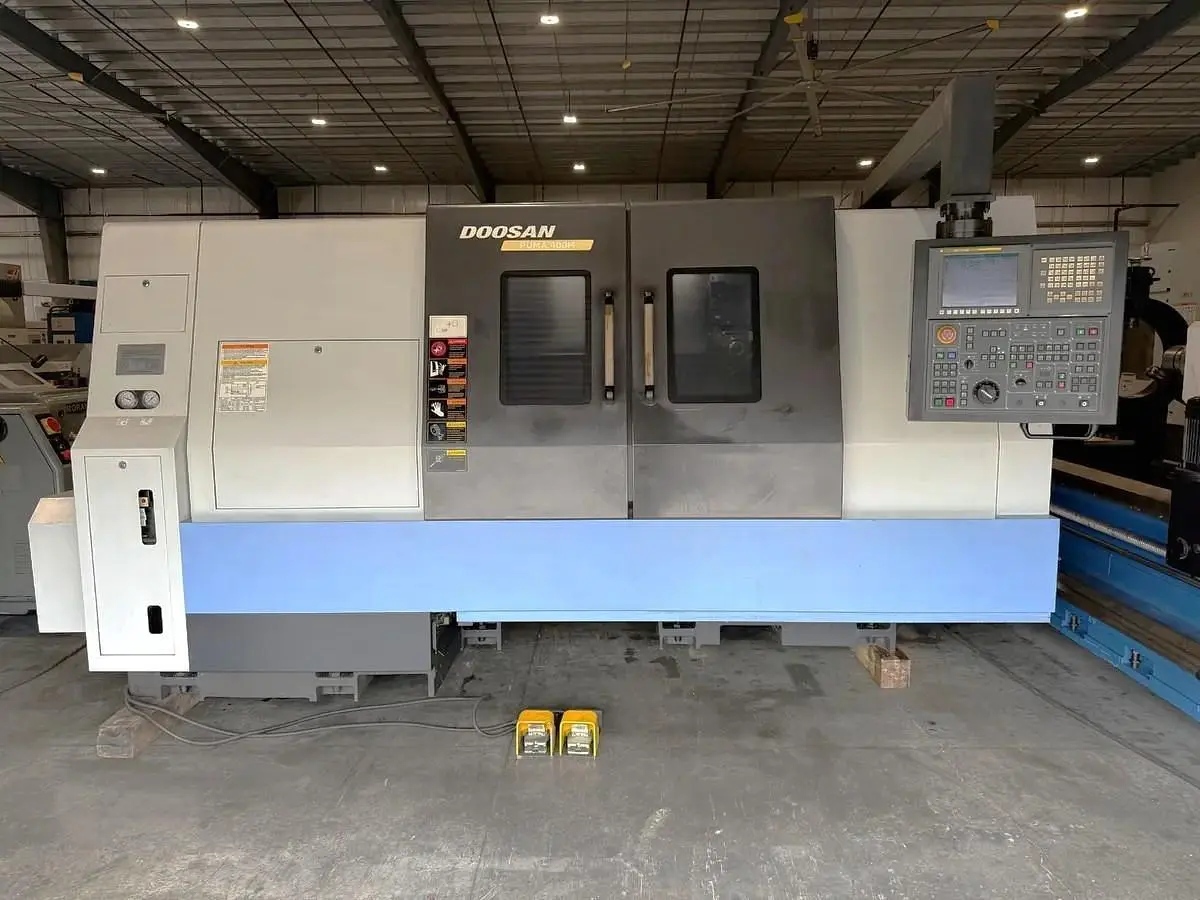

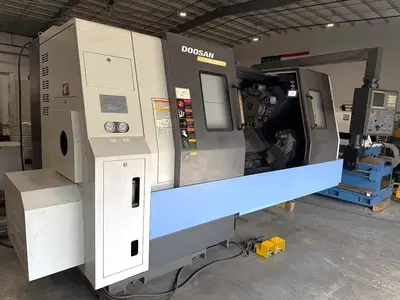

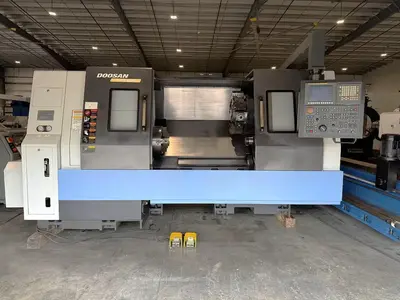

USED 2012 DOOSAN PUMA 400MB

Full C Axis Spindle Rotation

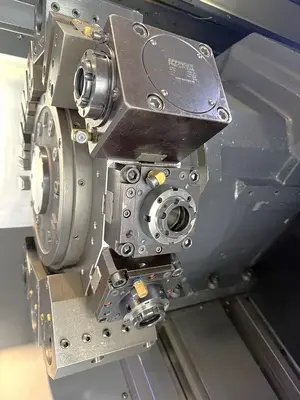

Live Milling / Drilling Capability

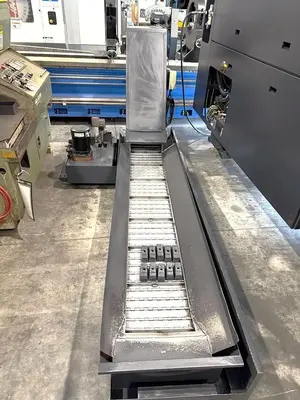

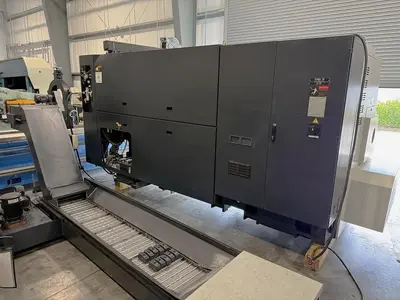

Chip Conveyor

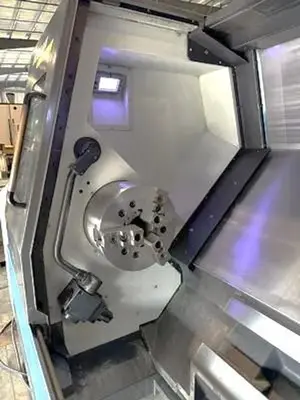

15" 3 Jaw Hydraulic Chuck
4.5" Bar Capacity

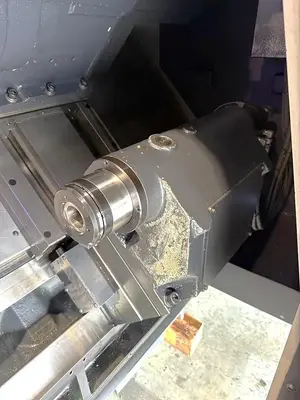

Tailstock
Tool Presetter
USB Port Interface
Card Interface
RS 232 Port Interface

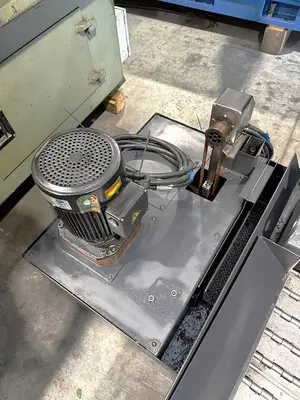

Coolant System with Tank & Pump
Oil Skimmer

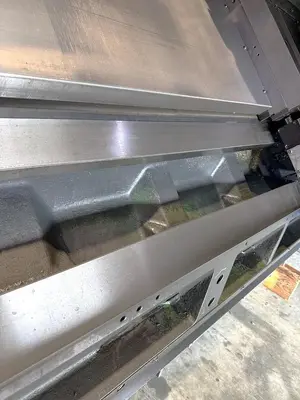

Boxed Way Construction on Slant Bed
Geared Headstock
Chuck and Tailstock Foot Pedals
Leveling Pads
All Available Tooling Includes (3) Live Tool Holders
All Available Manuals

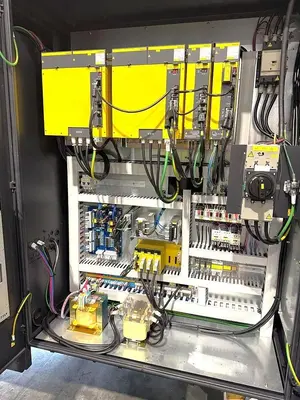

Wired 200/220V Electrics

**Manufactured New in November 2012, Delivered New in 2013**

(Machine Time in Photo is Displayed in Minutes)
**Power On Hours 11,637**
**Operation Hours 4,119**
**Cutting Hours 2,808**

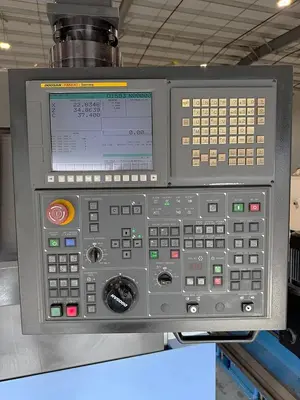

Control: Fanuc i Series Control
Chuck Size: 15" Hydraulic Chuck
Maximum Swing: 30.31"
Maximum Turning Diameter: 21.7"
Maximum Turning Length: 41.3"
Maximum Bar Capacity: 4.5"
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
C Axis Spindle Rotation: .001 Degree
Spindle Nose / Spindle Bore: A2-11" / 5.2"
Spindle Speeds: 2 - 2,000 RPM
Spindle Motor: 50 HP - 2 Speed Gearbox
Rotary Tool Motor: 15 HP

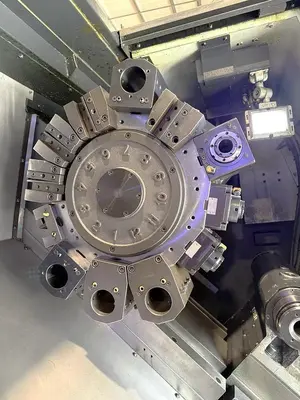

Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X/Z: 630 IPM / 790 IPM
Tailstock Quill Diameter / Center: 4.7" / MT #6
Tailstock Quill Travel: 4.7"
Machine Dimensions: 170" x 86" x 92"
Machine Weight: 24,550 lbs.
