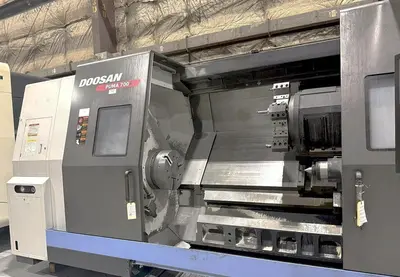

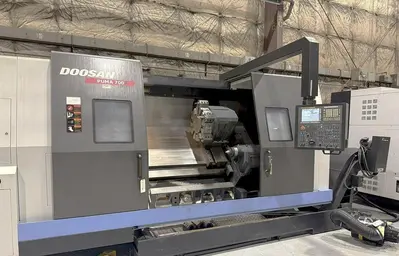

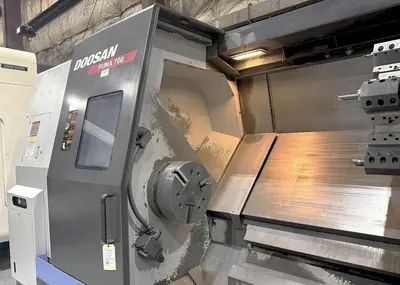

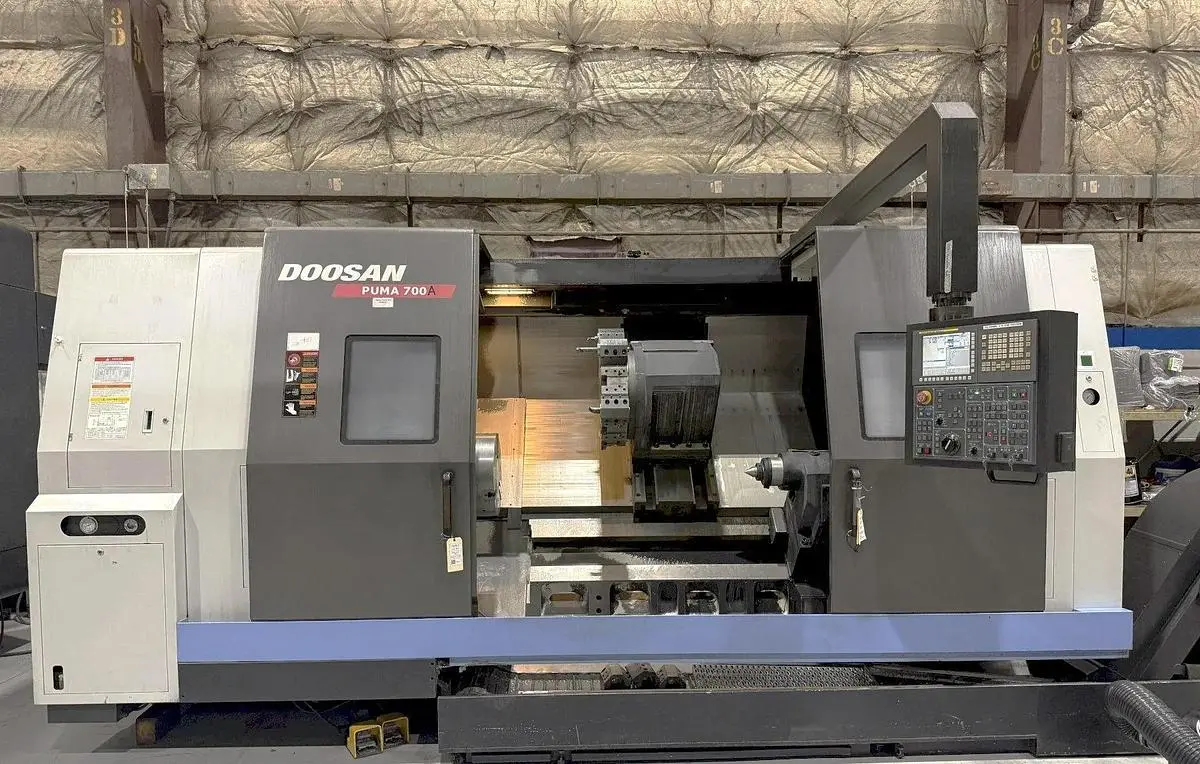

USED 2013 DOOSAN PUMA 700A

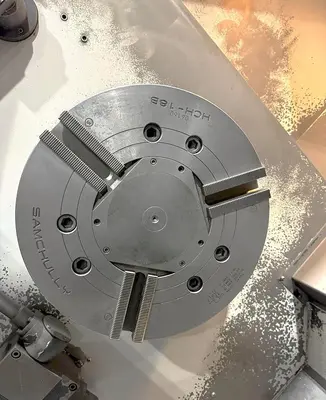

18" Samchully HCH-18B 3 Jaw Hydraulic Chuck
6.5" Bar Capacity
Tailstock
Chip Conveyor
Tool Presetter

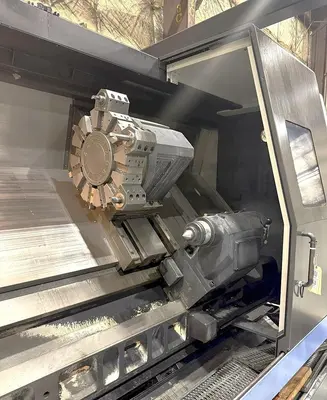

12 Station Bolt On Style Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface
All Available Manuals

**2,624 Run Time Hours**

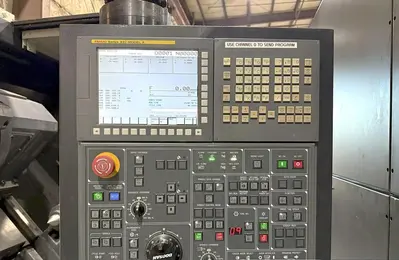

Machine Control: Fanuc Series 32i-Model A Control

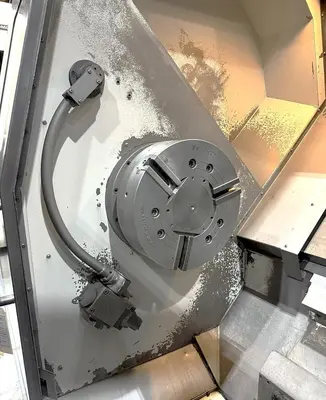

Chuck size: 18" Hydraulic Chuck
Maximum Swing over Bed: 40.6"
Maximum turning diameter: 35.4"
Maximum Distance Between Centers: 63"
Maximum Bar Capacity: 6.5"
X axis travel: 18.5"
Z axis travel: 65"
Spindle Nose / Spindle Bore / Bar Capacity: A1-15" / 7.12" / 6.5"
Spindle speed: 3 - 1500 RPM (3 Ranges)
Spindle motor (30 min / cont): 60 / 50 HP

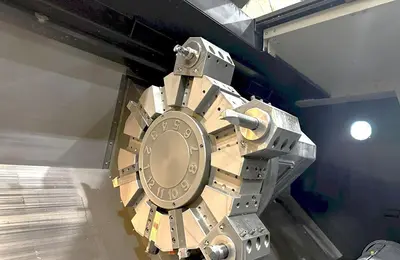

Turret type: 12 Position Bolt on Style Turret
Rapid traverse rates x, z: 472 IPM / 397 IPM

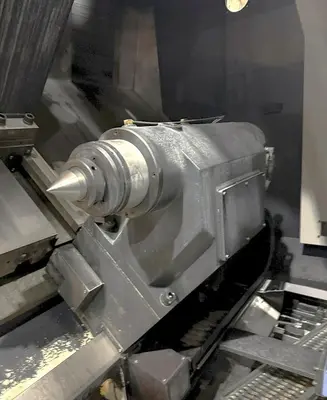

Tailstock Quill Diameter / Quill Travel / Taper: 6.3" / 5.9" / #5 MT
Machine dimensions: 227" x 124" x 110"
Machine weight: 36,400 lbs.
