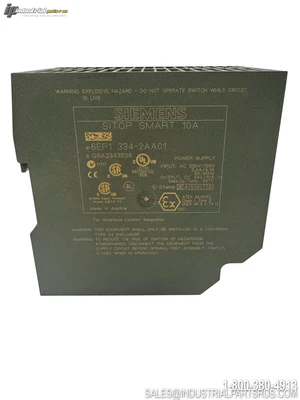

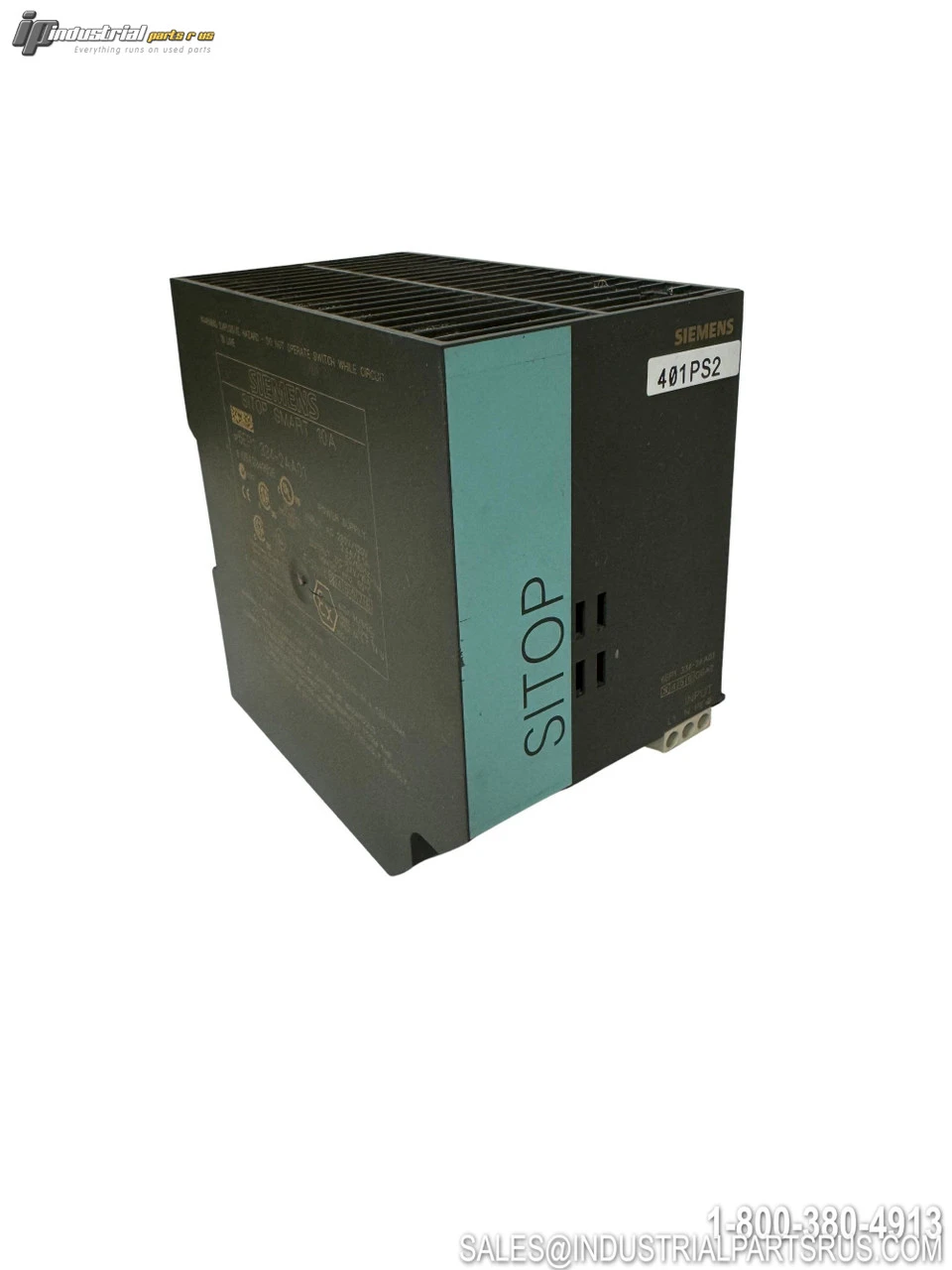

USED SIEMENS 6EP1 334-2AA01

The Siemens 6EP1 334-2AA01 is a SITOP Smart 240W stabilized switching power supply designed for industrial automation applications. This single-phase power supply converts 120/230VAC input to a stable 24VDC output with 10A current capability. The unit features adjustable output voltage, DIN rail mounting, screw terminal connectors, and integrated overload protection for reliable operation in demanding industrial environments.
Specification
Value
Brand
Siemens
Model/Part Number
6ep1 334-2aa01
Product Series
SITOP Smart
Power Supply Type
Switching
Input Voltage
120/230VAC
Input Current
4.1A
Input Voltage Range (Min)
85VAC
Input Voltage Range (Max)
264VAC
Number of Phases
1
Output Voltage
24VDC
Output Current
10A
Output Voltage Range (Min)
22.8VDC
Output Voltage Range (Max)
28VDC
Output Power
240W
Number of Outputs
1
Efficiency
90%
Tolerance
3%
Mounting Type
DIN Rail
Width
70mm
Depth
125mm
Weight
750g
Operating Temperature (Min)
0°C
Operating Temperature (Max)
60°C
Output Type
Fixed
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.

SKU: AI1299
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: Fixed
Manufacturer: Siemens
Part Number: 6EP1 334-2AA01
Shelf: K-47
Model: 6EP1 334-2AA01
MPN: 6EP1 334-2AA01
Type: DC Power Supply
