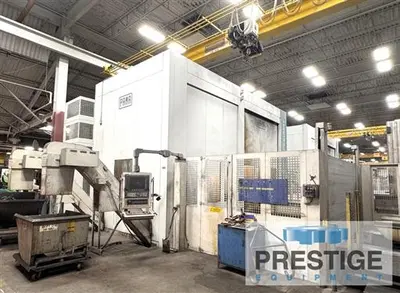

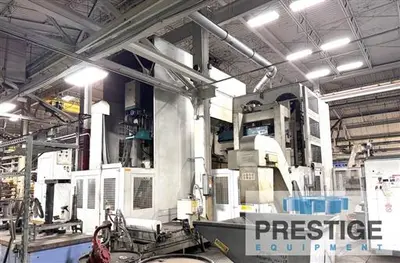

USED 2008 PAMA 3/TR 16

SPECIFICATIONS:

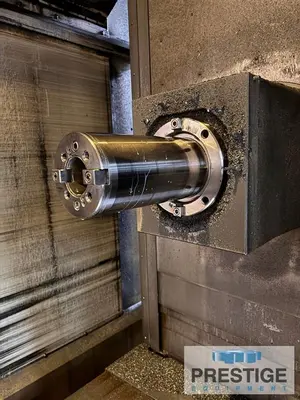

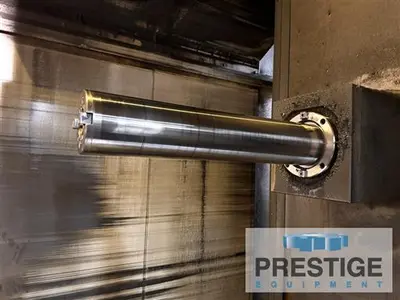

Spindle Diameter: 6.3"
Vertical Travel Of Head, Y-Axis: 118.11"
Cross Travel Of Table, X-Axis: 137.79"
Saddle Travel, W-Axis: 106.2"
Spindle Travel, Z-Axis: 31.49"
Spindle Speeds, Max: 3,500 RPM
Taper In Spindle: #50
Spindle Motor: 61 HP (46 KW)

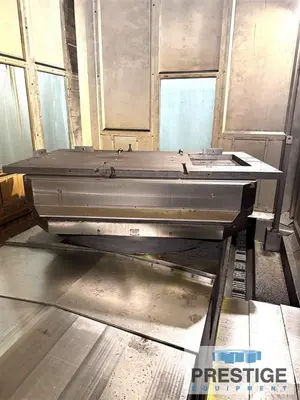

Table Size: 70.86" x 78.76"
Table CapaCITY: 26,400 LBS.
B-Axis, Table Rotation: .001 degrees
Machine Electrics: 480/60/3

Equipped With:

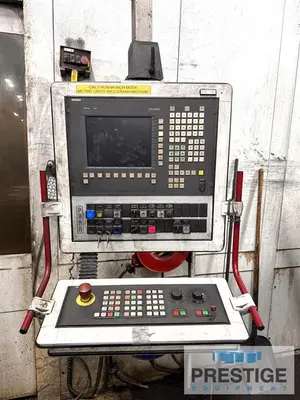

Siemens 840D Powerline CNC Control

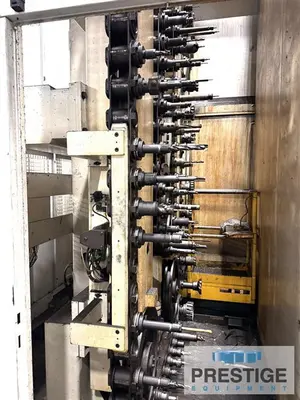

140-Station Automatic Tool Changer

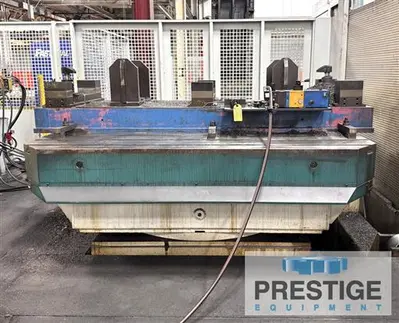

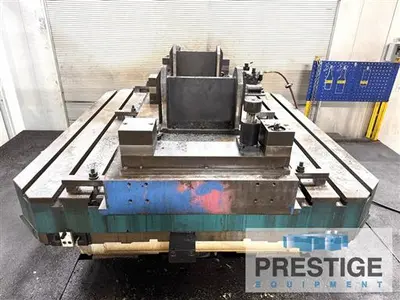

(2) 70.86" x 78.78" Pallets with Shuttle System
Ball Screw and Independent Servo Motors
Through Spindle and Flood Coolant System

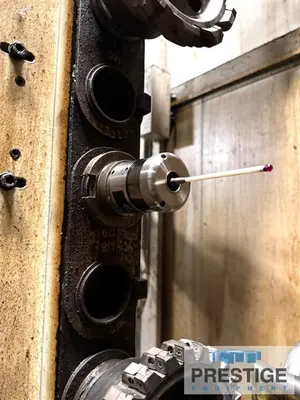

Renishaw Probe RMP-60

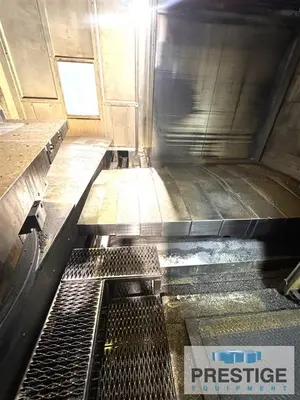

Steel Sliding Way Covers On X & W Axis

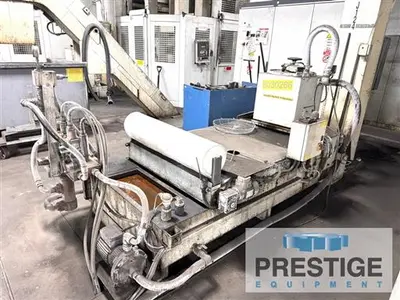

Chip Conveyor

NOTE:
(2) Machine Available w/ Dual Pallets
6-Pallet FMS System Available at Additional Cost
Cost is Per Machine
Inspect Under Power In Plant!

Features:
Siemens 840D Powerline CNC Control
140 Station Automatic Tool Changer
(2) 70.86" x 78.76" Pallets with Shuttle System
Through Spindle and Flood Coolant System
Renishaw Probe RMP-60
Ball Screw and Independent Servo Motors
