Used

USED 2018 SCM K360

Nevada, United States
Asking Price
USD $18,000.00
1 available
43Listings|16Followers
Overview
CNC Edgebanding Machining Centers

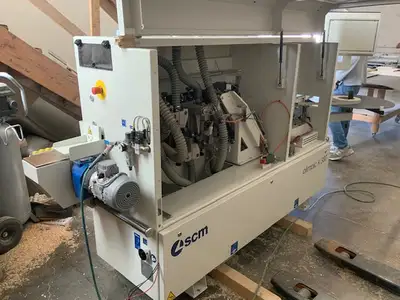

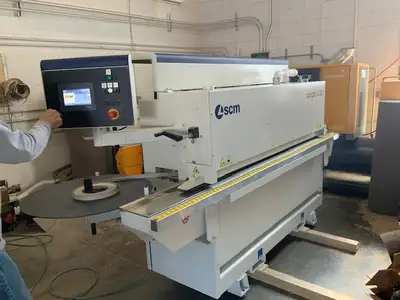

2018 SCM Olimpic K360 automatic edgebander located in Nevada. The seller reports very good used condition and no known issues. The machine is also currently in production. Electrical service is represented as 230V, 3-phase. Call iBiD Machinery at (678) 925-3556 for current availability and inspection.
SCM Olimpic K360 edgebander equipment

Pre-milling unit
Automatic EVA glue application
End trimming
Top and bottom trimming
Profile scraping and glue scraping
Buffing station
Touchscreen operator control
Edge-material capability represented up to about 6 mm

Listing logistics

Estimated shipping dimensions: 14.5 ft. L x 4 ft. W x 4.5 ft. H
Estimated listed weight: 1,700 lb. / about 771 kg; verify actual shipping weight before rigging

SCM K360 capacity and utility reference

Panel thickness: 8–50 mm standard published range (about 0.31–1.97 in.); 60 mm capability is dependent on the setup
Edge thickness: 0.4–3 mm standard published range; up to 6 mm with the correct setup, consistent with the seller's stated capability
Published feed speed: 11 m/min (about 36 ft/min)
Compressed-air working pressure: 6 bar (about 87 psi); confirm required air volume separately

However, check these manufacturer values against this 2018 machine's equipment schedule and a test panel. Source: SCM Olimpic K360 manufacturer brochure, May 2017 (PDF).
Inspecting this SCM Olimpic K360 edgebander
First, use the serial plate to confirm the exact machine version. Then, check feed speed and the panel and edge thickness ranges. Also, confirm the pre-mill and trimming motor ratings, glue-pot setup and control version. Finally, check air supply needs, dust extraction and included tooling.
*To the best of our knowledge, these specs reflect seller details, maker information and other credible technical sources. However, the actual setup, options, size and capacity may vary by year, serial number and installed equipment. Therefore, confirm all specs and inspect the machine before purchase.

Specs
Dimensions
14.5' L x 4' W x 4.5' H approx
Weight
753 KG/ 1700 LBS APPROX

Product Description: 2018 SCM Olimpic K360 Edgebander - Nevada
Machine Location State: Nevada
Machine Location City:
Year: 2018
Make: SCM
Model: K360
Serial No: AB00005966
Phase/Voltage: 3PH/ 230 V SEE PLATE IN PHOTOS
Condition: VERY GOOD USED CONDITION
Any Known Issues: NO
In Production: YES
Software transfers with machine: Edgebander
Access to Forklift for Loading: YES
Loading Fee: NO
Shipping Dimensions: 14.5' L x 4' W x 4.5' H approx
Shipping Weight: 753 KG/ 1700 LBS APPROX
Shipping Brackets Available:
