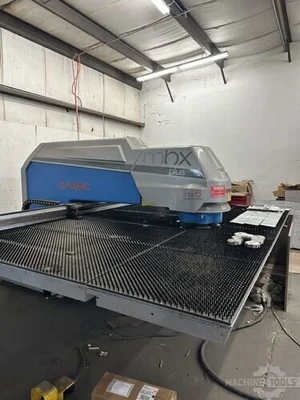

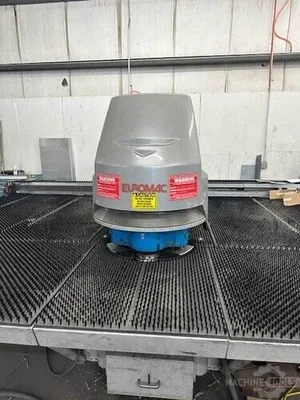

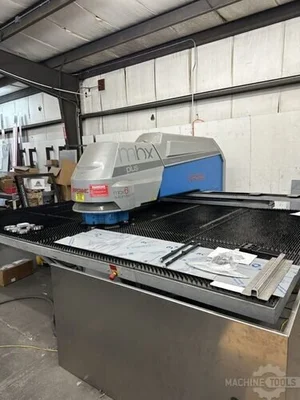

USED 2016 EUROMAC MBX 6 PLUS

Euromac MBX 6 Plus 30 Ton Multitool CNC Turret Punch

General Info

Stock #: 131260015
Location: FL
Brand: Euromac
Model: MBX 6 Plus
Year: 2016
Loading Fee: Decommissioning and Rigging Required

Specifications

Max Punching Force: 300kN
Y-Axis with Multitool/Unipunch: 1300mm / 1250mm
X-Axis with Multitool/Unipunch: 2250mm
Bidirectional Auto Index Stations: 3
Opening of Clamps: 11mm
Automatic Positioning Clamps: 2
Punching with 20mm Pitch: 300
Nibbling with 1mm Pitch: 625
Thickness Range: 0.6mm - 6mm
Max Weight: 330 lbs

Additional Info
Machine can be demonstrated upon request.
