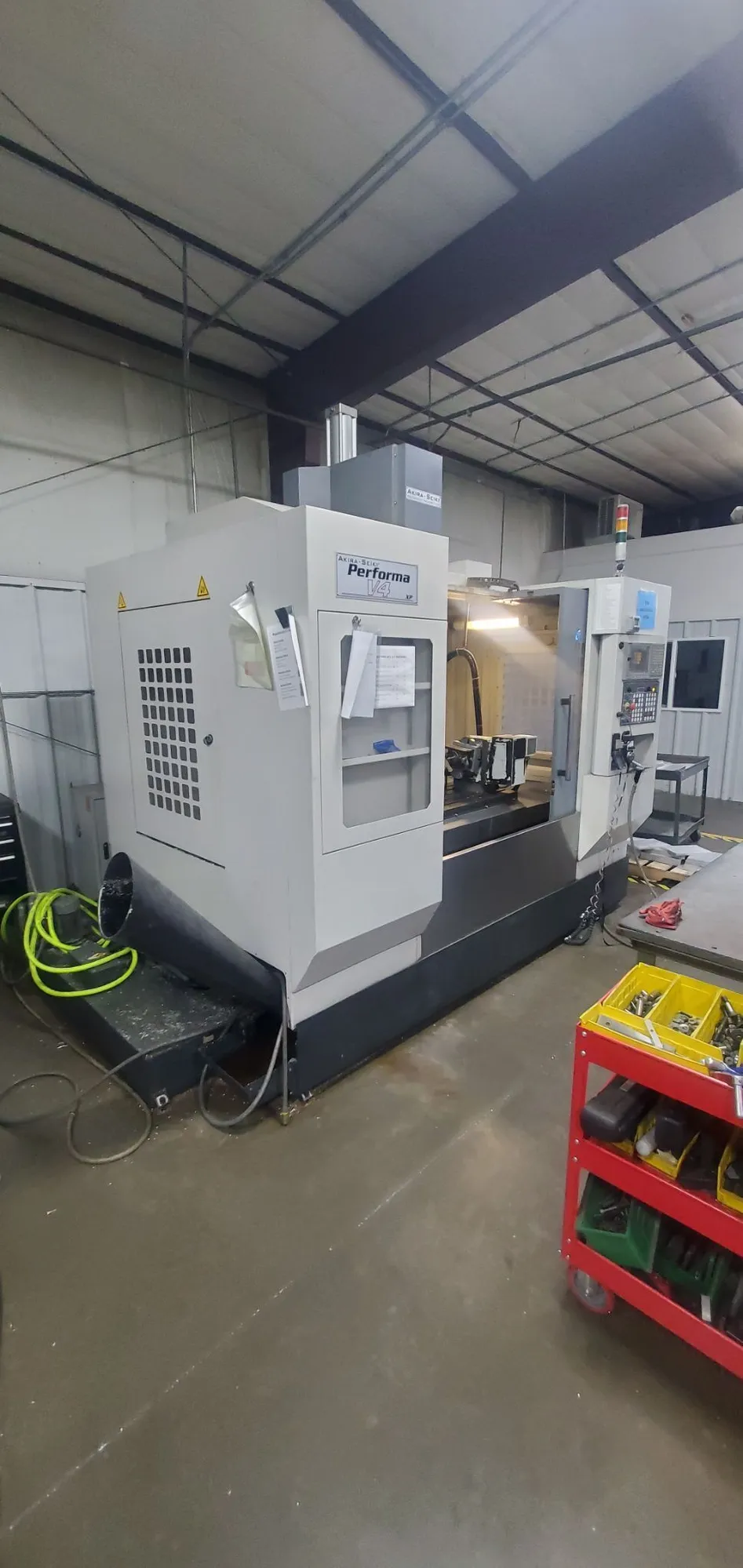

2012 Akira Seiki V4XP Vertical Machining Center with Fanuc Control (Akira Mi645), 12,000, 35 HP, 40 Taper Spindle, 28 ATC, and 4th Axis Rotary Table.
| X | 41.3" | 1,049 mm |
| Y | 19" | 482.6 mm |
| Z | 22" | 558.8 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 28 | 28 |
| Taper | 40 Taper | 40 Taper |
| Table-W | 19" | 482.6 mm |
| Table-L | 47.2" | 1,198.9 mm |
| # Axis | 4 | 4 |
| Control | CNC (Akira Mi645 Fanuc) | CNC (Akira Mi645 Fanuc) |
| Weight | 14,400 LBS | 14,400 LBS |
Table Size........................47.2" x 19"
Max. Table Load...................2592 LBS
T-Slots...........................0.7" x 3.15" x 5 Slots
Spindle Nose to Table.............3" - 25"
Spindle Center to Column Cover....21.7"
X-Axis Travel.....................41.3"
Y-Axis Travel.....................19.8"
Z-Axis Travel.....................22"
Spindle Motor.....................35 HP
Spindle Taper.....................BT-40
Spindle Speed.....................12,000 RPM
Rapid Traverse Rate...............1732/1732/984 IPM
Cutting Feed Rate.................472/472/394 IPM
Number of Tools...................28 ATC
Max. Tool Diameter................2.6"
Tool Diameter (w/o Next Tool).....5.1"
Max. Tool Length..................9.8"
Max. Tool Weight..................15 LBS
Tool Change Time..................2.2 Seconds
Machine Weight....................14,400 LBS
Akira Mi645 CNC Control
USB Drive
12,000 RPM, 40 Taper Spindle
28 ATC
4th Axis Drive & Rotary Table
Chip Auger
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
