USED PRESS TECHNOLOGY 120-WT

Manufacturer: Press Technologies
Model: 120-WT
Equipment Type: Twin Wire Wedge Thickener
Condition: Used

Description

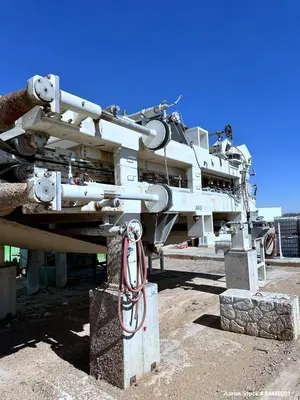

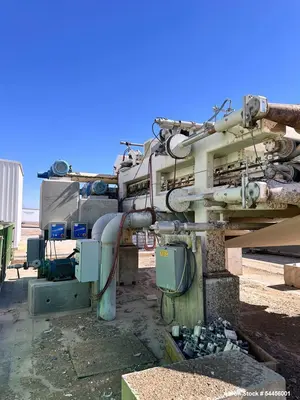

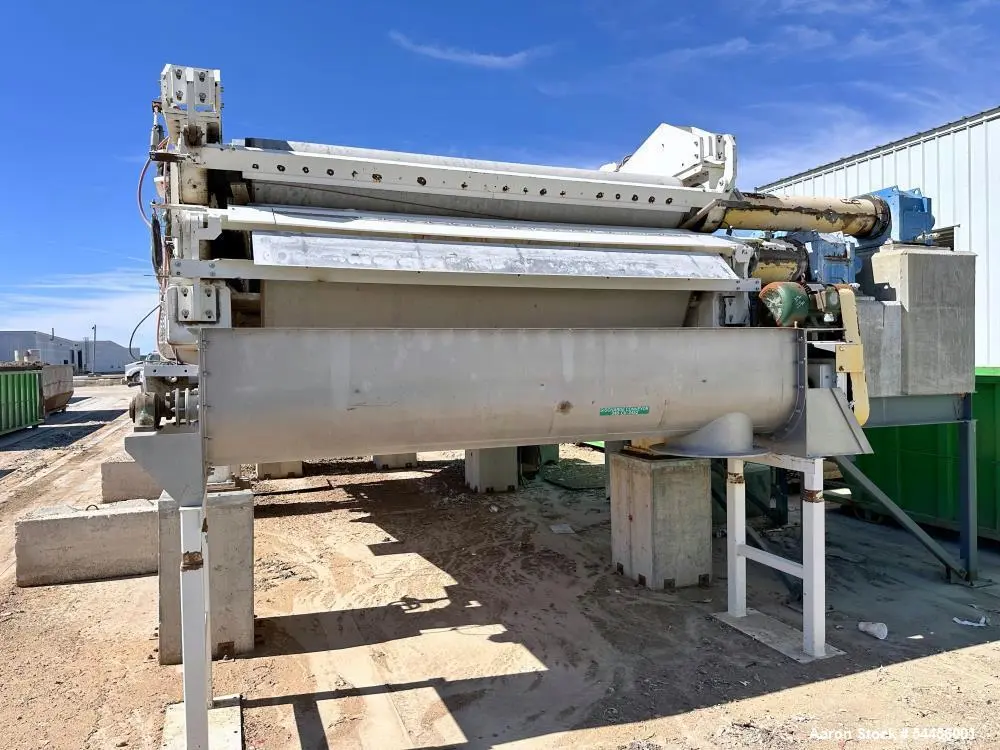

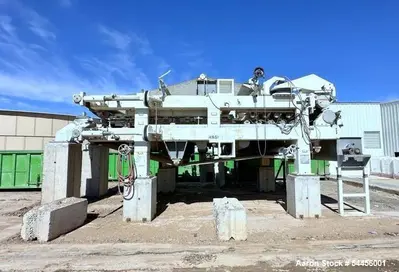

Used Press Technologies Model 120-WT twin wire wedge thickener designed for efficient sludge thickening and dewatering in industrial and municipal applications. Featuring a 10-foot wide belt, this system delivers high-capacity performance for continuous solids-liquid separation processes.
The unit is powered by dual 40 HP press drive motors and incorporates dual 12-inch filtrate drain troughs for effective liquid removal. Thickened pulp is discharged via a 25 HP screw conveyor, ensuring smooth material handling and consistent output.
This system includes all associated electrical components, transformers, pumps, motors, and valves, making it a complete, ready-to-integrate solution for wastewater treatment, pulp processing, and industrial dewatering operations.

Specifications

Manufacturer: Press Technologies
Model: 120-WT
Type: Twin wire wedge thickener
Belt Width: 10 feet
Drive System: (2) 40 HP dual press drive motors
Filtrate System: (2) 12" wide drain troughs
Discharge: 25 HP screw conveyor
Included Components: Electricals, transformers, pumps, motors, valves
Operation: Continuous sludge thickening and dewatering

Applications
Ideal for thickening and dewatering of sludge and slurry in wastewater treatment plants, pulp and paper mills, and industrial processing facilities.

Products This Equipment Would Be Used For

Municipal wastewater sludge
Industrial sludge
Pulp and paper fiber
Food processing waste solids
Agricultural waste
Chemical slurries
Mining slurry solids
Biosolids
Organic waste streams
Process residual solids
