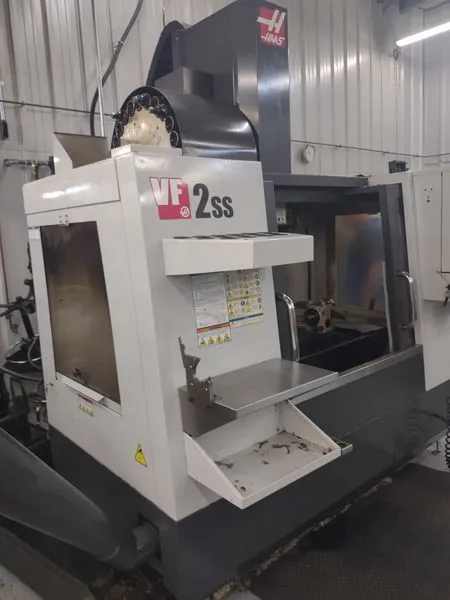

USED 2010 HAAS VF2SS

Make-HAAS

Model -VF2SS

Age-2010

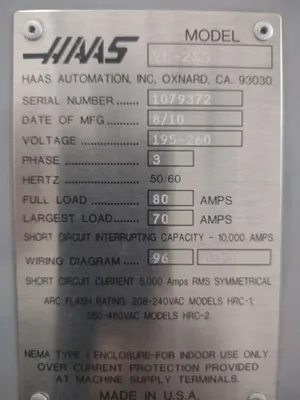

Sn# 1079372

Useage-Moderate

230/3/60 electrics

Condition-Excellent
Machine features
Probe

Thru spindle coolant system

4 axis

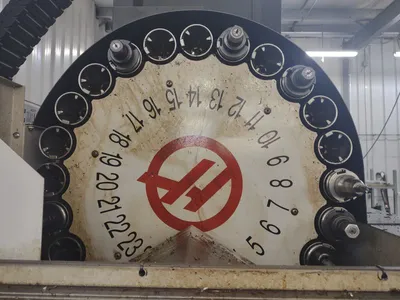

24 stat ATC

Cat 40 tooling equipped (miscellaneous tooling included)

10000 rpm
Product description
Specifications:
X Axis Travel: 30″

Y Axis Travel: 16″

Z Axis Travel: 20″

Rapid Rate X Axis: 1,400 IPM

Rapid Rate Y Axis: 1,400 IPM

Rapid Rate Z Axis: 1,400 IPM

Max Table Load: 1,500 LBS
Spindle Speed: 10,000 RPM

Spindle Taper: 40 CT

Tool Changer: 30 ATC

Max Cutting: 833 ipm

Max Weight: 1500 lb

Max Thrust X: 1995 lbf

Max Thrust Y: 1995 lbf

Max Thrust Z: 3085 lbf

Chip-to-Chip: 3.6 s

Coolant Cap: 55 gal

Amps 3 Phase 35A (High)

Table Size: 36″ x 14″

Weight: 7,800 LBS
Options:

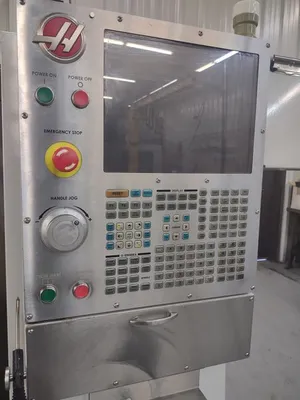

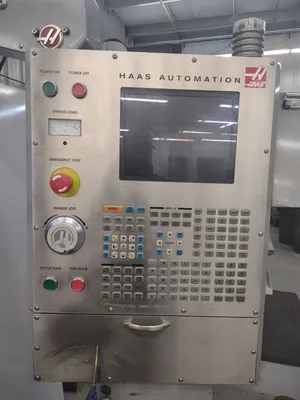

HAAS CNC Control

Programmable Coolant

Pre-wired for 4th Axis
