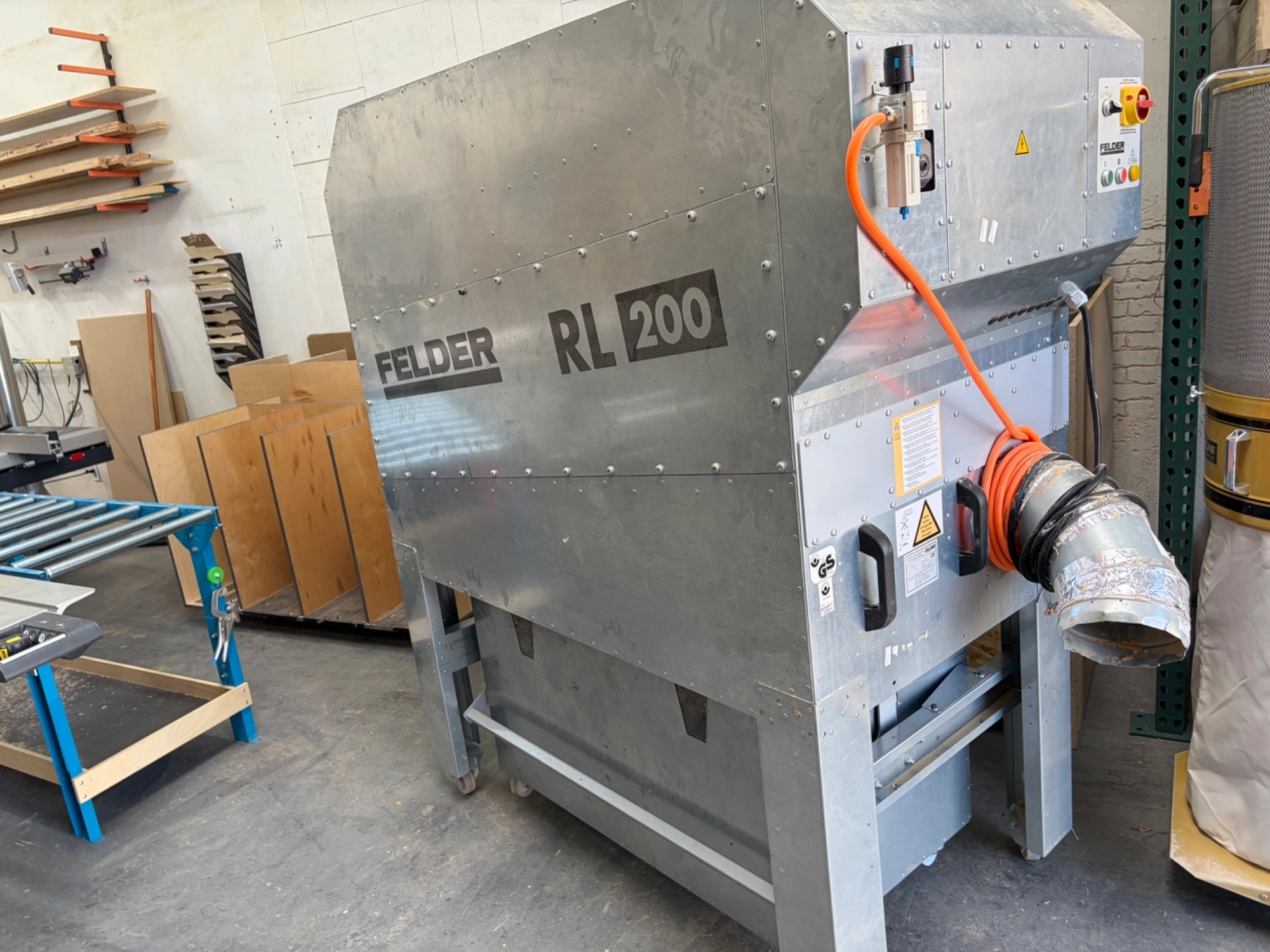

USED 2016 FELDER RL 200

Industrial Clean-Air Dust Collector – Compact, High-Performance Extraction
Located in Las Vegas, NV – Ready for Inspection or Shipping

The Felder RL 200 is a professional-grade clean-air dust extractor designed for woodworking shops that need strong suction and efficient filtration in a compact footprint. Built to H3 standards, this unit is engineered to keep airborne dust extremely low while maintaining consistent airflow.

Ideal for cabinet shops and small production environments, the RL 200 offers excellent performance with mobility and space efficiency.

✅ SPECIFICATION HIGHLIGHTS
• Model: RL 200 Clean-Air Dust Extractor
• Max airflow: 2360 CFM
• Nominal airflow: 1357 CFM
• Static pressure: 9.56 inH₂O
• Extraction port: 7” (200 mm)
• Filter surface area: approx. 2,016 sq ft
• Chip capacity: (2) 52-gallon collection bins
• Noise level: approx. 70 dB
• Motor: 4.0 kW (~5.4 HP), 3-phase

⸻

📐 TECHNICAL SUMMARY

⸻

AIRFLOW & FILTRATION

• Clean-air rating: H3 (very low residual dust levels)
• Filtration: High-efficiency cartridge filter (dust class M)
• Fan location: Clean-air side for full negative pressure system
• Residual dust: < 0.1 mg/m³

⸻

CONSTRUCTION

• Design: Fully enclosed steel cabinet
• Configuration: Mobile unit with compact footprint
• Collection: Dual-bin chip collection system
• Build: Industrial-grade European construction

⸻

APPLICATION

• Suitable materials:
 – Wood dust (up to 30% moisture)
 – Plastics, paper, cardboard
 – Non-hazardous, non-conductive dusts

• Not intended for:
 – Metals, explosive dusts, or hazardous materials

⸻

Included accessory

Automatic Start- with delayed shut off for 1-8 machines
Felder part number 02.0.340
⸻
DIMENSIONS

• Length: 6.35 ft
• Width: 2.95 ft
• Height: 6.78 ft

⸻

SERVICES

• Electrical: 3-phase, 230V (typical configuration)
• Dust port: 7” main inlet
• Designed for central or machine-specific extraction

⸻

SHIPPING / CONDITION

• Condition: Excellent
• Mobile unit – easy to position in shop
• Buyer responsible for rigging and transport
• Available for inspection

All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
