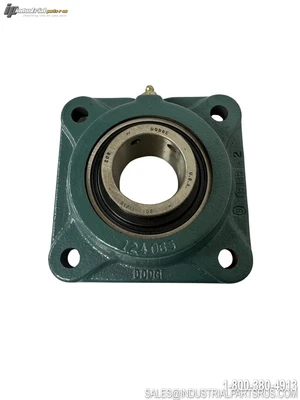

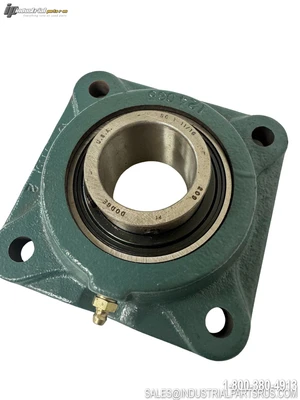

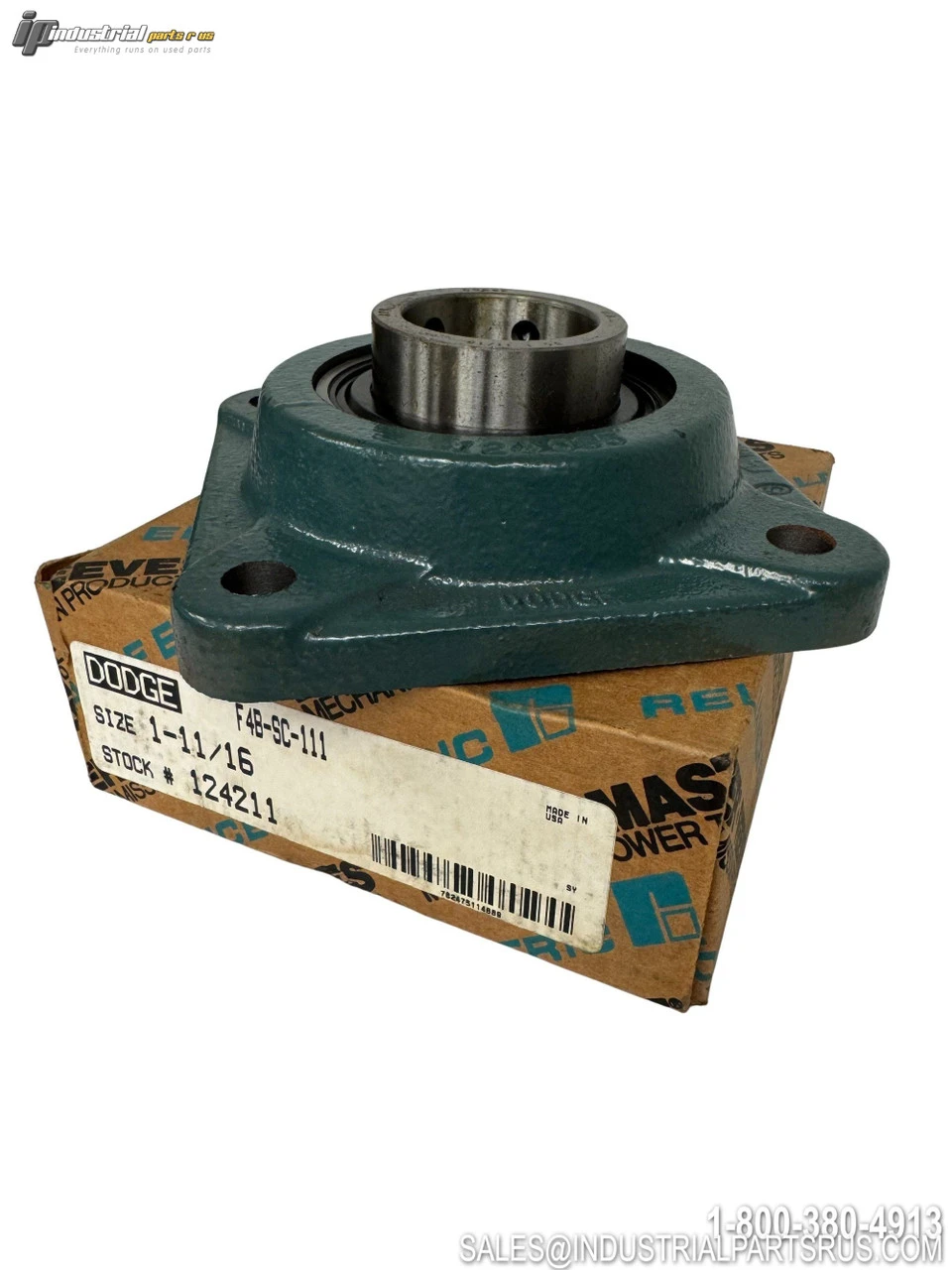

NEW DODGE F4B-SC-111

The Dodge F4B-SC-111 is a normal duty 4-bolt flange mount ball bearing unit designed for general purpose industrial applications. This bearing features a 1-11/16 inch bore with set screw locking mechanism and is part of the reliable 209 series.
Specification
Value
Brand
Dodge
Model/Part Number
F4B-SC-111
Manufacturer Part Number
124211
Bearing Series
209
Bore Diameter
1-11/16 in (1.688 in / 42.875 mm)
Housing Type
4-Bolt Square Flange
Bolt Center-to-Center
4.125 in (4.13 in / 104.78 mm)
Overall Length/Diameter
5.38 in
Overall Height
5.38 in
Overall Depth
1.99 in
Bore Length
1.719 in (43.663 mm)
Locking Device
Set Screw (65° angle)
Bearing Type
Ball Bearing
Housing Material
Cast Iron
Bearing Material
Steel
Seal Type
Single Lip Contact, Nitrile Rubber
Dynamic Load Rating
7891 lb
Static Load Rating
4906 lb
Maximum Speed
5000 rpm
Operating Temperature Range
225 to 400°F
Finish
Powder Coated
Duty Rating
Normal Duty
Expansion Type
Non-Expansion (Fixed)
Number of Mounting Holes
4
Weight
6 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI1287
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Material: 52100 Bearing Steel
Manufacturer: Dodge
Part Number: F4B-SC-111
Shelf: A-3
Bore Diameter: 1-11/16 in
Model: F4B-SC-111
MPN: F4B-SC-111
Type: Pillow Block
