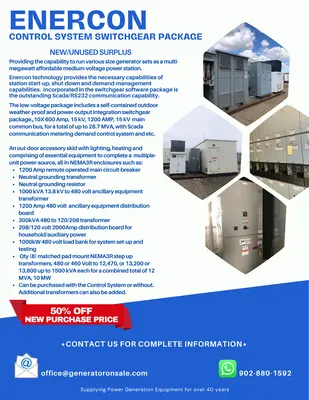

Self-contained outdoor weather-proof, power-output integration switchgear package, 10X 600 Amp, 15kV a 1200 AMP, 15kV main common bus, for a total of 28.7MVA, with Scada communication, metering demand control etc.

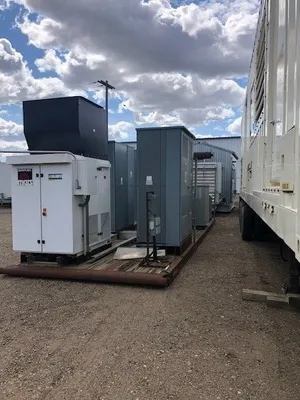

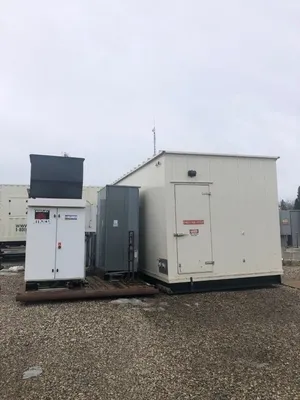

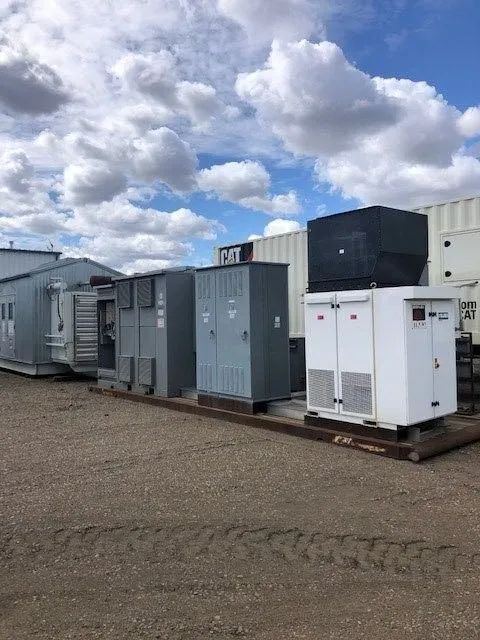

An out-door accessory skid with heating and lighting and comprising essential equipment to complete a multiple-unit power-source, all in NEMA3R enclosures such as:1200 Amp remote operated main circuit-breaker, Neutral grounding transformer, Neutral grounding resistor,
A 1000kVA 13.8kV to 480 Volt ancillary equipment transformer, A 1200Amp 480 Volt ancillary equipment distribution board, A 300kVA 480 to 120/208 transformer, A 208/120 volt 2000Amp distribution board for household/auxiliary power, A 1000kW 480 Volt load bank for system set-up and testing. Available Transformers 480 or 460 Volt to 12,470, or 13,200 or 13,800 up to 1500 kVA each (can be included if required or not)
