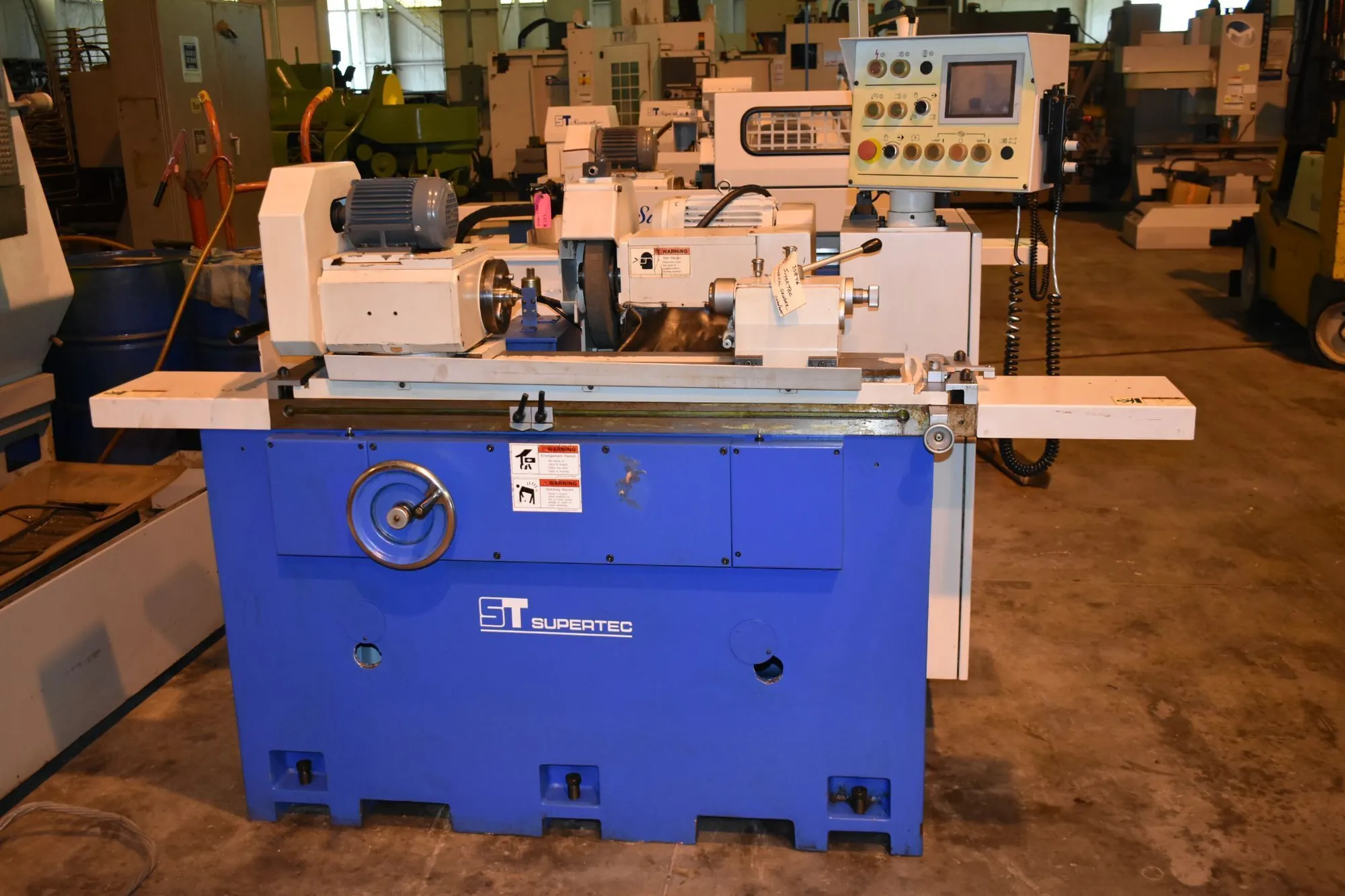

USED 2007 SUPERTEC G20P-50NC

8" X 20" SUPERTEC PRECISION PLUNGE TYPE CYLINDRICAL GRINDER
New 2007, Serial No. GB07005, Model G20P-50NC

EQUIPPED WITH:

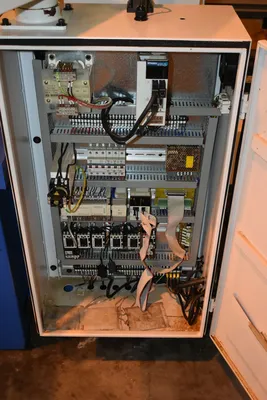

Mitsubishi PLC Control w/Hand Held Pendant

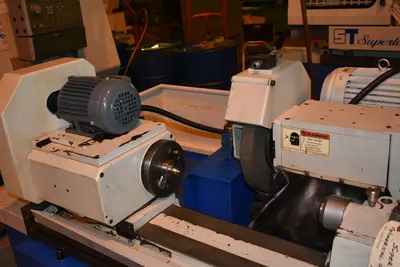

Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Caste Base
Automatic Lubrication System
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 8"
Grinding Diameter, Maximum 8"
Distance Between Centers, Maximum 20"
Weight Capacity Between Centers 308 LBS
Grinding Wheelhead X-Axis, Travel 6”
Longitudinal Table Z-Axis,Travel 24”
Grinding Wheel, Standard Diameter 14"
Grinding Wheel, Width 1.5"
Grinding Wheel, Hole Diameter 5"
Grinding Wheel Speeds 1620 & 1960 RPM
Workhead Spindle Speeds 198 to 570 RPM
Wheelhead Rapid Feedrate, Maximum 236 IPM
Longitudinal Rapid Feedrate, Maximum 316 IPM
Table Swivel Angle Range +/- 7-DEGREES
Workhead Swivel Angle, Range +/- 45-DEGREES

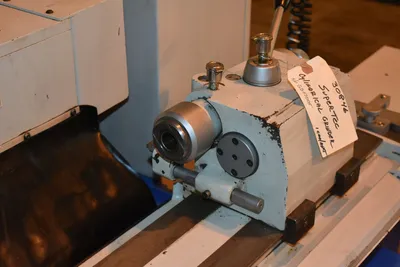

Workhead & Tailstock Spindle Taper 3 MT
Tailstock QUill Travel 1"
Wheelhead Motor, Horsepower 5 HP
Workhead Motor, Horsepower 1 HP
Hydraulic Motor, Horsepower .5 HP
Overall Dimensions, L x W 82” x 47”
Weight, Approximately 4400 LBS

F.O.B OUR WAREHOUSE
