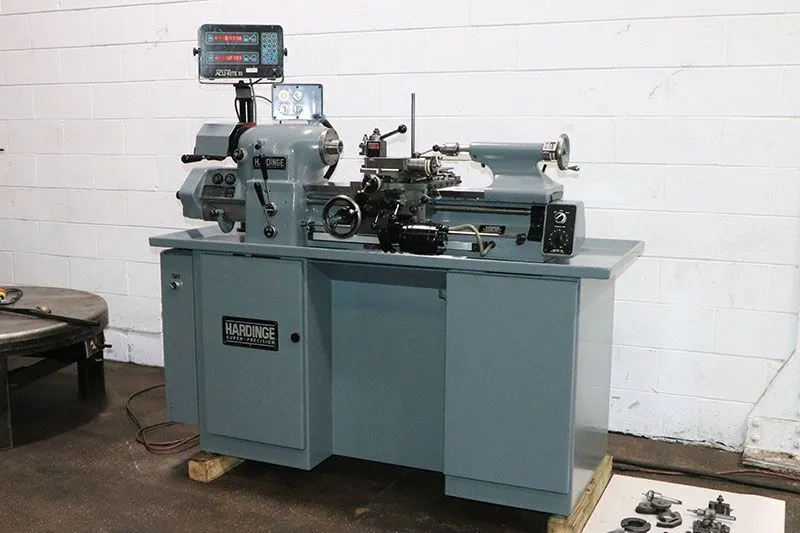

USED HARDINGE HLV-EM

Hardinge HLV-EM lathe, reconditioned in 2026, offers superb precision with 125-3,000 RPM spindle, dual gearbox for inch/metric threading, Acu-Rite digital readout, and Aloris toolpost. Wired for 230V, includes 5C collet closer, 6" 3-jaw chuck, and coolant system.

SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING
SPINDLE NOSE THREAD .................. HARDINGE TAPER
SPINDLE CAPACITY:
WITH ROUND TYPE 5C COLLETS ....... 1-1/16"
WITH STEP CHUCKS ..................... 1-1/16" TO 6"
WITH JAW CHUCKS ...................... 5"
WITH EXPANDING COLLETS ............... 3"
VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"
CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT
INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT ................... 1,700 LBS.

- REGROUND BED PLATE & NEW TURCITE UNDER CARRIAGE
- HARDINGE CROSS SLIDE REGROUND
- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING
- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK
- BALL BEARING QUICK ACTING 5C COLLET CLOSER
- ACU-RITE TWO AXIS DIGITAL READOUT
- ALORIS MODEL: AXA QUICK CHANGE TOOLPOST WITH HOLDERS
- HARDINGE 6" 3-JAW CHUCK
- JACOBS DRILL CHUCK
- SELF-CONTAINED COOLANT SYSTEM
- 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR
- WIRED FOR 230 VOLT

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION: **** SUPERB ****
