USED EXCEL XLR-SFM-100-S

SERIAL: 15101701
MODEL: XLR-SFM-100-S
YEAR: 2016

OPERATION INFORMATION:
NO. OF SUPERFINISHING HEAD (SF HEAD): 1 NO.
SPINDLE SPEED:  200 TO 1000RPM (VFD)
S.F HEAD MAIN SLIDE RAPID SPEED: 0-50 MM/SEC
S.F.HEAD MAIN SLIDE FEED SPEED: 0-15 MM/SEC
S.F.HEAD MAIN SLIDE LEAST MOVEMENT: 100 MICRONS
S.F.HEAD MAIN SLIDE STROKE: 100 MM
S.F.HEAD HORIZONTAL SLIDE SPEED: 120 MM/MIN
S.F.HEAD HORIZONTAL SLIDE STROKE: 100 MM
SF FILM FEED SPREAD: 25-125 MM/MIN
SF FILM OSCILLATION SPEED: 0-500 OSC/MIN
POLISHING TIME: 0-100 SEC
COOLANT LPM: 63 LPM

SUPERFINISHING FILM:
SUPER FINISHING FILM SIZE: WIDTH 20 MM X L 5O MTRS
SPECIFICATION: 30 UICRON
MAKE: MIPOX

FEATURES:
MANUAL LOADING/UNLOADING TYPE MACHINE
PRESENT PRECISE JOB PARAMETER SETTING AS PER PROGRAM
COLOR TOUCH SCREEN HMI
SAFTEY DOOR WITH INTERLOCK
MANUAL SETTING FACILITY FROM OPERATING PANEL
MIST COLLECTOR PROVIDED FOR COOLANT FUMES COLLECTION GENERATED DURING PROCESS
JOB HOLDING BETWEEN CENTER BY PNEUMATIC ACTUATION (CYLINDER) PROVIDE ON TAIL STOCK
MACHINE IS PLC CONTROL WITH HMI (MITSUBISHI PLC & HMI)
AUTOMATIC MICRO FINISHING SUPERFINISHING FILM FEEDING
AUTOMATIC LUBRICATION FOR SLIDE

INCLUDES:
UDLY ENGINEERS MODEL SM-600-500 SLUDGE MASTER

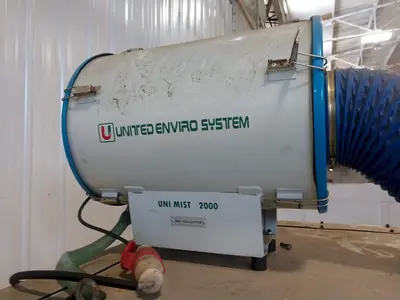

UNITED ENVIRO SYSTEM UNMIST
UDLY ENGINEERS MAGNETIC SEPARATOR

Brand
EXCEL
Type
Superfinishers
Stock No.
11863
