12' MEGA PIRANHA "PRO 2" 200-TON CNC HYDRAULIC PRESS BRAKE - Delem DA-51CNC Control w/2-Axis Back Gauge - 10" Throat - 8" Stroke - 20 HP Motor - No Pit Required
| Tonnage | 200 T | 181.437 t |
| Type | HYB | HYB |
| Overall Length | 12' | 3.7 m |
| Between Housings | 126" | 3.2 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
| Control | CNC (Dalem DA-51) | CNC (Dalem DA-51) |
| Dimensions | 156" x 84" x 109" | 156" x 84" x 109" |
| Weight | 21500 | 21500 |

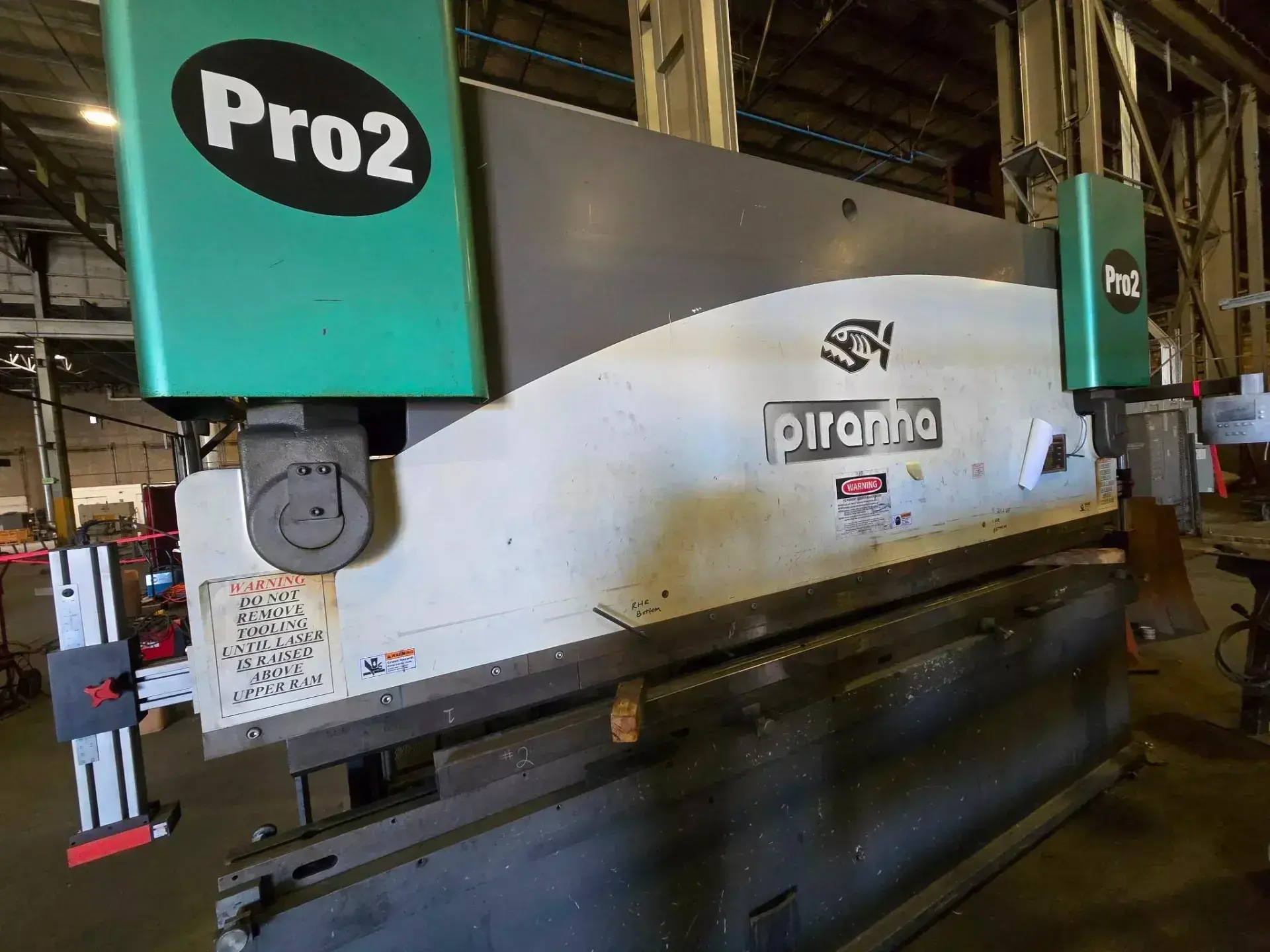

12' MEGA PIRANHA "PRO 2" 200-TON CNC
HYDRAULIC PRESS BRAKE
New 2006, Serial No 1011, Model Pro 2
EQUIPPED WITH:
Dalem DA51 CNC Controlled 2-Axis Back Gauge
Pedestal Control Stand
No Pit Required
CATALOG SPECIFICATIONS:
Tonnage Capacity 200 TON
Overall Length of Bed and Ram 12'
Distance Between Housings 10'4"
Stroke Length 8"
Open Height 14"
Closed Height 6"
Throat Depth 10"
Ram Speed. Approach 210 IPM
Ram Speed, Form 25 IPM
Ram Speed, Return 225 IPM
Motor Horsepower 20 HP
Overall Dimensions, L x D 156" x 84"
Overall Height, Above Floor 109"
Weight Approximately 21,500 LBS
F.O.B. OUR WAREHOUSE
