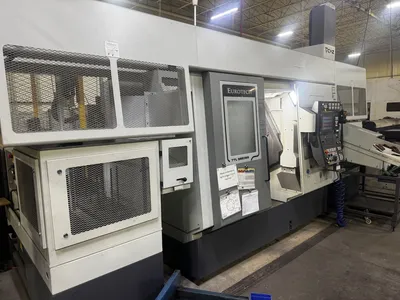

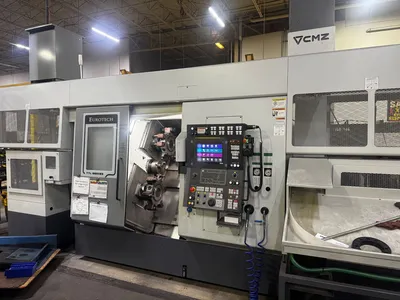

USED 2023 EUROTECH TTL-66-66-T1Y-TY2
Overview

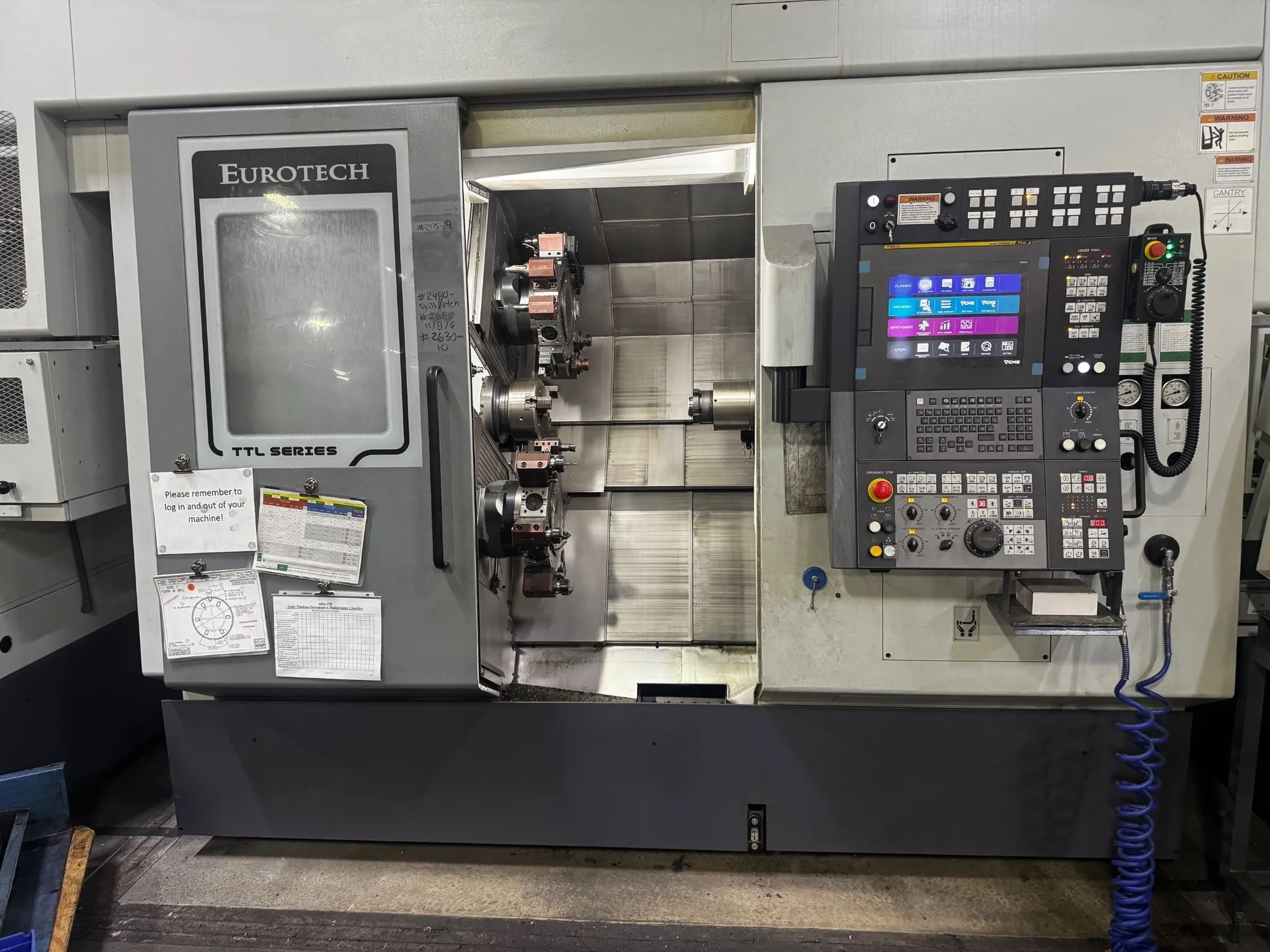

The Eurotech TTL-66-66-T1Y-T2Y is a 2023 twin-spindle CNC turning center from the CMZ TTL series, optimized for high-volume production of precision shafts and complex parts up to 66 mm bar capacity.

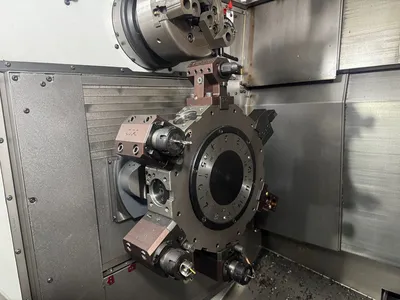

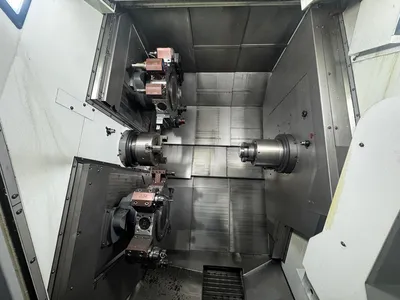

It features dual Y-axis turrets with 12 live tools each (up to 12,000 rpm), enabling simultaneous machining, overlap, and off-center operations for superior throughput.
Spindles deliver 35.5 kW/205 Nm torque at 4,000 rpm, paired with gantry automation compatibility for lights-out efficiency in job shops.
Specs
Max Turning Diameter: 240mm
Turning length: 515mm
Bar diameter: 52mm
Turning speed main spindle: 4000min-1
Chuck size main spindle: 210mm
Spindle Power:35.5kW
Turning torque(max./S6 40%):205Nm

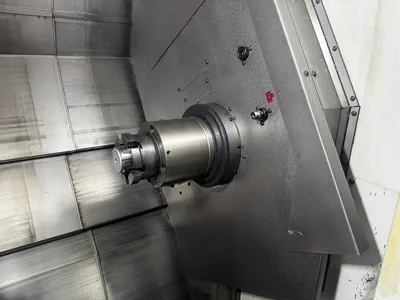

Turning speed subspindle: 4000min-1
Outside Ø bearing: 150mm
Inside Ø bearing: 100mm
Spindle Nose Mounting: ASA 6" A2
Bore diameter subspindle: 61mm
Bar diameter subspindle: 52mm
Chuck size subspindle: 210mm
Power subspindle: 35.5kW
Torque subspindle: 205Nm
Number of turrets: 2
Number of Tools: 12
Type of tooling on turret:BMT 55
Time to change tool: 0.1s
Number of rotary tools: 12
Speed of rotary tools: 12000min-1
Power: 14kW
Maximum torque:42Nm
Equipped With

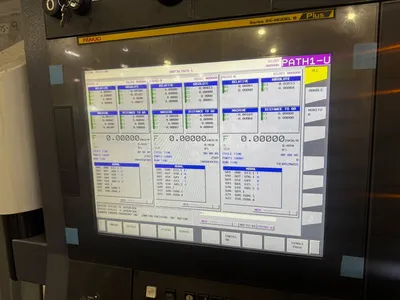

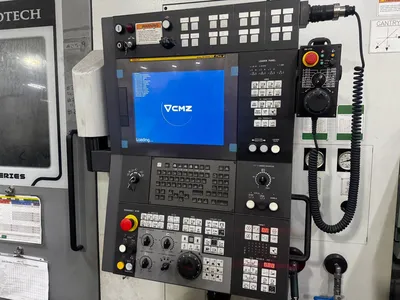

Fanuc 31iT CNC Control
15" Color Monitor

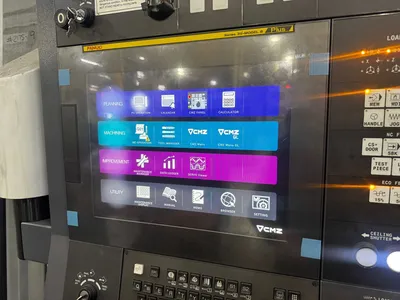

Fanuc iHMI Software
G Codes Type A in Fanuc
Coolant Through Left Spindle

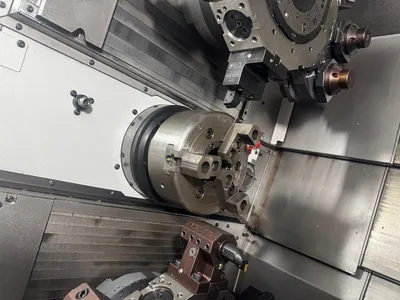

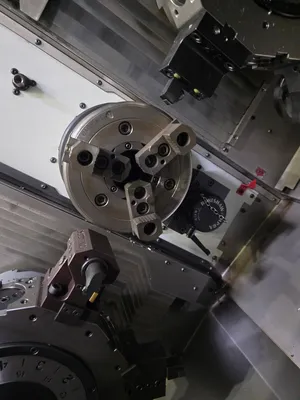

SMW-Autoblock BB-D 210 3-Jaw Chuck L/R Spindles
Removeable Tool Pre-Setter

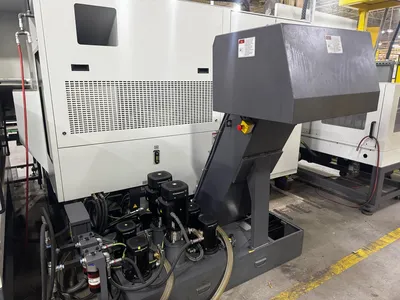

Upper Turret HP Coolant Pump (6+15 bar, 55l/min)
Lower Turret HP Coolant Pump (6+15 bar, 55l/min)

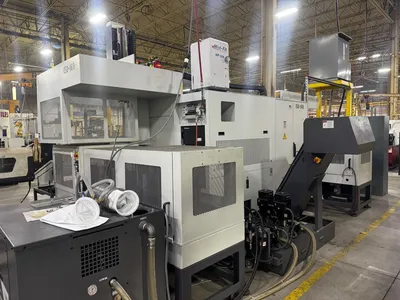

GL20-II 3-Axis CNC Gantry Loader Side Loading

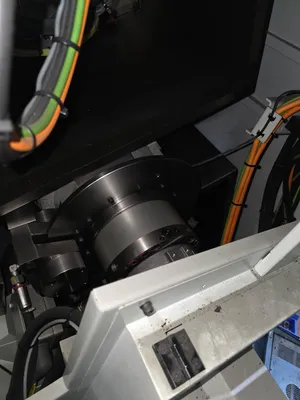

Servo 2 x 180° Dual Gripper Gantry Swivel Head
Work Stocker WS-280 x 400 x 14 (R/L Side of Machine)
Pallet with auto-centering Rods
Test Piece Chute and Table

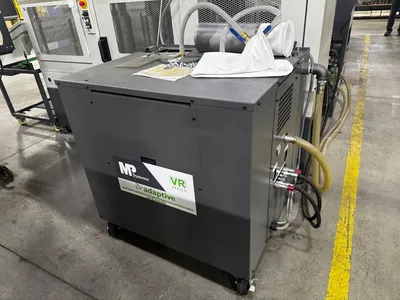

MP Systems Variable Rate HP Coolant System
Mist Collector
Transformer
Machine Status Light
Tool Life Management Function
Tool Load Monitoring Function
Barfeed Interface - Unimag
Interface for Mist Collector
Gantry Covers
