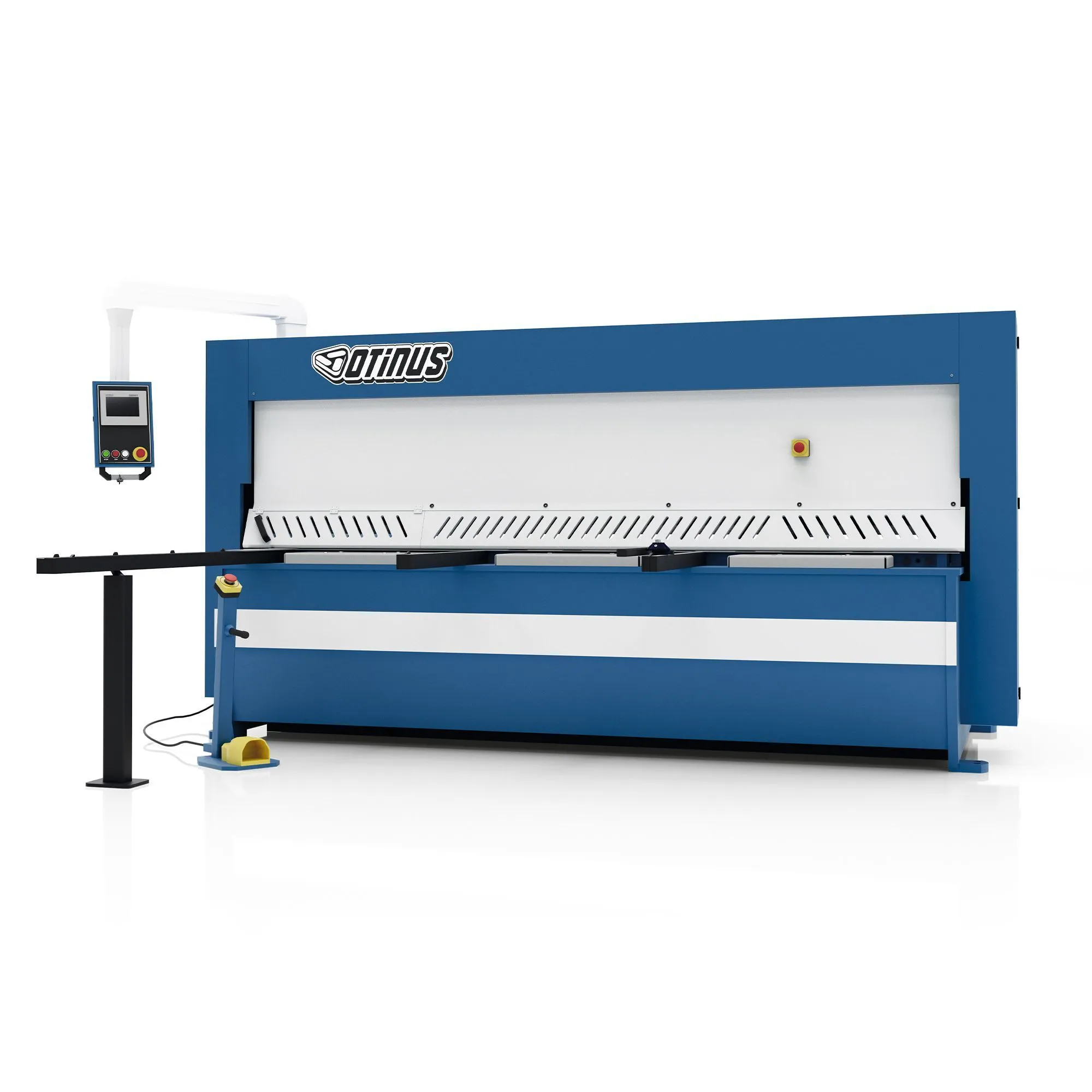

NEW OTINUS SMO-3108-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Imperial:
Capacity ≤450 N/mm2 : 8 mm
Capacity ≤750 N/mm2: 5 mm
Maximum cutting length for carbon steel: 122 in
Rake Angle 1.8 °
Motor Power:15.0 kW
Number of Holddowns: 17 pcs.
Stokes Per Minute: 13 cuts/min
Capacity of Oil Tank: 42 gal
Backgauge Range: 30 in
Backgauge Motor: 0.55 kW
Approx. Weight: 14333 lb
Dimension A: 130 in
Dimension B: 17 in
Dimension C: 57 in
Dimension D: 19 in
Dimension E: 39 in
Dimension G: 31 in
Dimension H: 65 in

Metric:
Capacity ≤450 N/mm2: 8 mm
Capacity ≤750 N/mm2: 5 mm
Maximum cutting length for carbon steel: 3305 mm
Rake Angle: 1.8 °
Motor Power: 15.0 kW
Number of Holddowns: 17 pcs.
Strokes Per Minute: 13 cuts/min
Capacity of Oil Tank: 160 l
Backgauge Range: 750 mm
Backgauge Motor: 0.55 kW
Approx. Weight: 6450.0 kg
Dimension A: 3305 mm
Dimension B: 430 mm
Dimension C: 1450 mm
Dimension D: 480 mm
Dimension E: 1000 mm
Dimension G: 800 mm
Dimension H: 1650 mm
