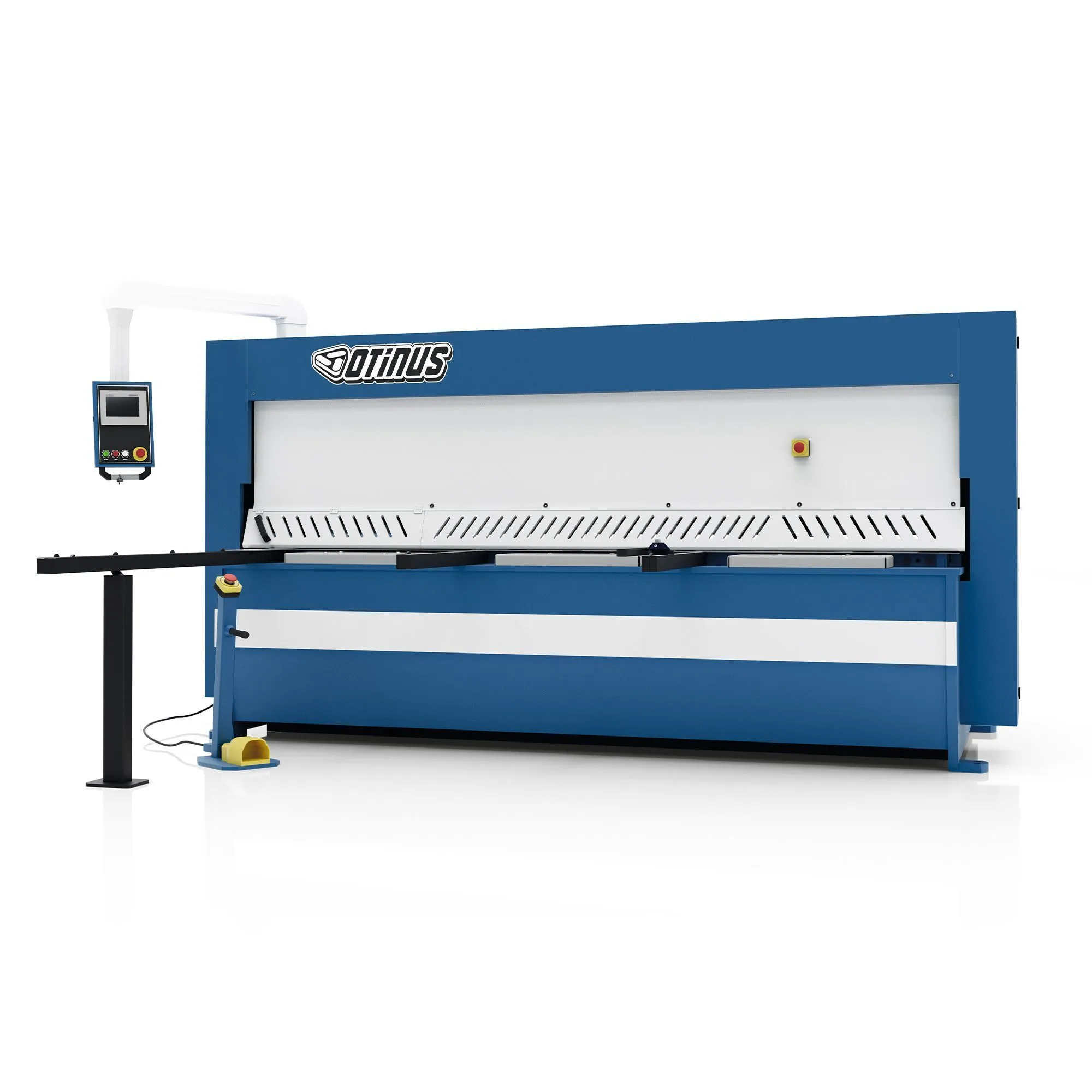

NEW OTINUS SMO-2606-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Imperial:
Capacity ≤450 N/mm2: 6 mm
Capacity ≤750 N/mm2: 4 mm
Maximum cutting length for carbon steel: 102 in
Rake Angle: 1.6 °
Motor Power: 11.0 kW
Number of Holddowns: 15 pcs.
Strokes Per Minute: 24 cuts/min
Capacity of Oil Tank: 42 gal
Backgauge Range: 30 in
Backgauge Motor: 0.55 kW
Approx. Weight: 10444 lb
Dimension A: 109 in
Dimension B: 17 in
Dimension C: 50 in
Dimension D: 19 in
Dimension E: 39 in
Dimension G: 31 in
Dimension H: 62 in

Metric:
Capacity ≤450 N/mm2: 6 mm
Capacity ≤750 N/mm2: 4 mm
Maximum cutting length for carbon steel: 2760 mm
Rake Angle: 1.6 °
Motor Power: 11.0 kW
Number of Holddowns: 15 pcs.
Strokes Per Minute: 24 cuts/min
Capacity of Oil Tank: 160 l
Backgauge Range: 750 mm
Backgauge Motor: 0.55 kW
Approx. Weight: 4700.0 kg
Dimension A: 2760 mm
Dimension B: 430 mm
Dimension C: 1260 mm
Dimension D: 480 mm
Dimension E: 1000 mm
Dimension G: 800 mm
Dimension H: 1570 mm

Imperial:
Capacity ≤450 N/mm2: 6 mm
Capacity ≤750 N/mm2: 4 mm
Maximum cutting length for carbon steel: 102 in
Rake Angle: 1.6 °
Motor Power: 11.0 kW
Number of Holddowns: 15 pcs.
Strokes Per Minute: 24 cuts/min
Capacity of Oil Tank: 42 gal
Backgauge Range: 30 in
Backgauge Motor: 0.55 kW
Approx. Weight: 10444 lb
Dimension A: 109 in
Dimension B: 17 in
Dimension C: 50 in
Dimension D: 19 in
Dimension E: 39 in
Dimension G: 31 in
Dimension H: 62 in

Metric:
Capacity ≤450 N/mm2: 6 mm
Capacity ≤750 N/mm2: 4 mm
Maximum cutting length for carbon steel: 2760 mm
Rake Angle: 1.6 °
Motor Power: 11.0 kW
Number of Holddowns: 15 pcs.
Strokes Per Minute: 24 cuts/min
Capacity of Oil Tank: 160 l
Backgauge Range: 750 mm
Backgauge Motor: 0.55 kW
Approx. Weight: 4700.0 kg
Dimension A: 2760 mm
Dimension B: 430 mm
Dimension C: 1260 mm
Dimension D: 480 mm
Dimension E: 1000 mm
Dimension G: 800 mm
Dimension H: 1570 mm
