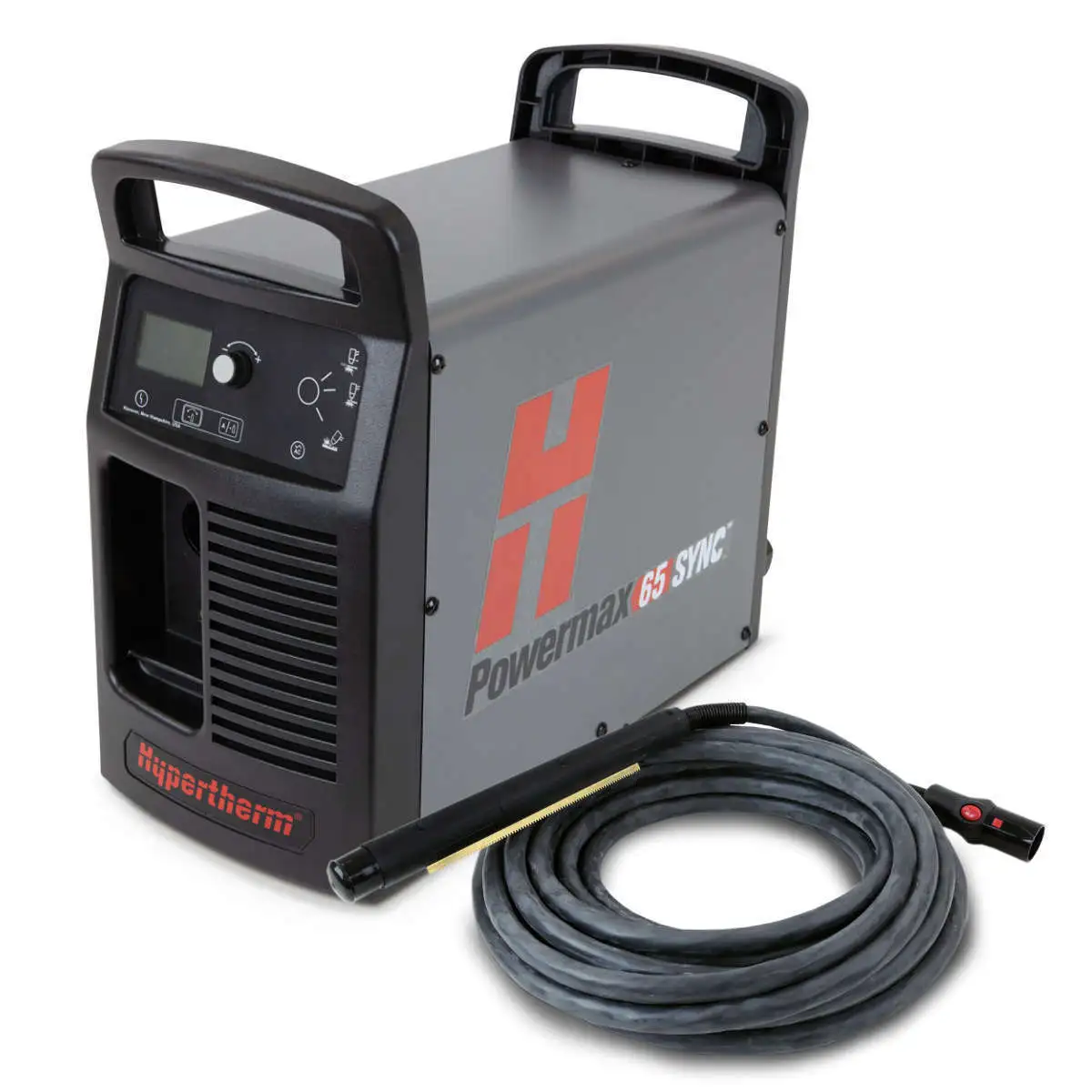

Cutting:
Capacity: Recommended
Thickness: 3/4 in
Cutting speed: 20 ipm
Capacity: Recommended
Thickness: 1 in
Cutting speed: 10 ipm
Capacity: Severance
Thickness: 1-1/4 in
Cutting speed: 5 ipm
Capacity: Pierce*
Thickness: 5/8 in
Cutting speed:
Notes:
Pierce rating for handheld use or with automatic height control
Gouging with maximum removal
Gouging: Capacity: Typical Gouge
Metal removal rate: 8.8 lbs per hour
Groove profile: 0.11 in D x 0.25 in W
Input voltages:
Single-phase: 200-480 V 1-PH 50/60 Hz
Three-phase: 200-600 V 3-PH 50/60 Hz
Kilowatt output: 9 kW
Input current: 1-PH: 200/208/240/480 V - 52/50/44/22 A @ 9 kW
3-PH: 200/208/240/480/600 V - 32/31/27/13/13 A @ 9 kW
Output current: 20-65 A
Rated output voltage: 139 VDC
Duty cycle @ 104°F:
50% @ 65 A 230-600 V 1/3-PH
40% @ 65 A 200-208 V 1/3-PH
100% @ 46 A 230-600 V 1/3-PH
Open circuit voltage (OCV): 295 VDC
Dimensions with handles: Depth: 19 in
Width: 9.2 in
Height: 17 in
Weight with 25 ft torch: 61 lbs
Gas supply: Clean dry oil-free air or nitrogen
Gas inlet pressure: Optimum: 110-120 psi
Minimum: 75 psi
Recommended inlet gas flow rate: Cutting: 450 scfh 7.5 scfm @ 85 psi
Gouging: 450 scfh 7.5 scfm @ 70 psi
Input power cable length: 10 ft
Power supply type: Inverter - IGBT
Engine drive requirement: 15 kW for full 65 A output
Certifications: CSA-certified for use in the Americas and Asia except China
Warranty: Power supply: 3-year
Torch: 1-year
