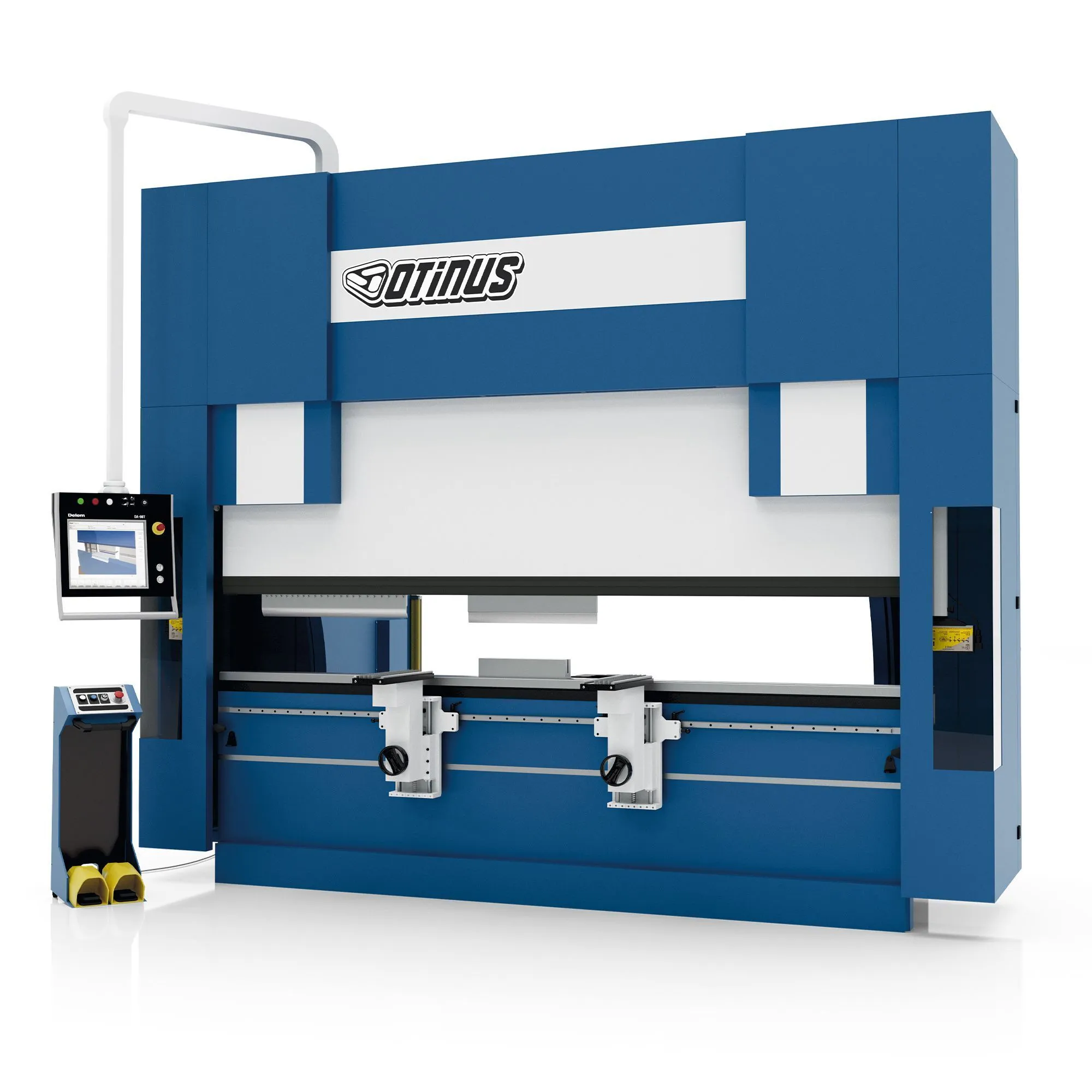

NEW OTINUS PBO-3722-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specifications
Imperial:
Tonnage: 237 t (2150 kN)
Motor Output: 15.0 kW
Approx. Weight: 26600 lb
Max Working Length [A]: 145 in
Distance Between Side Frames [B]: 126 in
Stroke [L]: 12 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 2150 kN (237 t)
Motor Output: 15.0 kW
Approx. Weight: 12000 kg
Max Working Length [A]: 3683 mm
Distance Between Side Frames [B]: 3200 mm
Stroke [L]: 310 mm
Throat Gap [N]: 410 mm

Delem DA-66T controller:
- Automatic control of 8 axes translating into more efficient bending
- Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
- Saving up to 30 upper and lower dies
- Controller with 2D/3D programing mode
- 17" TFT touch screen
- Windows with controller software (possibility to create programs on the PC)
- Crowning control managed through the controller.
- Complex Delem design
- USB that allows connecting in new devices
- Available space for connecting a bending angle sensor
- Controls and sensors prevent collisions along individual axes.

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.

Imperial:
Tonnage: 237 t (2150 kN)
Motor Output: 15.0 kW
Approx. Weight: 26600 lb
Max Working Length [A]: 145 in
Distance Between Side Frames [B]: 126 in
Stroke [L]: 12 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 2150 kN (237 t)
Motor Output: 15.0 kW
Approx. Weight: 12000 kg
Max Working Length [A]: 3683 mm
Distance Between Side Frames [B]: 3200 mm
Stroke [L]: 310 mm
Throat Gap [N]: 410 mm
