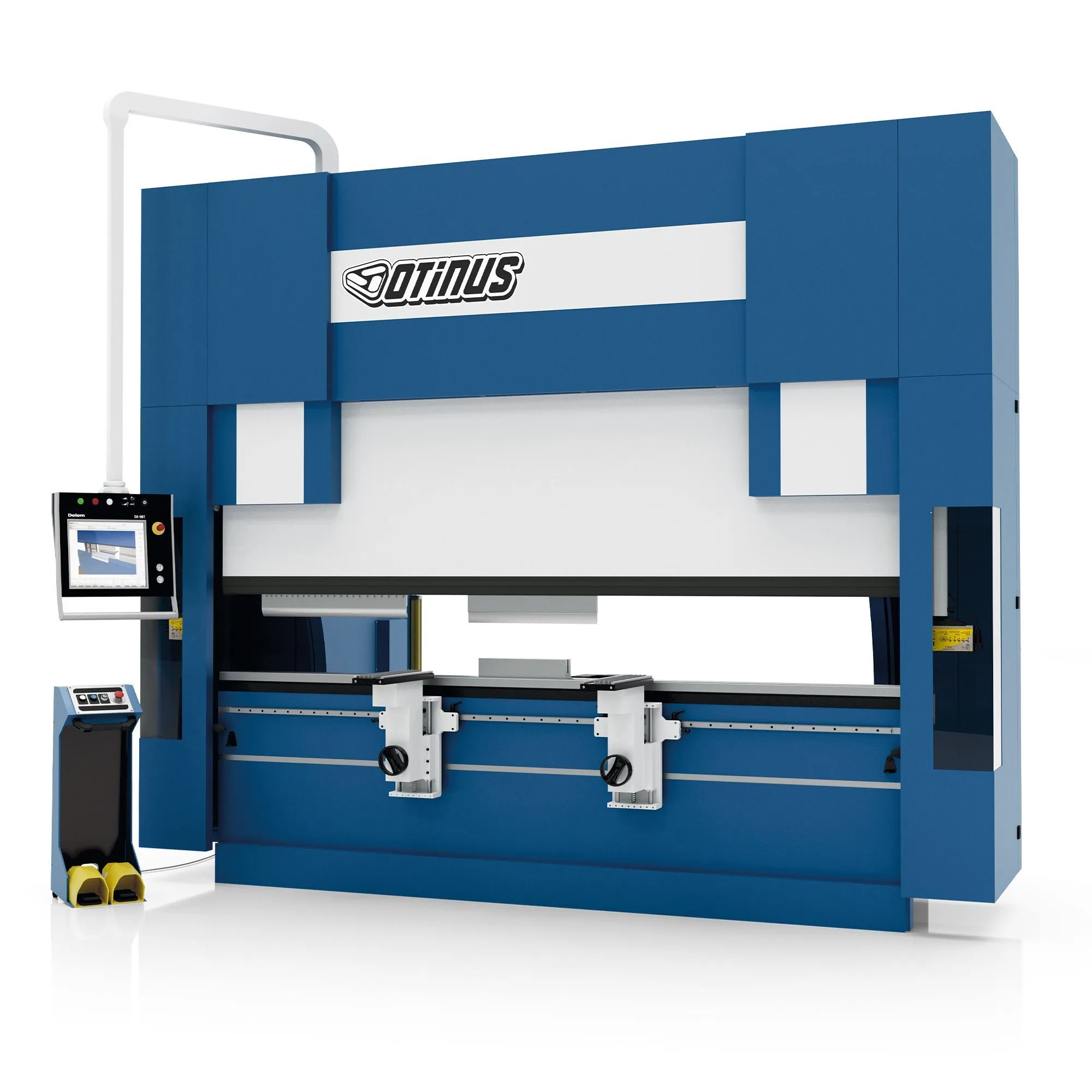

NEW OTINUS PBO-4124-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specifications
Imperial:
Tonnage: 264 t (2400 kN)
Motor Output: 22.0 kW
Oil Tank Volume: 56 gal
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 100 mm/s
Approx. Weight: 31200 lb
Inside Frames: 140 in
Max Working Length [A]: 162 in
Distance Between Side Frames [B]: 140 in
Side Frame Width [C]: 63 in
Bed Height [G]: 35 in
Daylight Opening [K]: 21 in
Stroke [L]: 10 in
Table Width [M]: 4 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 2400 kN (264 t)
Motor Output: 22.0 kW
Oil Tank Volume: 210 l
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 100 mm/s
Approx. Weight: 14000 kg
Inside Frames: 3550 mm
Max Working Length [A]: 4115 mm
Distance Between Side Frames [B]: 3550 mm
Side Frame Width [C]: 1610 mm
Bed Height [G]: 880 mm
Daylight Opening [K]: 530 mm
Stroke [L]: 260 mm
Table Width [M]: 90 mm
Throat Gap [N]: 410 mm

Delem DA-69T controller
- 2D and 3D graphical touch programming module
- 3D visualization for simulation and processing
- 17" colour TFT screen of high resolution
- Full Windows operating system
- Compatibility with the Modusys Delem system (modular scalability and adaptability)
- External USB port
- Detailed user support in a multitasking environment
- Bending using the sensors in parameter adjustment menu
- Profile-T3D offline software

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.

Imperial:
Tonnage: 264 t (2400 kN)
Motor Output: 22.0 kW
Oil Tank Volume: 56 gal
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 100 mm/s
Approx. Weight: 31200 lb
Inside Frames: 140 in
Max Working Length [A]: 162 in
Distance Between Side Frames [B]: 140 in
Side Frame Width [C]: 63 in
Bed Height [G]: 35 in
Daylight Opening [K]: 21 in
Stroke [L]: 10 in
Table Width [M]: 4 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 2400 kN (264 t)
Motor Output: 22.0 kW
Oil Tank Volume: 210 l
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 100 mm/s
Approx. Weight: 14000 kg
Inside Frames: 3550 mm
Max Working Length [A]: 4115 mm
Distance Between Side Frames [B]: 3550 mm
Side Frame Width [C]: 1610 mm
Bed Height [G]: 880 mm
Daylight Opening [K]: 530 mm
Stroke [L]: 260 mm
Table Width [M]: 90 mm
Throat Gap [N]: 410 mm
