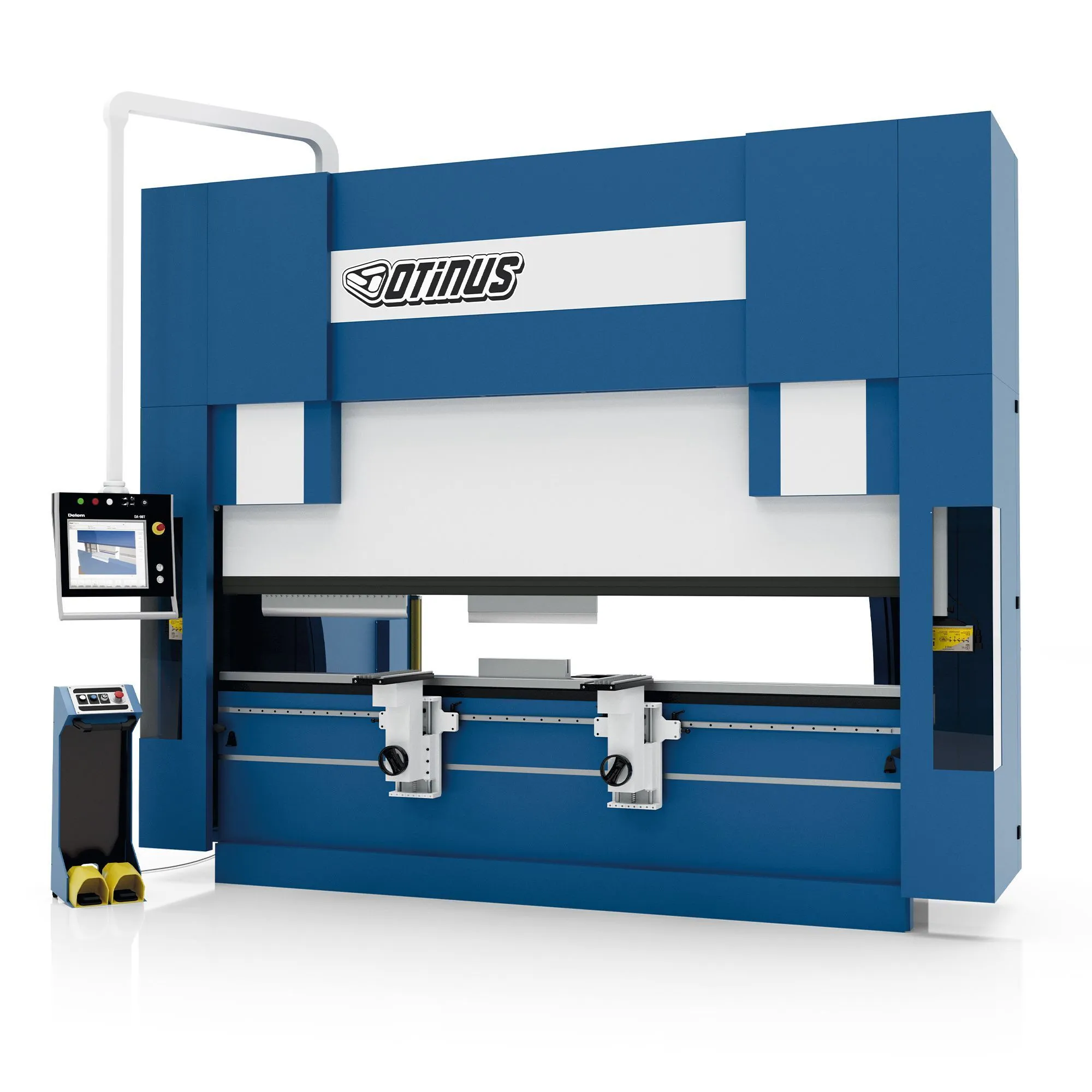

NEW OTINUS PBO-2106-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specifications
Imperial:
Tonnage: 66 t (600 kN)
Motor Output: 5.5 kW
Oil Tank Volume: 37 gal
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 12000 lb
Inside Frames: 63 in
Max Working Length [A]: 83 in
Distance Between Side Frames [B]: 63 in
Side Frame Width [C]: 62 in
Bed Height [G]: 35 in
Daylight Opening [K]: 19 in
Stroke [L]: 8 in
Table Width [M]: 2 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 600 kN (66 t)
Motor Output: 5.5 kW
Oil Tank Volume: 140 l
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 5400 kg
Inside Frames: 1600 mm
Max Working Length [A]: 2108 mm
Distance Between Side Frames [B]: 1600 mm
Side Frame Width [C]: 1580 mm
Bed Height [G]: 880 mm
Daylight Opening [K]: 475 mm
Stroke [L]: 210 mm
Table Width [M]: 60 mm
Throat Gap [N]: 410 mm

Delem DA-66T controller:
- Automatic control of 8 axes translating into more efficient bending
- Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
- Saving up to 30 upper and lower dies
- Controller with 2D/3D programing mode
- 17" TFT touch screen
- Windows with controller software (possibility to create programs on the PC)
- Crowning control managed through the controller.
- Complex Delem design
- USB that allows connecting in new devices
- Available space for connecting a bending angle sensor
- Controls and sensors prevent collisions along individual axes.

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.

Imperial:
Tonnage: 66 t (600 kN)
Motor Output: 5.5 kW
Oil Tank Volume: 37 gal
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 12000 lb
Inside Frames: 63 in
Max Working Length [A]: 83 in
Distance Between Side Frames [B]: 63 in
Side Frame Width [C]: 62 in
Bed Height [G]: 35 in
Daylight Opening [K]: 19 in
Stroke [L]: 8 in
Table Width [M]: 2 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 600 kN (66 t)
Motor Output: 5.5 kW
Oil Tank Volume: 140 l
Speed:
Approach: 150 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 5400 kg
Inside Frames: 1600 mm
Max Working Length [A]: 2108 mm
Distance Between Side Frames [B]: 1600 mm
Side Frame Width [C]: 1580 mm
Bed Height [G]: 880 mm
Daylight Opening [K]: 475 mm
Stroke [L]: 210 mm
Table Width [M]: 60 mm
Throat Gap [N]: 410 mm
