Specifications
Maximum cutting capacity for carbon steel sheets: 3/8 in
Maximum cutting length for carbon steel: 158 in
Shear angle: 1.5°
Strokes per minute: 8
Backgauge retract distance: 24 in
Nominal motor power: 15.0 kW
Length: 189 in
Width: 71 in
Height: 79 in
Weight: 22700 lb
E21S controller
(Mounted on a swivel arm on the left-hand side of the machine)
- Controllable backgauge
- Ability to store up to 40 programs, with each program accommodating up to 25 individual steps.
- Retract function
- Saving parameters with a single click
- Parameter memory backup in case of power cut

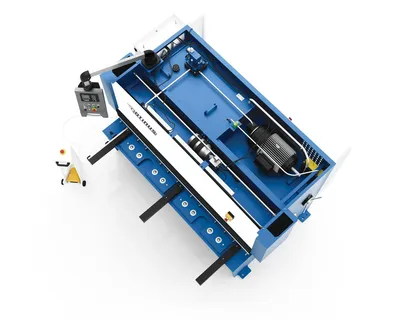

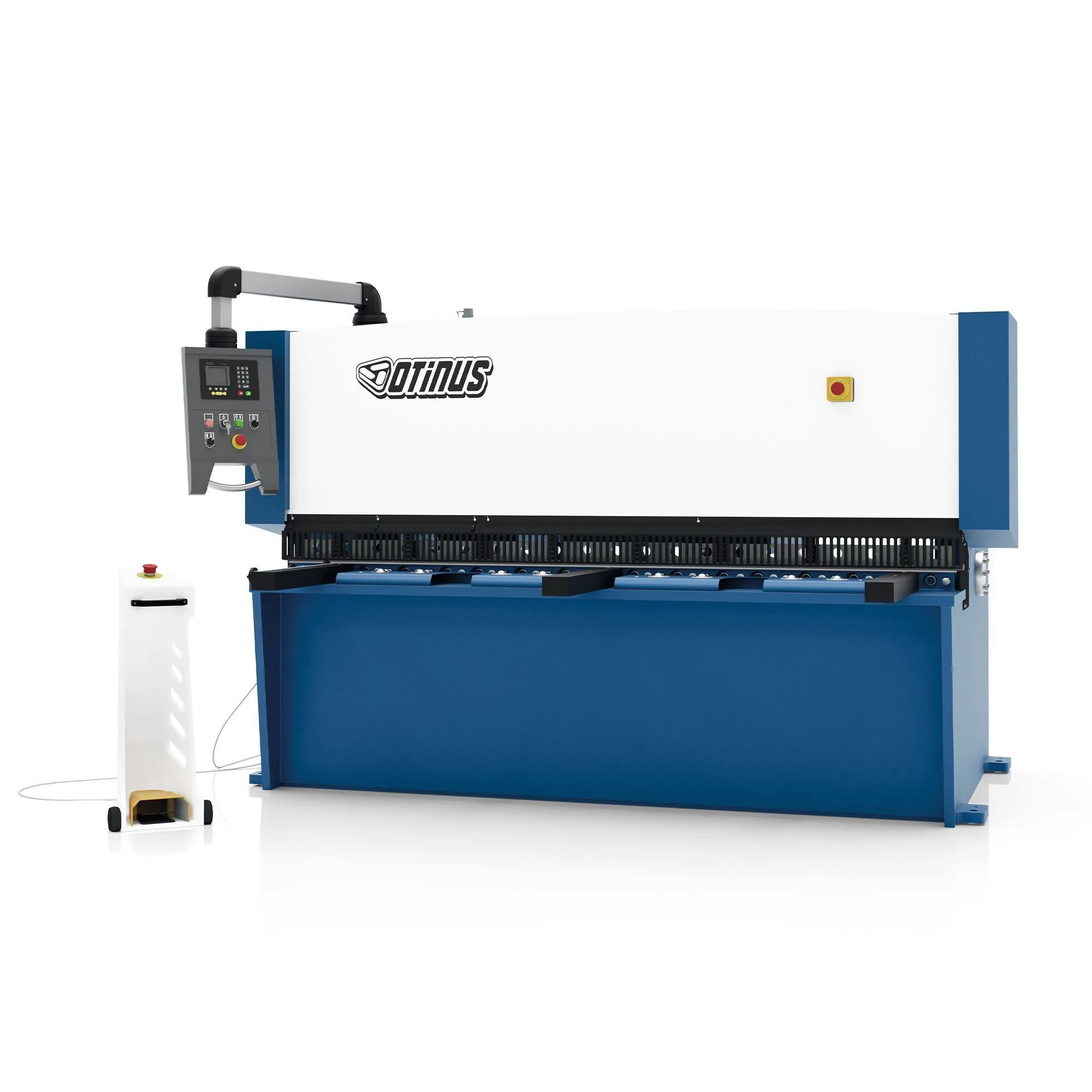

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.
