Specifications
Maximum cutting capacity for carbon steel sheets: 1/2 in
Maximum cutting length for carbon steel: 158 in
Shear angle: 2°
Strokes per minute: 8
Backgauge retract distance: 24 in
Nominal motor power: 18.5 kW
Length: 189 in
Width: 83 in
Height: 83 in
Weight: 27800 lb
E21S controller (Mounted on a swivel arm on the left-hand side of the machine)
- Controllable backgauge
- Ability to store up to 40 programs, with each program accommodating up to 25 individual steps.
- Retract function
- Saving parameters with a single click
- Parameter memory backup in case of power cut

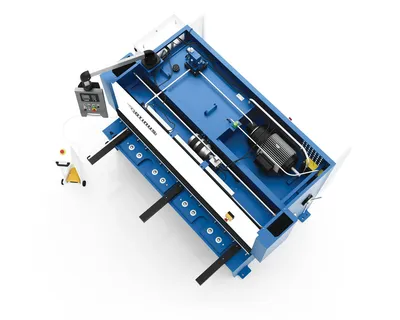

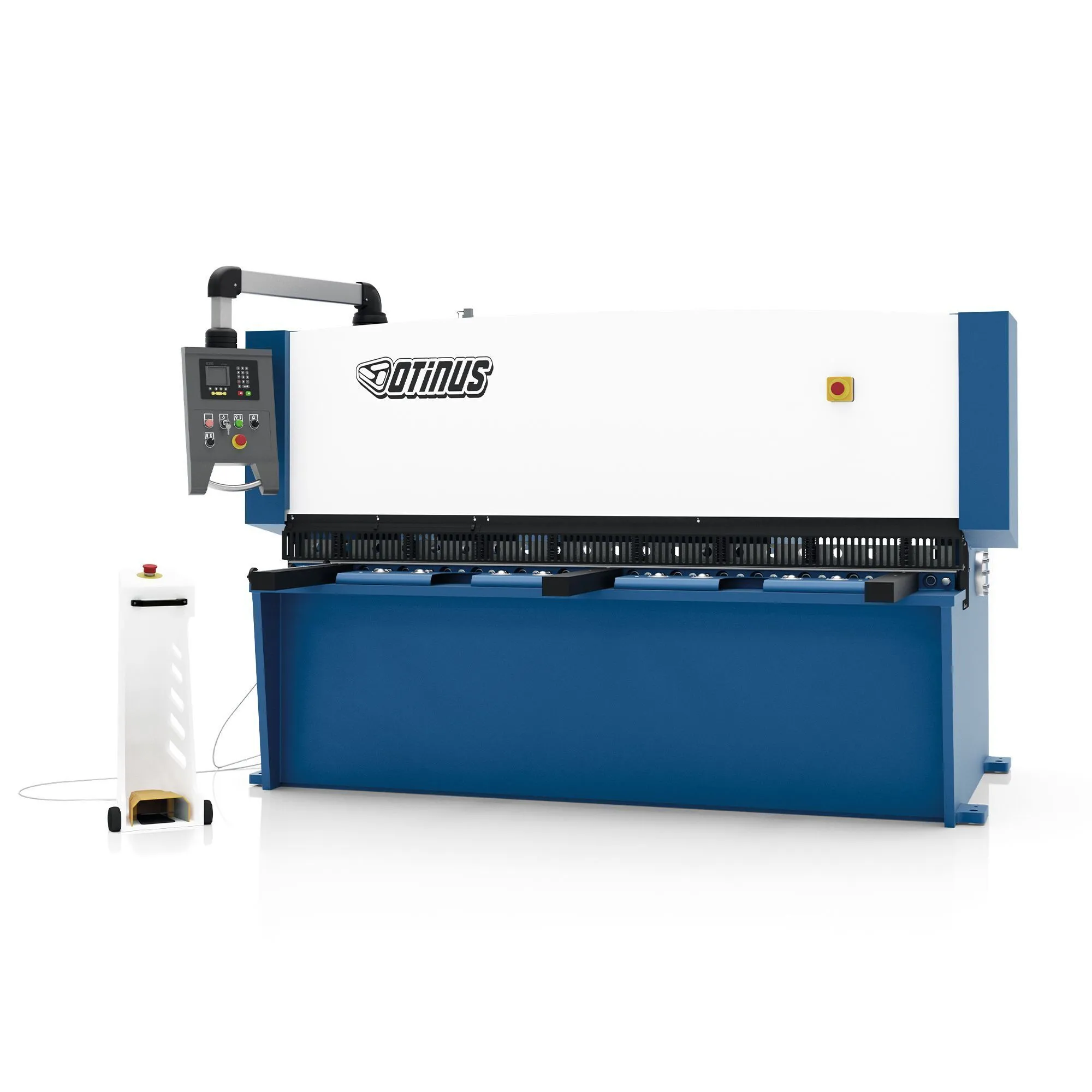

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.
Maximum cutting capacity for carbon steel sheets: 1/2 in
Maximum cutting length for carbon steel: 158 in
Shear angle: 2°
Strokes per minute: 8
Backgauge retract distance: 24 in
Nominal motor power: 18.5 kW
Length: 189 in
Width: 83 in
Height: 83 in
Weight: 27800 lb
