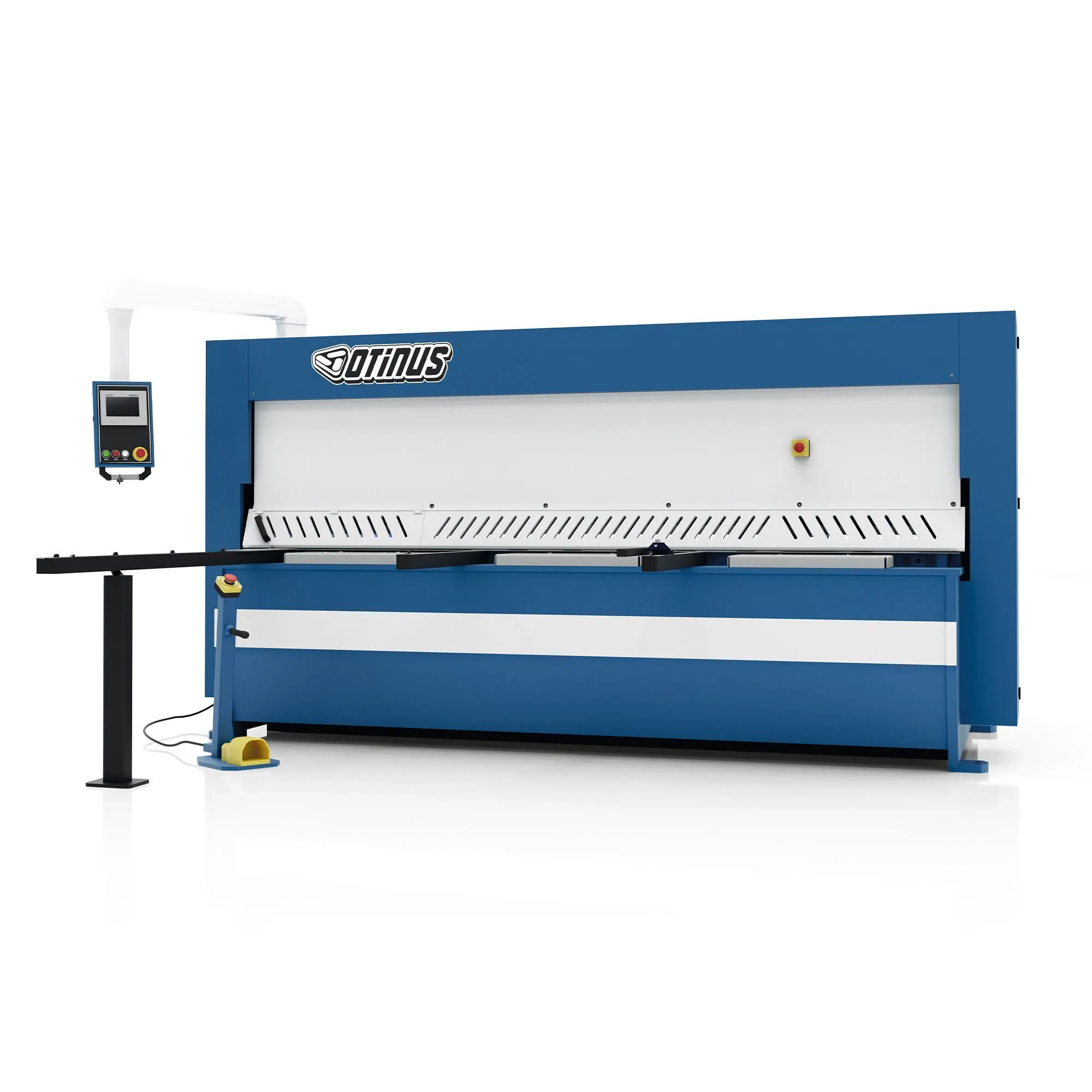

NEW OTINUS SMO-4106-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Capacity ≤450 N/mm2: 6 mm
Capacity ≤750 N/mm2: 4 mm
Maximum cutting length for carbon steel: 4305 mm / 162 in
Rake Angle: 1.2 °
Motor Power: 11.0 kW
Number of Holddowns: 23 pcs.
Strokes Per Minute: 12 cuts/min
Capacity of Oil Tank: 160 l / 42 gal
Backgauge Range: 750 mm / 30 in
Backgauge Motor: 0.55 kW
Approx. Weight: 9400.0 kg / 20889 lb
Dimension A: 4305 mm / 169 in
Dimension B: 430 mm / 17 in
Dimension C: 1560 mm / 61 in
Dimension D: 480 mm / 19 in
Dimension E: 1000 mm / 39 in
Dimension G: 800 mm / 31 in
Dimension H: 1750 mm / 69 in
